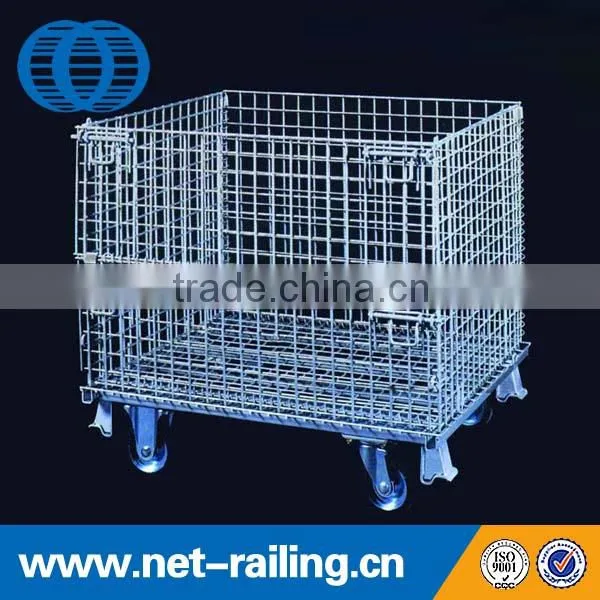

Large stack welded pallet wire mesh lockable rolling cage

Specifications

lockable rolling cage
1.MOQ:50 Pieces
2.Foldable and stackable
3.Wheels are available
4.Samples Producing

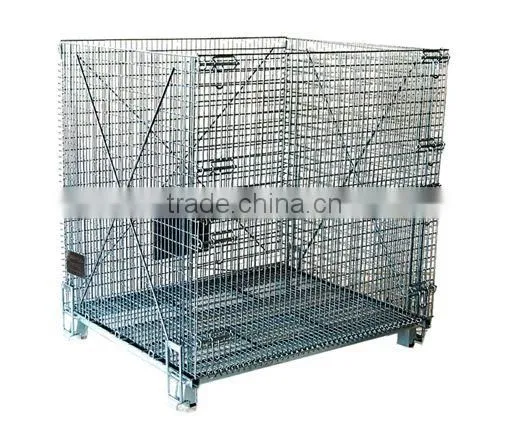

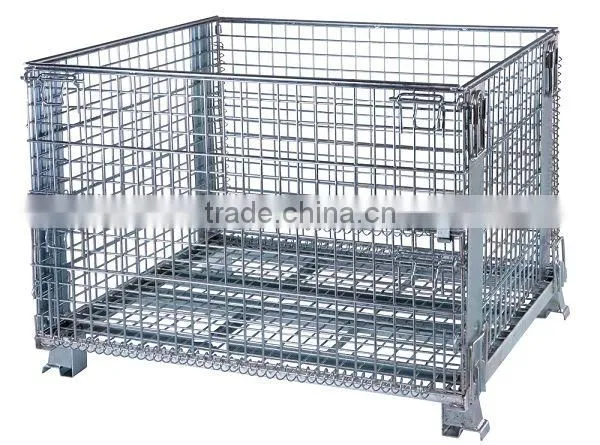

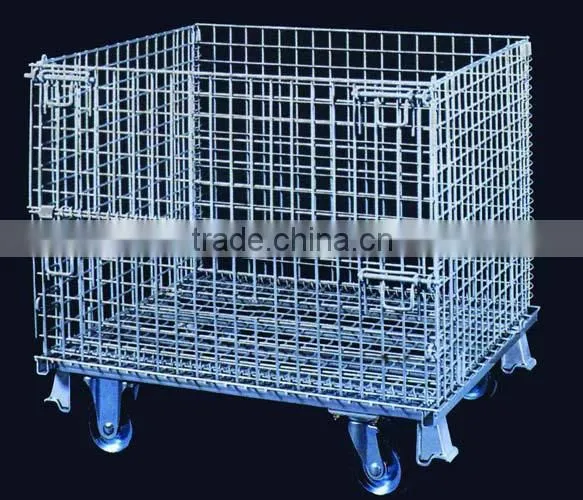

Large stack welded pallet wire mesh lockable rolling cage

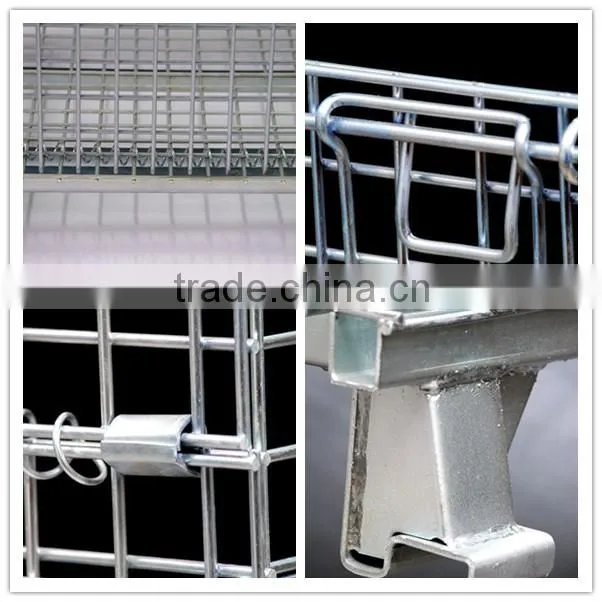

Details of lockable rolling cage

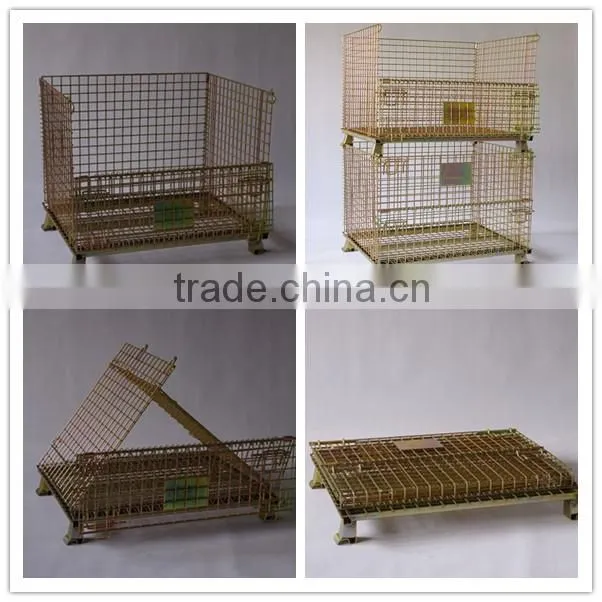

Stackable and foldable (save space when not use)

Specifications

Model	Exterior dimension	Interior dimension	Wire diameter	Mesh size	Weight	Loading capacity	Stackability	Load in 40'GP
	L*W*H mm	L*W*H mm	mm	mm	kg	kg		sets
W-1	1030X840X850	1950X760X700	Φ6	50x50	51.5	1300	3	470
W-2	1230X1040X890	1150X960X750	Φ6.2	50x50	75.5	1700	3	320
W-2-2	1230X1040X890	1150X960X750	Φ6.4	50x50	98	1700	3	154
W-10	1200X1000X1250	1170X980X1105	Φ4.8	25x50	83.65	1000	3	216

Features
1.Collapsible-save space when not in use,ideal for return journeys

2.Bright electro zinc plated finish

3.Standard half-hinged gate access

Similar Products

W2-2 Loop design,widely use in heavy industry

W-10 Mesh Size 50*100 mm

View More...





Samples Procedure

One of the biggest worries when purchasing from a Foreign supplier, especially for the first time, is that when the goods arrive - it's not what you wanted.

Our samples procedure takes away that worry completely !



Gold supplier of Alibaba for 9 years !

Exhibition  Show

Skilled and High Quality Controlled Working Process

Over 20 years metal products manufacturing experience !

Dalian Huameilong Metal Products Co.Ltd , established in 1993,one of the largest manufacturers of transportation security facilities,

material handling equipments and welded wire mesh products in North China.We have already past the ISO 9001:2000 and B&V international well-known certification.

Corporate Culture: Quality is enterprises’ life and motivation and should be guaranteed by whole workers

1, What is the material being used for your products?
---Mild steel Q235, Q195

2, How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.

3, What is the payment terms I can get?
---TT or L/C at sight, DP etc

4, What kind of finish do you provide for your goods?
---Electro galvanized ,hot dip galanized, painting or powder coating is available.

5, What is the loading capacity?
 In general, we have light duty(100~300kg) model,medium duty(400~800kg) model and heavy duty(1000~1700kg) model available for your choice.

6 Which product can be used in cold storage?
---Mobile rack,wire container and roll cage are all widely used in cold storage.

7 I like your design, but couldnt find the right model from the products list, is custom size available?
---Yes, we do custom products and projects.

8 I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.

9 I don' have drawing or picture available for th custom products, could you design it for me?
Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environment e)

10 What is the minimum quantity I can order?

---1x20'GP - qty is variable depend on the size.

11 What is your average production lead time?
---2-3 weeks against formal order and deposit.

12 Do I get any guarantee from your company?

---3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/un-stacking
B) Overloading is prohibited
C) Environment request –indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zn plated and powder coated proucts, no limitation for hot dip galvanized)
