Specifications
rigid wire containers1.MOQ:50 Pieces
2.Foldable and stackable
3.Wheels are available
4.Samples Producing

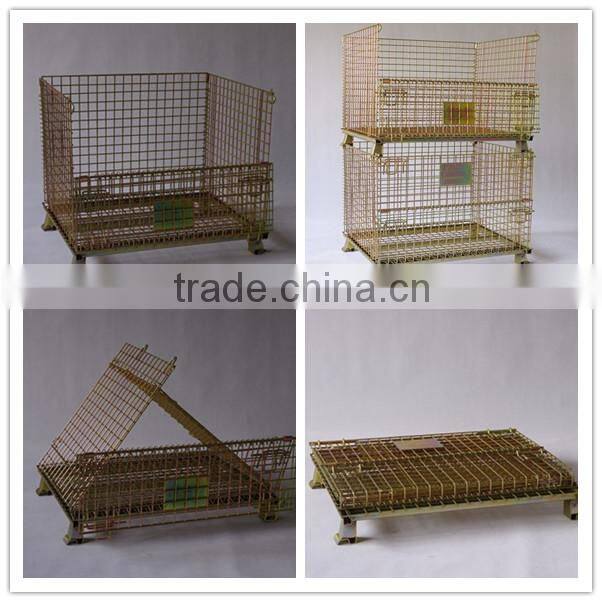

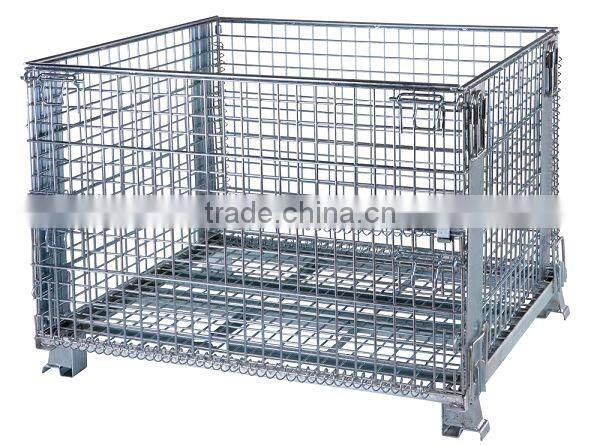

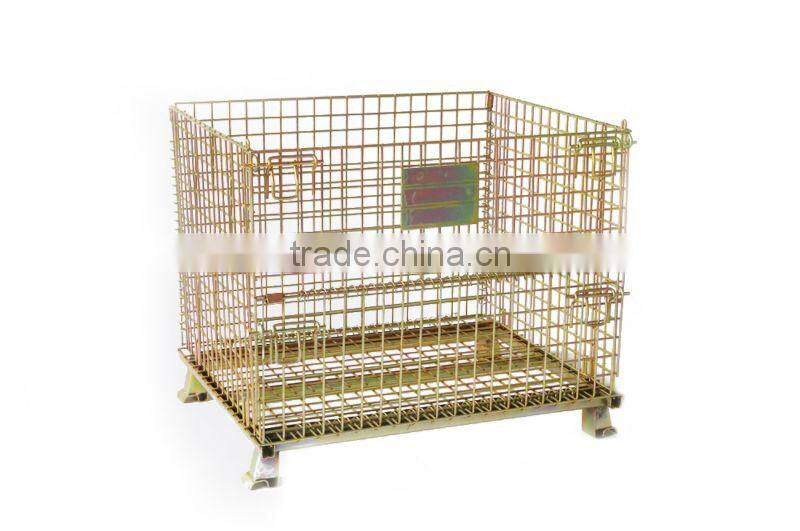

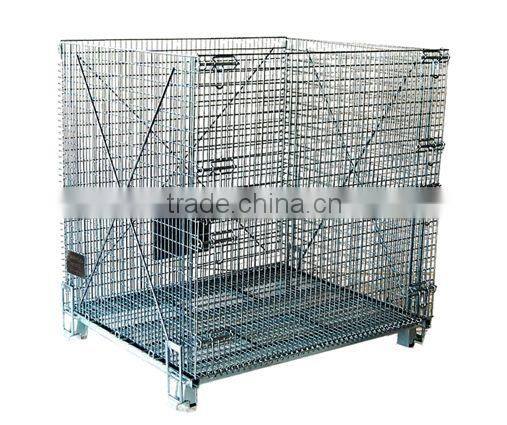

Warehouse folding metal wire mesh rigid wire containers

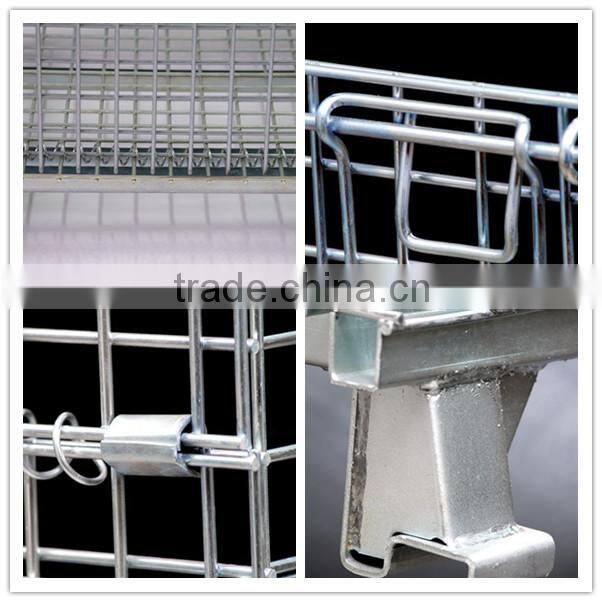

Details of rigid wire containers
Stackable and foldable (save space when not use)
Specifications
| Model | Exterior dimension | Interior dimension | Wire diameter | Mesh size | Weight | Loading capacity | Stackability | Load in 40'GP |
| L*W*H mm | L*W*H mm | mm | mm | kg | kg | sets | ||
| W-1 | 1030X840X850 | 1950X760X700 | Φ6 | 50x50 | 51.5 | 1300 | 3 | 470 |
| W-2 | 1230X1040X890 | 1150X960X750 | Φ6.2 | 50x50 | 75.5 | 1700 | 3 | 320 |
| W-2-2 | 1230X1040X890 | 1150X960X750 | Φ6.4 | 50x50 | 98 | 1700 | 3 | 154 |
| W-10 | 1200X1000X1250 | 1170X980X1105 | Φ4.8 | 25x50 | 83.65 | 1000 | 3 | 216 |
Features
1.Collapsible-save space when not in use,ideal for return journeys
2.Bright electro zinc plated finish
3.Standard half-hinged gate access
Similar Products
W2-2 Loop design,widely use in heavy industry
W-10 Mesh Size 50*100 mm
View More...
Samples Procedure
One of the biggest worries when purchasing from a Foreign supplier, especially for the first time, is that when the goods arrive - it's not what you wanted.
Our samples procedure takes away that worry completely !
Gold supplier of Alibaba for 9 years !
Exhibition Show
Skilled and High Quality Controlled Working Process
Over 20 years metal products manufacturing experience !
Dalian Huameilong Metal Products Co.Ltd , established in 1993,one of the largest manufacturers of transportation security facilities,
material handling equipments and welded wire mesh products in North China.We have already past the ISO 9001:2000 and B&V international well-known certification.
Corporate Culture: Quality is enterprises’ life and motivation and should be guaranteed by whole workers
1, What is the material being used for your products?
---Mild steel Q235, Q195

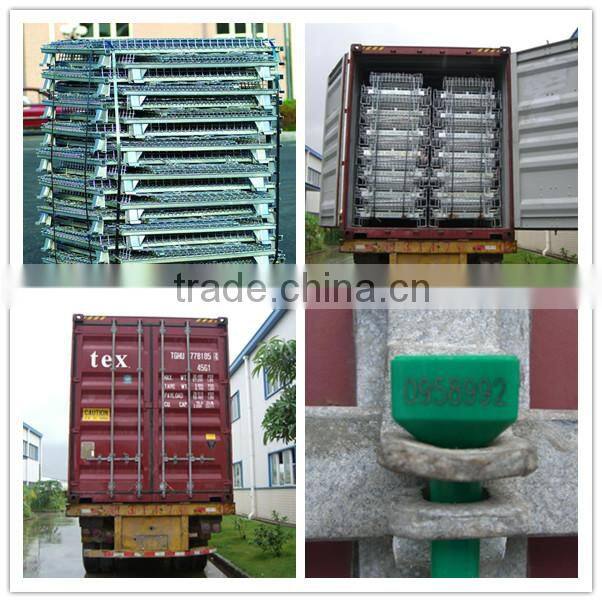

2, How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.
3, What is the payment terms I can get?
---TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
---Electro galvanized ,hot dip galanized, painting or powder coating is available.
5, What is the loading capacity?
In general, we have light duty(100~300kg) model,medium duty(400~800kg) model and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
---Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldnt find the right model from the products list, is custom size available?
---Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
9 I don' have drawing or picture available for th custom products, could you design it for me?
Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environment e)
10 What is the minimum quantity I can order?
---1x20'GP - qty is variable depend on the size.
11 What is your average production lead time?
---2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
---3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/un-stacking
B) Overloading is prohibited
C) Environment request –indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zn plated and powder coated proucts, no limitation for hot dip galvanized)
