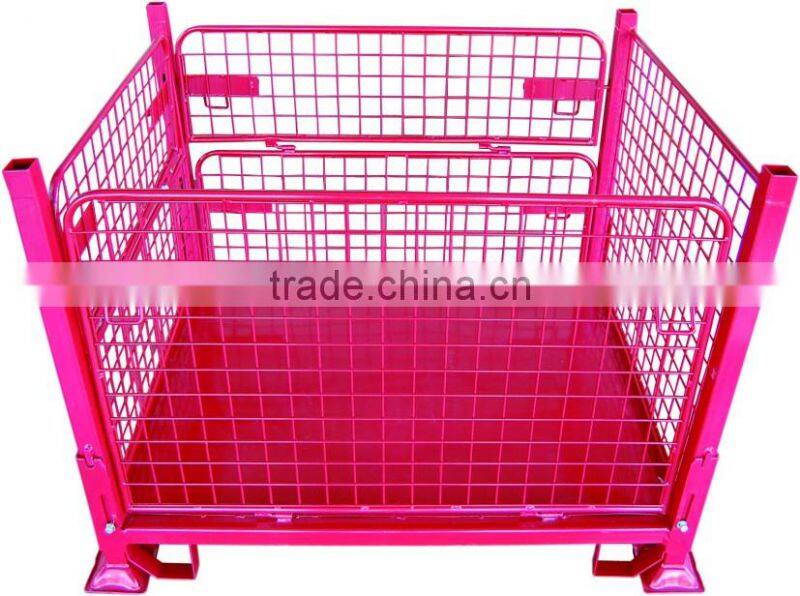

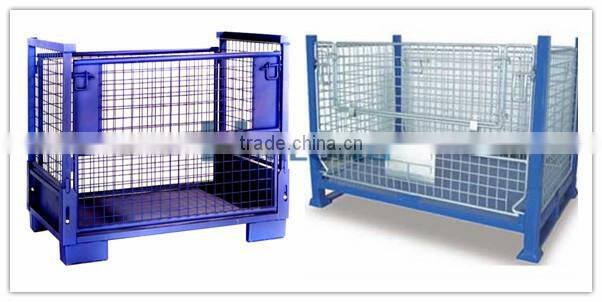

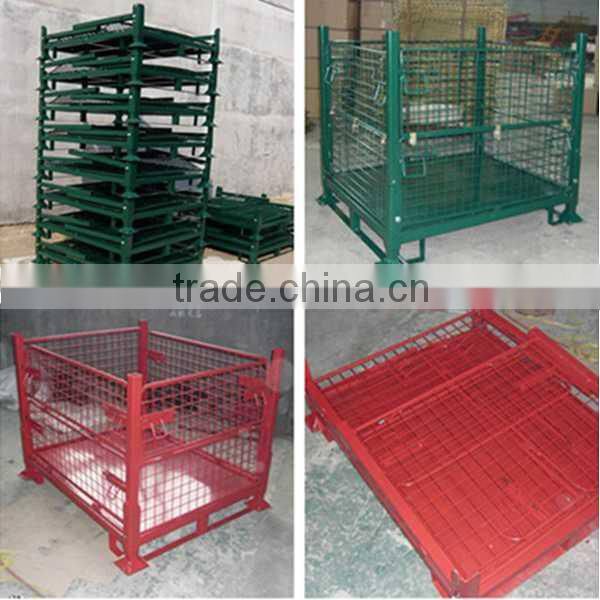

Industrial welded stackable metal pallet size steel container

Specifications

metal pallet size steel container
1.MOQ:50 Pieces
2.Foldable and stackable
3.Wheels are available
4.Samples Producing

 Industrial welded stackable metal pallet size steel container



Details of the metal pallet size steel container

Specifications

Model No.	Exterior dimension	Interior dimension	Wire Guage	Dimension of Grid	Loading Capacity	Loaded in 1x 40' HQ Container
	LxWxH(mm)	LxWxH(mm)	mm	mm	kg
F-4	1183x1145x1000	1080x1100x850	10-5.0	50*100	1000	160

Main Features

1 Collapsible-save space when not in use,ideal for return journeys

2 Bright electro zinc plated finish

3 Standard half-hinged gate access

4 Long lasting,economical alternative to disposable packing

5 Open wire mesh design allows for full visibility for inventory  checks,ventilation and cleaness.

6 Four-way entry for easy use with lift trucks

7 Application:widely used in agricultural,electronic equipment

Similar products

Other F series wire mesh cage of our company





Samples Procedure

One of the biggest worries when purchasing from a Foreign supplier, especially for the first time, is that when the goods arrive - it's not what you wanted.

Our samples procedure takes away that worry completely !

Exhibition  Show

Skilled and High Quality Controlled Working Process

Dalian Huameilong Metal Products Co.Ltd , established in 1993,one of the largest manufacturers of transportation security facilities,material handling

equipments and welded wire mesh products in North China.We have already past the ISO 9001:2000 and B&V international well-known certification.

Corporate Culture: Quality is enterprises’ life and motivation and should be guaranteed by whole workers

1, What is the material being used for your products?
---Mild steel Q235, Q195

2, How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.

3, What is the payment terms I can get?
---TT or L/C at sight, DP etc

4, What kind of finish do you provide for your goods?
---Electro galvanized ,hot dip galanized, painting or powder coating is available.

5, What is the loading capacity?
--- In general, we have light duty(100~300kg) model,medium duty(400~800kg) model and heavy duty(1000~1700kg) model available for your choice.

6 Which product can be used in cold storage?
---Mobile rack,wire container and roll cage are all widely used in cold storage.

7 I like your design, but couldnt find the right model from the products list, is custom size available?
---Yes, we do custom products and projects.

8 I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.

9 I don' have drawing or picture available for th custom products, could you design it for me?
---Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environment e)

10 What is the minimum quantity I can order?

---1x20'GP - qty is variable depend on the size.

11 What is your average production lead time?
---2-3 weeks against formal order and deposit.

12 Do I get any guarantee from your company?

---3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/un-stacking
B) Overloading is prohibited
C) Environment request –indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zn plated and powder coated proucts, no limitation for hot dip galvanized)
