Specifications
Wire Metal Storage Containers1.MOQ:50 Pieces
2.Foldable and stackable
3.Best products for logistics

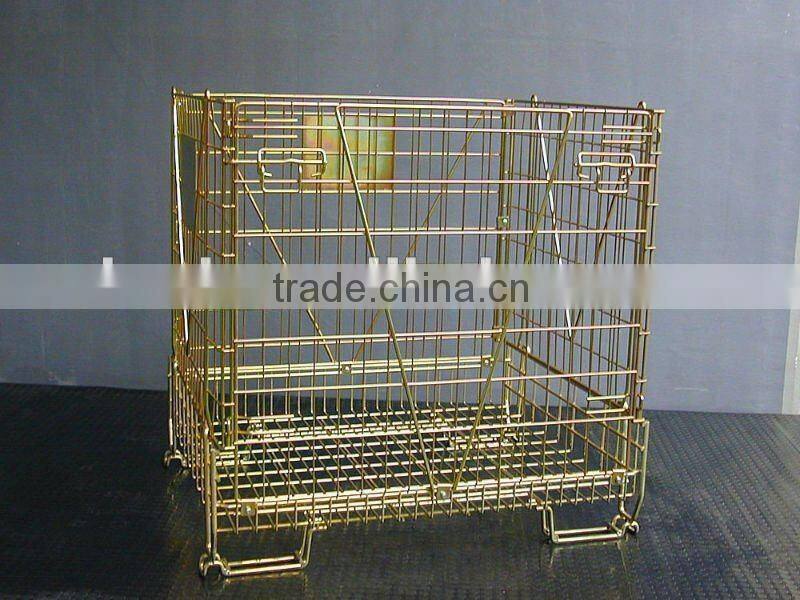

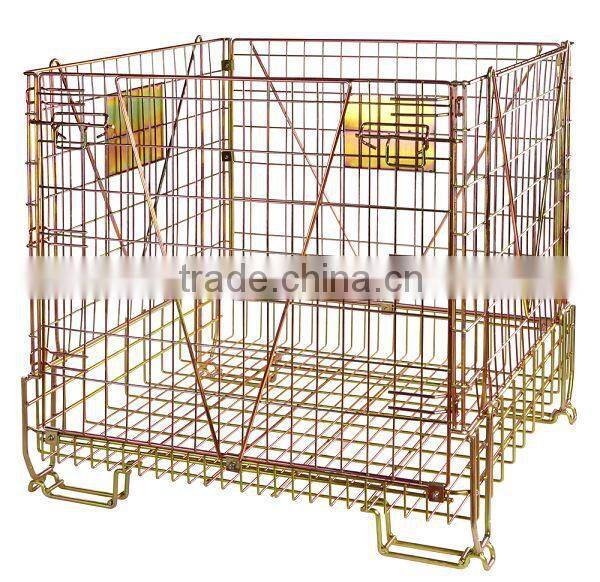

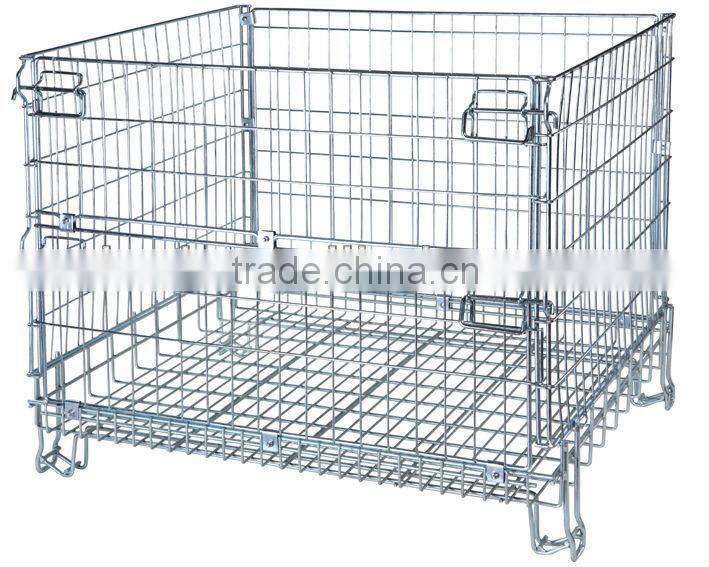

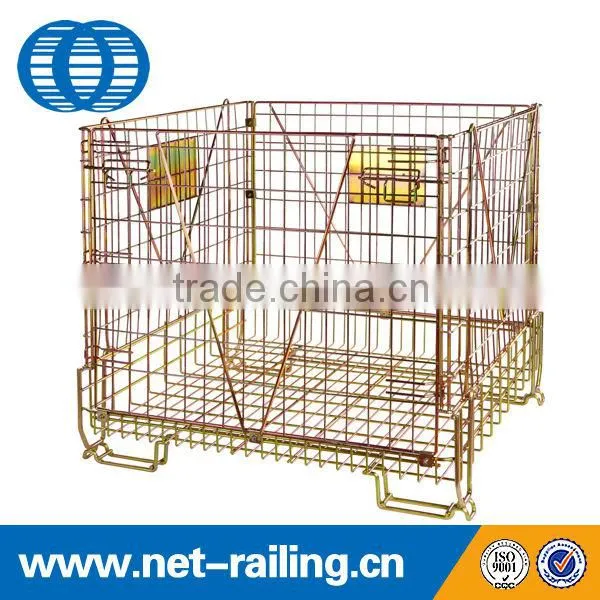

PET preforms Industrial foldable storage metal wire container

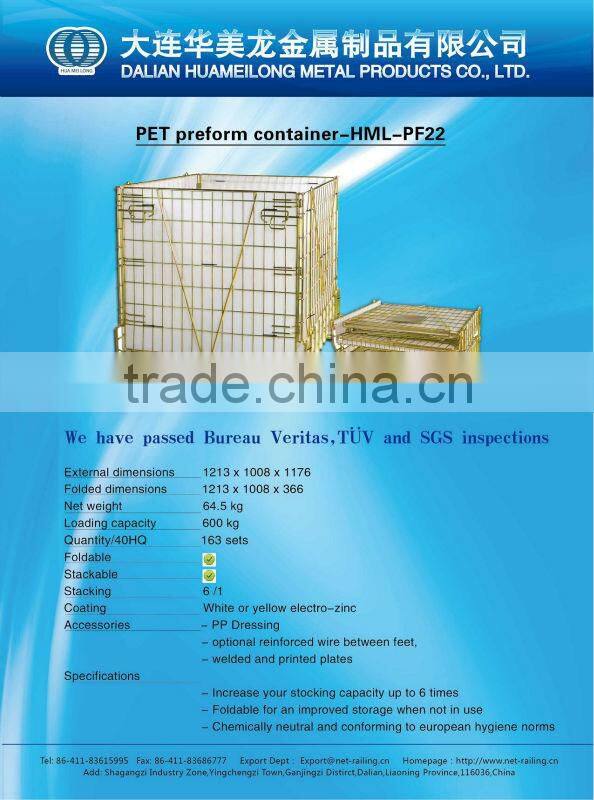

Specifications
| Model | F-22 |
| Exterior dimension | 1213X1008X1174mm(LxWxH) |
| Interior dimension | 1175X965X1020mm(LxWxH) |
| Wire diameter | Φ4.8~12mm |
| Mesh size | 62x125mm |
| volume | 1.16cbm |
| Loading capacity | 400kg |
| Stackability | 6 high |
| Load in 40'HQ | 168 |
| Finish | Electro zinc plated/hot dip/powder coating |
Main Feature
1.Collapsible-save space when not in use, ideal for return journeys
2.Bright electro zinc plated after welding for rust-free life
3.Standard half-hinged gate access
4.Open wire mesh design allows for full visibility for inventory checks, ventilation and cleanliness.
5.Four- way entry for easy use with lift truks.
Similar Products

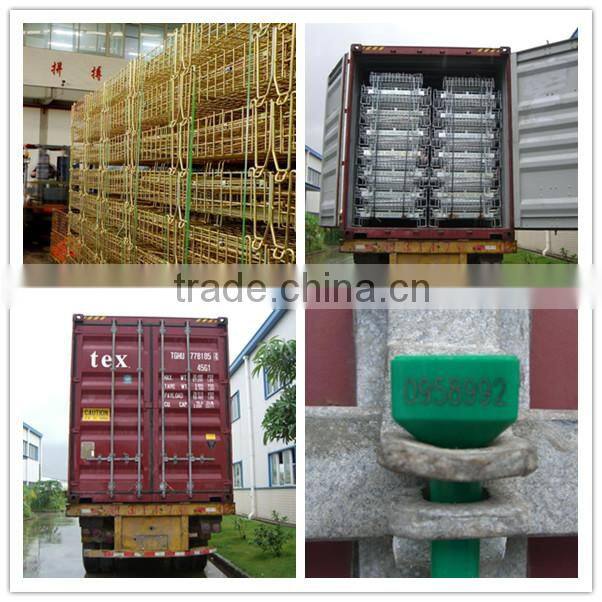

Packaging & Shipping

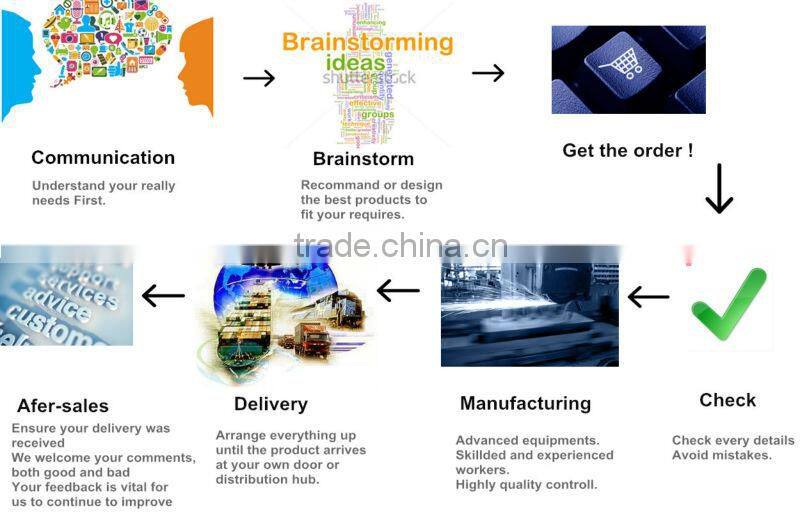

Samples Procedure
One of the biggest worries when purchasing from a Foreign supplier, especially for the first time, is that when the goods arrive
- it's not what you wanted.
Our samples procedure takes away that worry completely !
Company Information
Exhibition Show

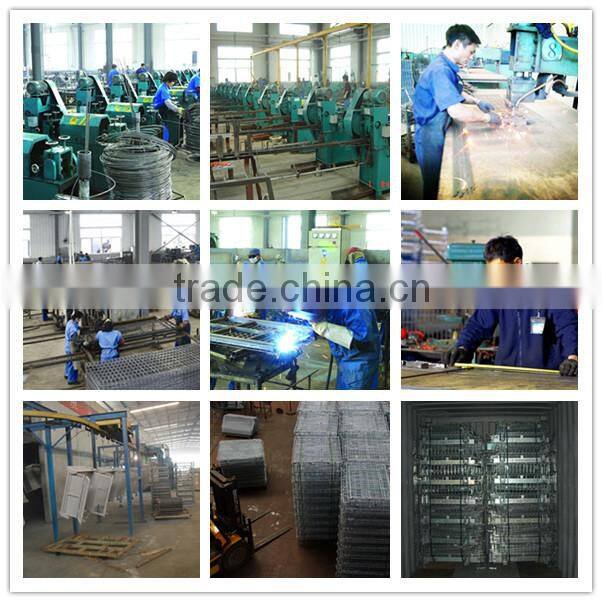

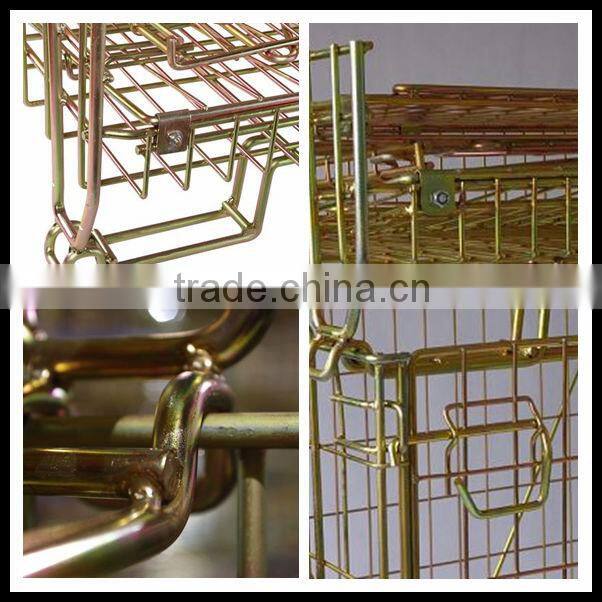

Skilled and High Quality Controlled Working Process

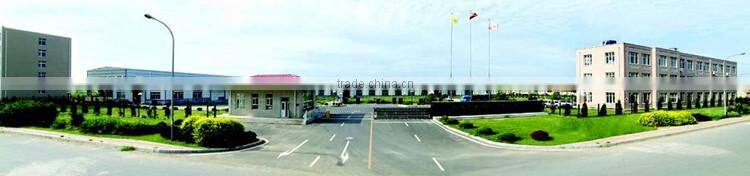

Dalian Huameilong Metal Products Co.Ltd , established in 1993,one of the largest manufacturers of transportation security facilities,material handling equipments and welded wire mesh products in North China.We have already past the ISO 9001:2000 and B&V international well-known certification.
Corporate Culture: Quality is enterprises’ life and motivation and should be guaranteed by whole workers
FAQ
1, What is the material being used for your products?
---Mild steel Q235, Q195
2, How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.
3, What is the payment terms I can get?
---TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
---Electro galvanized ,hot dip galanized, painting or powder coating is available.
5, What is the loading capacity?
--- In general, we have light duty(100~300kg) model,medium duty(400~800kg) model and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
---Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldnt find the right model from the products list, is custom size available?
---Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
9 I don' have drawing or picture available for th custom products, could you design it for me?
---Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environment e)
10 What is the minimum quantity I can order?
---1x20'GP - qty is variable depend on the size.
11 What is your average production lead time?
---2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
---3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/un-stacking
B) Overloading is prohibited
C) Environment request –indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zn plated and powder coated proucts, no limitation for hot dip galvanized)
13 What happen in case any quality problem is identified after arrival?
---We take full responsibility for any manufacturing defect, would either refund or reship good products to you.
