Curtain Wall Design Curtain Wall System Aluminum Curtain Wall

The Aluminum Curtain Wall are intricately designed and are installed in a fruitful manner rendering an outstanding look to the different buildings. We have adept team of professionals who ensure tat these curtain walls are high in quality and rendering maximum strength to the different structures.

Panel size

1)Standard size :1220mmx2440mmx3mm/4mm

2) Accepted thickness: 2mm 3mm 4mm 5mm 6mm

3)Accepted width: 1000mm, 1220mm,1230mm, 1250mm, 1500mm

4) Accepted Length: According to buyer’s requirements (Max:6000mm)

5) Skin aluminium thickness: 0.5*0.5mm 0.4*0.4mm 0.3*0.3mm 0.25*0.25mm 0.20*0.20mm 0.15*0.15mm

Note: Special specifications are available upon request

Materials

1) Front: aluminium alloy sheet coated with PVDF or PE

2) Core: nontoxic polyethylene/plastic fireproof materials

3) Back: aluminium coated with polyester service coating

Dimensions:

A) Material: AA1100H14, AA1100H24, AA1060H14, AA1060H24, AA3003H14, AA3003H24, AA5052H11, AA5052H24 or as requested

B) Typical thickness: 0.8-3.5mm

C) Surface Treatment: Mill, PVDF, Polyester coating, Powder Coating

D) Style: Plane, curve, irregular, perforated, or as per your request

Product features:

A) Light and straightness;

B) Excellent rigidness;

C) Excellent resistance to wind pressure;

D) Environmental: Sound-proof, heat-insulating, vibration damping;

E) Strong weather resistance, Anti-humidity;

F) Easy installation under all weather condition;

G) Easy to machine and model;

H) Good shock absorption

Application

1)Wallboards and ceiling for tunnels.

2)Materials for industrial application ,car and ship bodies.

3)Curtain wallboards for outside walls of normal buildings.

4)In interior wall ,ceiling, kitchen ,and interior decoration.

5)Facades and balconies ,shopping malls ,airport, stadium, plaza and so on

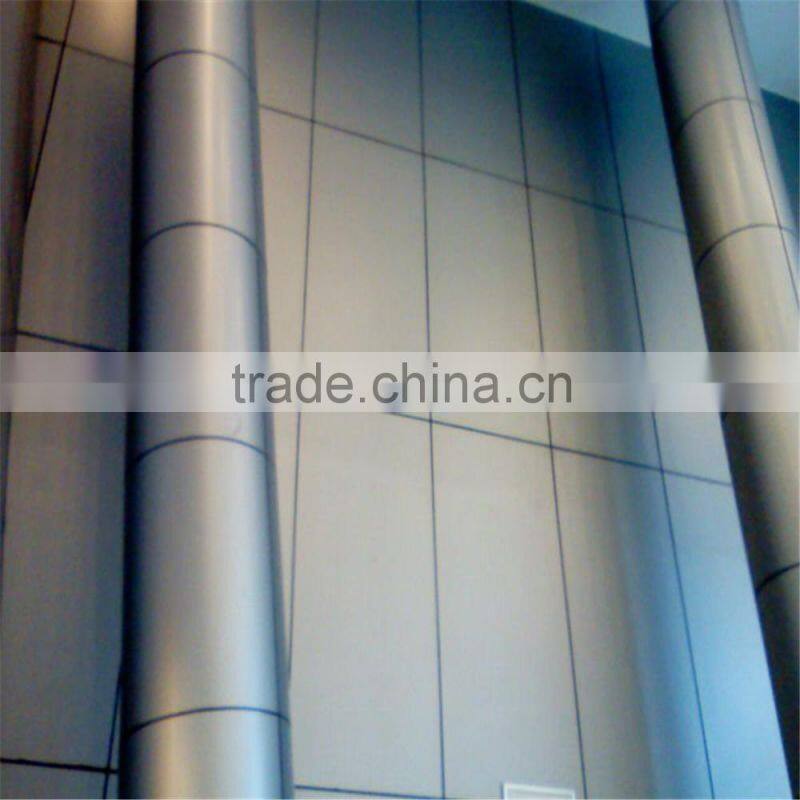

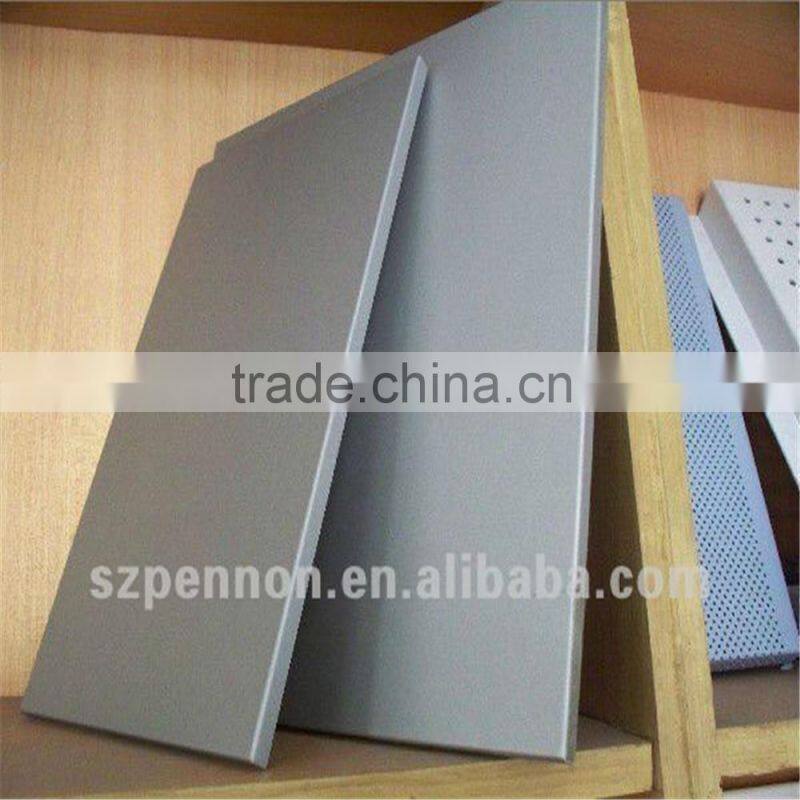

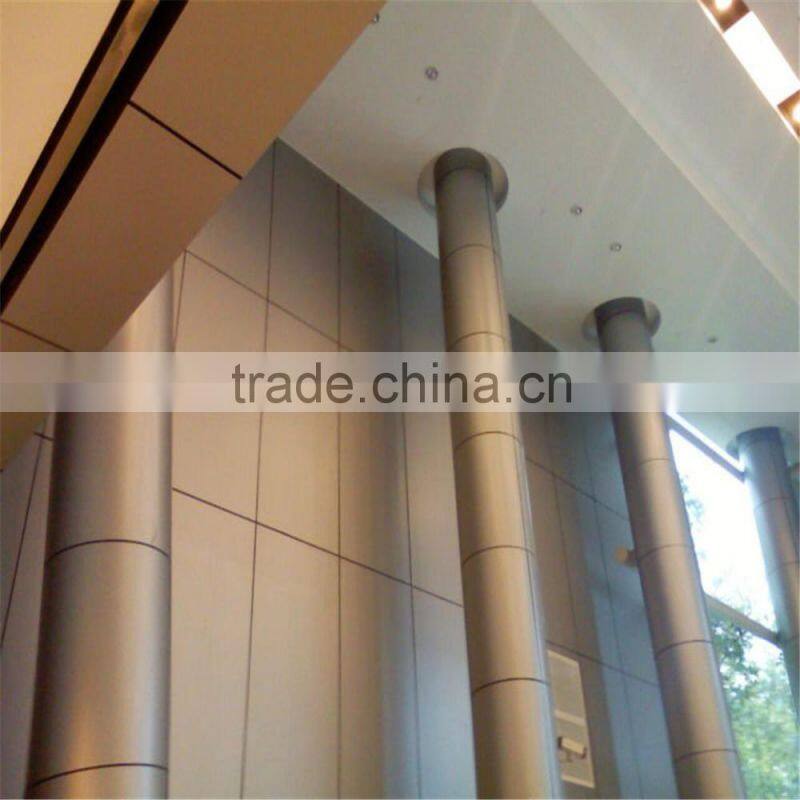

The real photo show:
