Specifications
Cement Rotary Kiln1.High precision temperature control
2.High level automatic running
3.Low power consumption
Cement Rotary Kiln
Cement Rotary Kiln / cement calcination kiln Application:
Cement Rotary kiln mainly can be used for building material equipment.Rotary kiln can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.
1.Cement rotary kiln is used for making of cement clinker and there are drying and wet methods to make cement.
2.metallurgy chemical kiln is used for magnetic roasting of iron ore and oxidizing roasting of chrome and nickel in the steel factory; baking high-alumina mine in the refractory material factory; baking chamotte and alumina in the aluminium factory and baking chrome ore and chrome powder in the chemical plant.
3.Lime kiln is used for baking active lime and dolomite in the steel factory and ferroalloy factory.

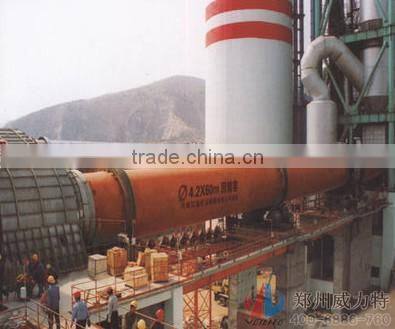

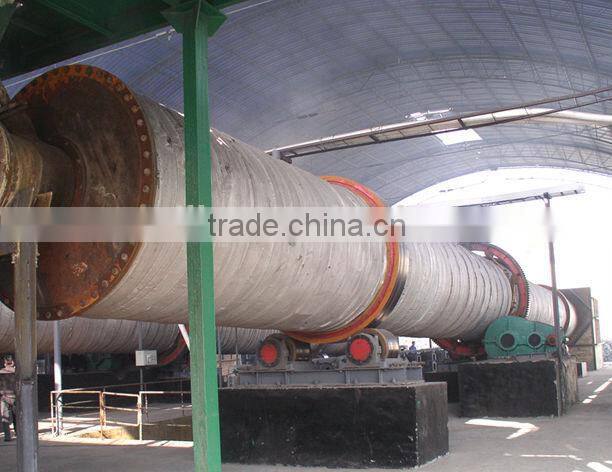

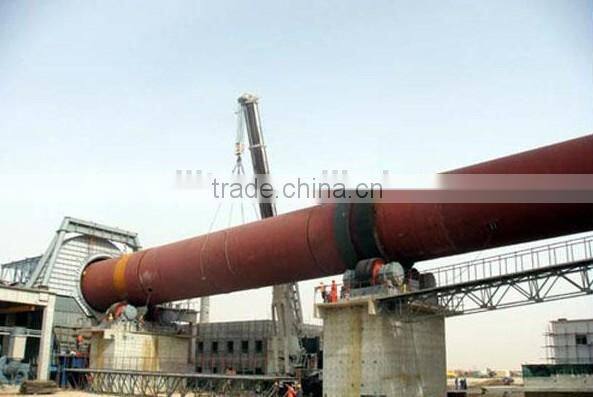

work site of the cement rotary kiln
|
Specifications (mm) |
Kiln demensions |
Output(t/h) |
Rotation speed(r/min) |
Motor power(kw) |
Weight |
Note | ||
Diameter(mm) |
Length(mm) |
Obliq-uity(%) |
(t) |
---- | ||||
Ø1.4x33 |
1.4 |
33 |
3 |
0.9-1.3 |
0.39-3.96 |
18.5 |
47.5 |
---- |
Ø1.6x36 |
1.6 |
36 |
4 |
1.2-1.9 |
0.26-2.63 |
22 |
52 |
---- |
Ø1.8x45 |
1.8 |
45 |
4 |
1.9-2.4 |
0.16-1.62 |
30 |
78.2 |
---- |
Ø1.9x39 |
1.9 |
39 |
4 |
1.65-3 |
0.29-2.93 |
30 |
77.59 |
---- |
Ø2.0x40 |
2 |
40 |
3 |
2.5-4 |
0.23-2.26 |
37 |
119.1 |
---- |
Ø2.2x45 |
2.2 |
45 |
3.5 |
3.4-5.4 |
0.21-2.44 |
45 |
128.3 |
---- |
| Ø2.5x40 | 2.5 |
40 |
3.5 |
9.0-10.5 |
0.44-2.44 |
55 |
149.61 |
---- |
| Ø2.5x50 | 2.5 |
50 | 3 | 6.25-7.4 | 0.62-1.86 | 55 | 187.37 | ---- |
| Ø2.5x54 | 2.5 | 54 | 3.5 | 6.9-8.5 | 0.48-1.45 | 55 | 196.29 | ---- |
| Ø2.7x42 | 2.7 | 42 | 3.5 | 10.0-11.0 | 0.10-1.52 | 55 | 198.5 | ---- |
| Ø2.8x44 | 2.8 | 44 | 3.5 | 12.5-13.5 | 0.437-2.18 | 55 | 201.58 | suspension preheating kiln |
| Ø3.0x45 | 3 | 45 | 3.5 | 12.8-14.5 | 0.5-2.47 | 75 | 210.94 | ---- |
| Ø3.0x48 | 3 | 48 | 3.5 | 25.6-29.3 | 0.6-3.48 | 100 | 237 | outside disassemble kiln |
| Ø3.0x60 | 3 | 60 | 3.5 | 12.3-14.1 | 0.3-2 | 100 | 310 | ---- |
| Ø3.2x50 | 3.2 | 50 | 4 | 40.5-42 | 0.6-3 | 125 | 278 | outside disassemble kiln |
Please note that :
