double shaft stirring machine
- Double shaft stirring machine is our new generation hybrid devices. Mixed high residual, less suitable for feed, concentrated feed, premix additives mixed. The material is fully mixed.
- To improve the mixing uniformity; using new rotor structure, the rotor and housing close to the minimum gap can be adjusted to zero, effectively reducing the material residues; machine built with oil added channels, the overall structure is more reasonable, beautiful appearance, operation and maintenance.

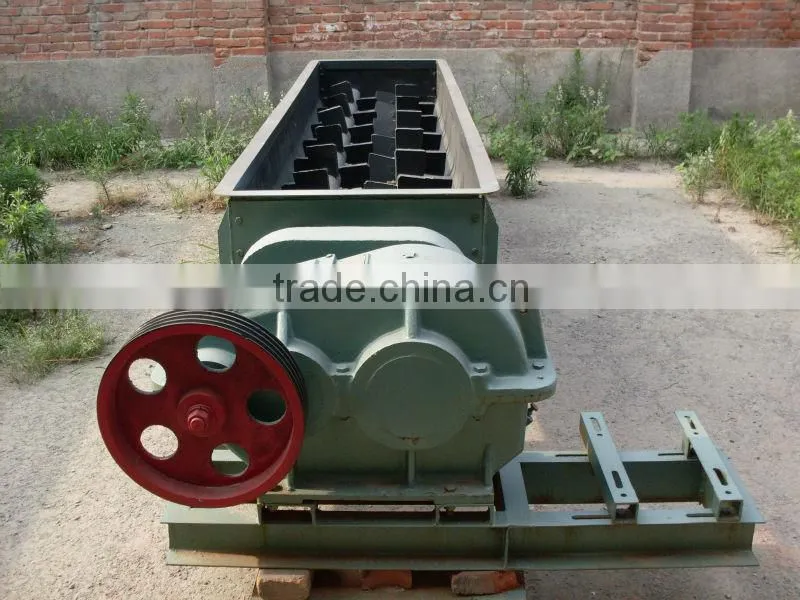

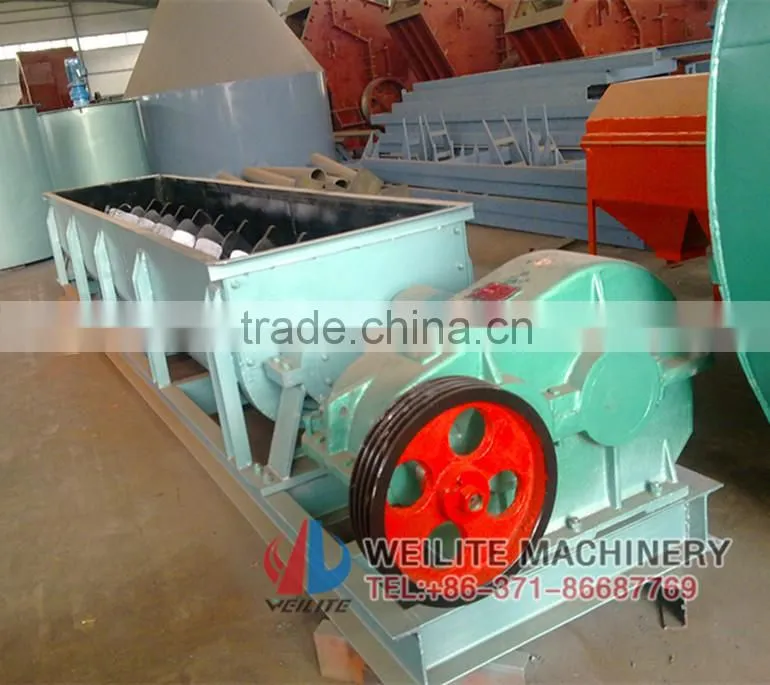

1)Horizontal mixer pictures

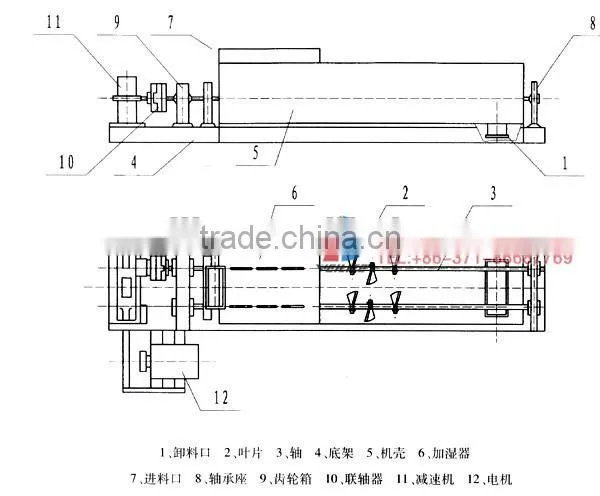

2)Double shaft stirring machine working principle
Double shaft stirring machine can mix and squeeze raw materials with water adequately in order to blend, homogenize,mix and enhance the pasticity and molding capality of the raw material.And it is a necessary equipement to deal with the raw material while in the procession of briquettes.

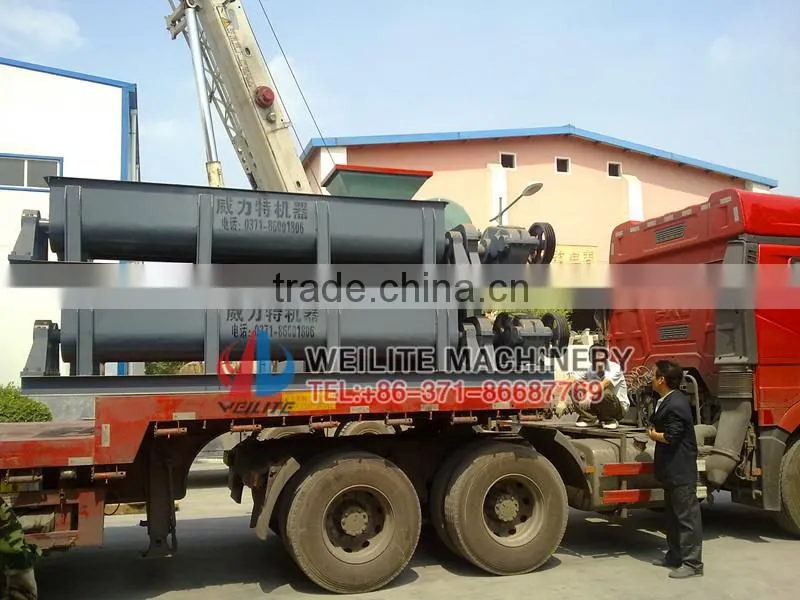

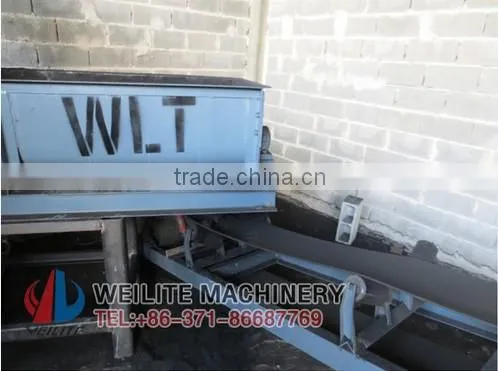

3)Double shaft stirring machine installation pictures
4)Main Technical Parameters of double shaft stirring machine
Machine Type |
Max. Feeding size(mm) |
Capacity (T/H) |
Motor Power (kw) |
SJ-1800 Crusher and Mixer |
100 |
1-5 |
2+5.5 |
SJ-2500 Crusher and Mixer |
120 |
10-15 |
11+7.5 |
SJ-3000 Crusher and Mixer |
150 |
25-35 |
18.5+11 |
1)Pre-sale services: Enthusiasm
- We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2)Sale services: Servant
- Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3)After-sale services: Faithfulness
- To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4)We provide one-year warranty to make sure your machine runs consistently.
- We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.
1. How to do when mixer have abnormal sound ?
Mixer operation must listen , once strange sound , you should immediately identify excluded. Otherwise, even a broken mixing blades will move forward with the mud , to break the back of the stirring blades together . If transmission fails, we must be repaired . Is gear wear, not the amount of wear child when the tooth thickness of 1/ 3, can be flipped 180 ° use; wear more than 1 / 3, to be replaced with new gear, absolutely can not improvise use ; open gear box to refuel to extend the gear life. Gear backlash is too small, you can check the quality and gear center distance, make the appropriate repairs and adjustments. In addition, if the bearing is damaged, replace the bearings, abrasion stirred tank mixing blade eliminates foreign body.
2. How to overcome the stirring effect is poor, low efficiency problem ?
Pug mixer for stirring , mixing, transporting mainly achieved by mixing blade , mixing blade for stirring effect plays a big role . When the stirring leaf badly worn and thin, even shorter blade broken , mixing functionality will be greatly weakened, then we should be repaired or replaced stir leaves. Mixing blade angle is too small, too large or inconsistent , we must be repaired or replaced stir leaves. Mixing blade angle is too small, too large or inconsistent , it is necessary to adjust the mixing blade angle. If the speed is too low, the stirring shaft occurs, the speed should be changed . In addition, the device does not support this will lead to problems , may be considered before the procedure to install roller machine.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /
If you didn't get the suitable machine in this page, please email me you detailed requirement. We are the manufacturer with over 30 years working experience. We can help you in this matter.
Hot Sercice Line:+86-371-86687769
Contact Me:Ms Sandy Shi
