Top Quality Low Price Tunnel Dryer For Wood Sawdust
- 200 Set / Sets per Month
- Qingdao Shanghai Guangdong or other inland custom ports
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | Weilite | Model Number: | ZTH series | Voltage: | 220v,380v or custom made |
Power(W): | 3-75kw | Dimension(L*W*H): | 6000*600*600mm | Weight: | 2.9-104.9t |
Certification: | ISO9001 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
tunnel dryer for wood sawdust
Part one:Tunnel Dryer For Wood Sawdust Introduction
This wood sawdust tunnel dryer is widely used to dry wood sawdust, wood chips, rice husk, sugar cane bagasse, etc. which is the pre-processing for making pellet, briquette, biomass fuel, etc.
A conveyor designed for feeding the material, thus saving much labor.
When operating, put the wet material in through the hopper, and the hot air will mix and dry and then discharge at the cyclone. The professional design make the dryer can dry from the moisture 40-70% to final 8-12%. Which is perfect for making pellet, briquette, etc.

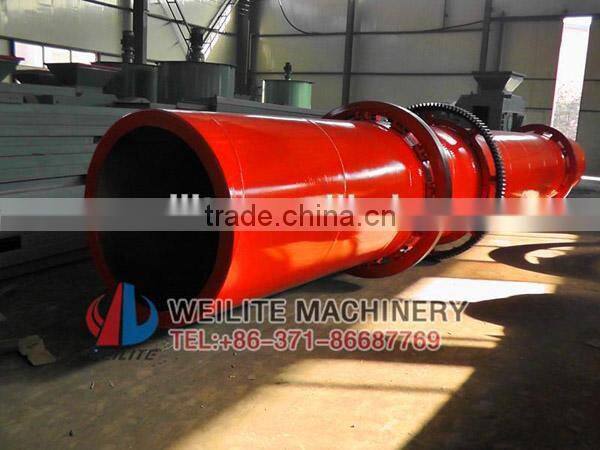

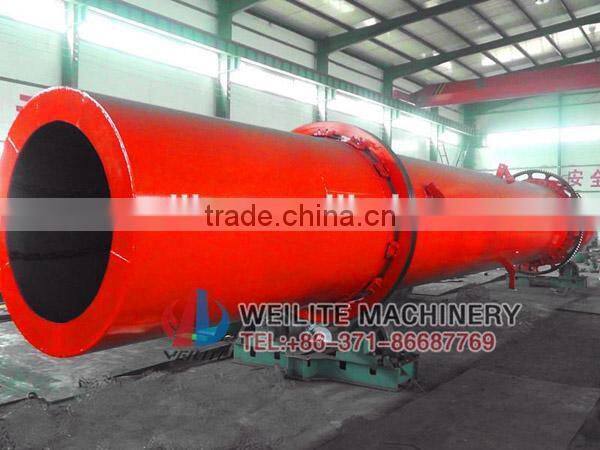

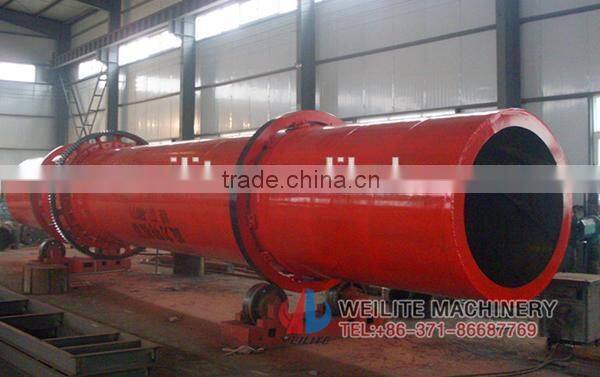

1)Photos of tunnel dryer for wood sawdust

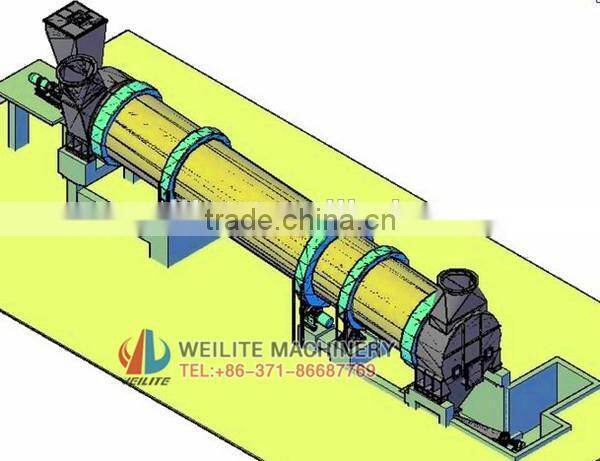

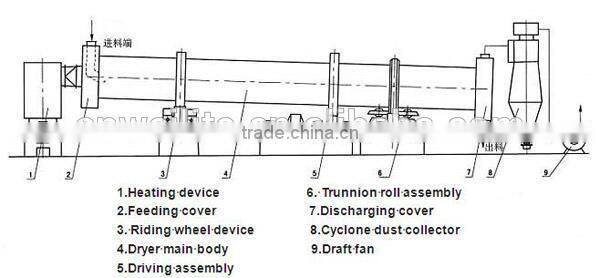

2)Tunnel dryer for wood sawdust parts
3)Tunnel dryer for wood sawdust working principle

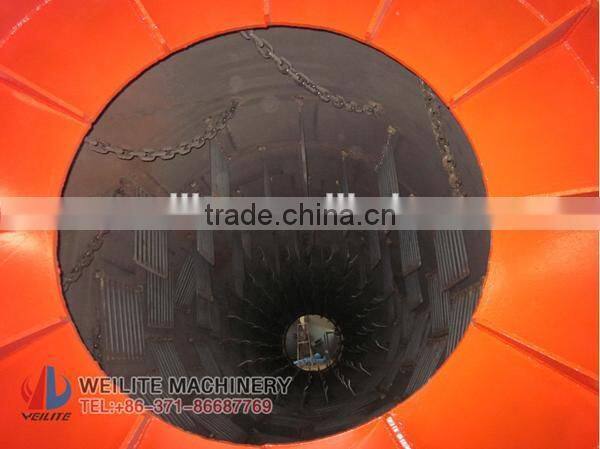

Materials are sent to hopper of wood sawdust tunnel dryer by belt conveyor or bucket elevator. The barrel is installed with slope to horizontal line. Materials enter the barrel from the higher side, and hot air enters the barrel from the lower side, materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely.

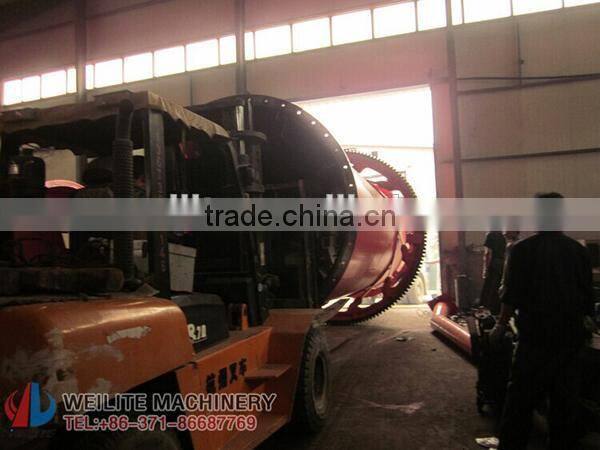

4)Tunnel dryer for wood sawdust work site pictures
5)Main technical parameters of wood sawdust tunnel dryer
Model (mm) | Inclination (%) | Rotate speed (r/min) | Air inlet temperature (°C) | Power (KW) | Production capacity(t/h) | Weight (t) |
Φ600x6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
Φ800x8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
Φ800x10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
Φ1000x10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
Φ1200x10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
Φ1200x12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
Φ1500x12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
Φ1800x12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
Φ2200x12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
Φ2200x18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
Φ2200x20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
Φ2400x20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
Φ3000x20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 78 |
Φ3000x25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-40 | 104.9 |
1)Pre-sale services: Enthusiasm
- We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2)Sale services: Servant
- Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3)After-sale services: Faithfulness
- To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4)We provide one-year warranty to make sure your machine runs consistently.
- We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.
Part four:Company information-Zhengzhou Weilite Machinery
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines such as crusher, ball mill, rotary dryer,belt dryer,briquette machine,mixer, etc. Website: /
1.What's the raw material that can be dried?
- Answer:Any kind of chips and lump material can be dried by our machine.
2.What kind of fuel can be used with the rotation dryer?
- Answer:Gas, Diesel, Coal, Wood and other solid fuels.
3.What's the drying type of your dryer?
- Answer:Hot Air Drying Type.
4.Is the belt speed adjustable?
- Answer:Yes.
5.Can we adjust the drying temperature?
- Answer:Yes, we can adjust the drying temperature by adjusting the hot air inlet volume.
- Contact person: Sandy Shi
- Tel:+86 (0)371 86687769
If you want to know more details or any other related machines, please don't hesitate to contact me!
