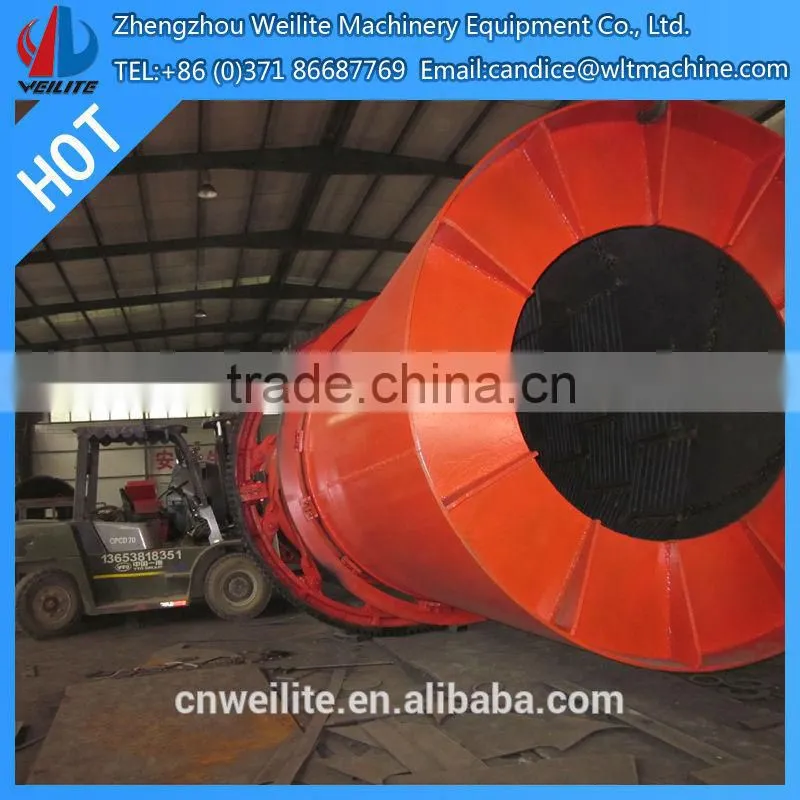

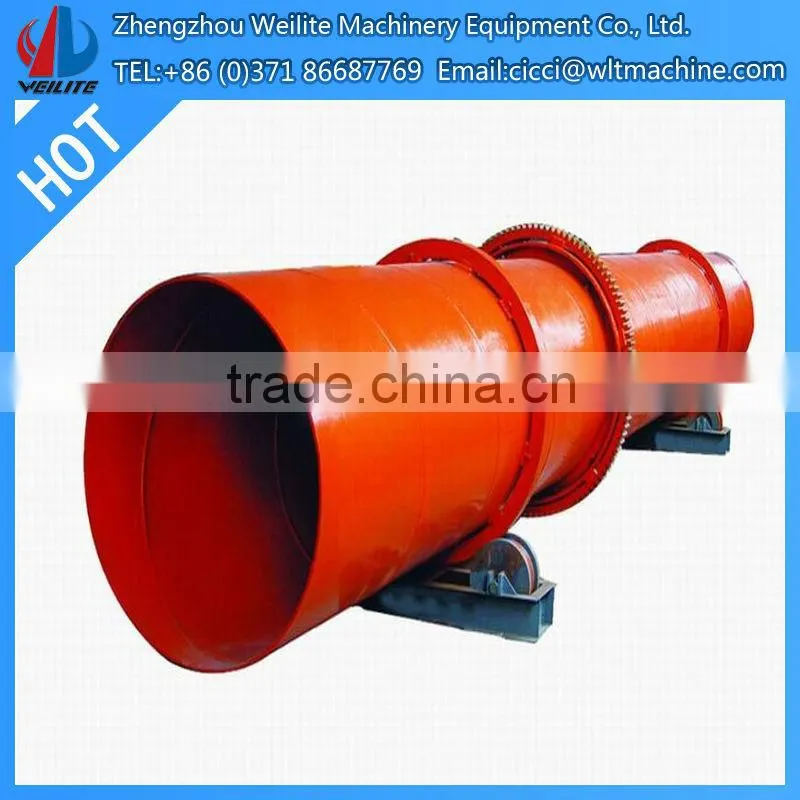

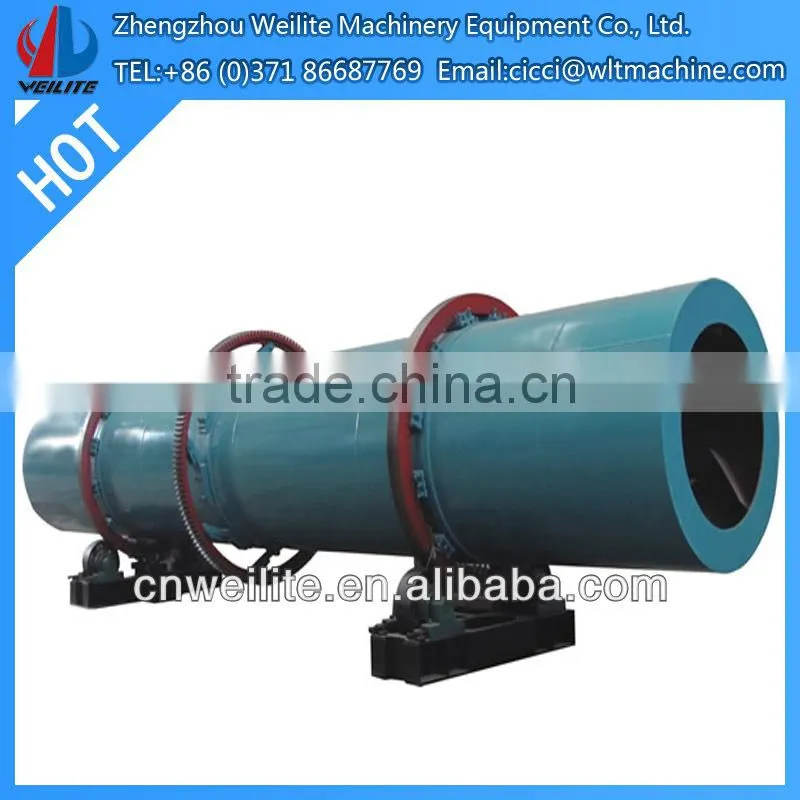

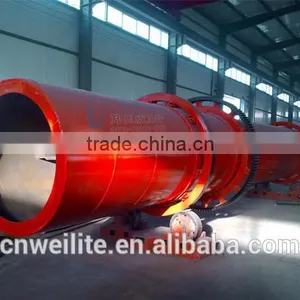

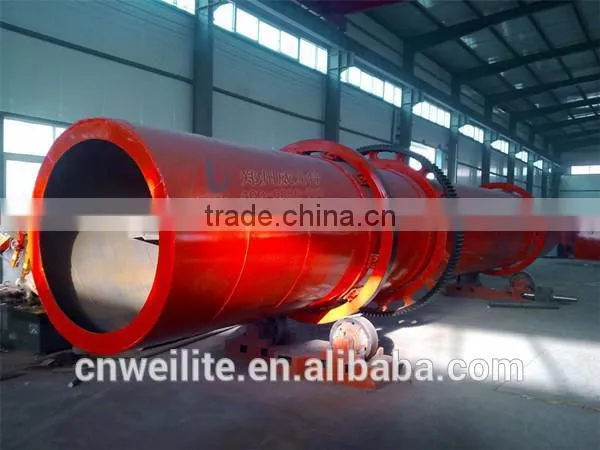

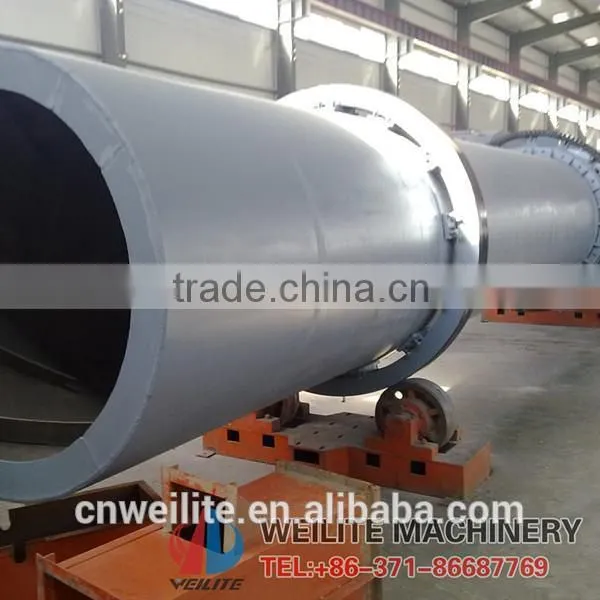

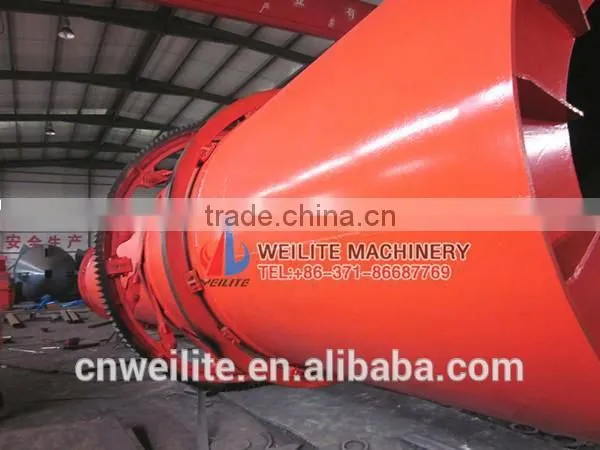

Strew Rotary Dryer
Brief Introduction of Strew Rotary Dryer
Strew Rotary Dryer is the key equipment to dry different materials with humidity or granularity in various fields.
Application of Strew Rotary Dryer
1). Building materials---Clay; diatomite; kaolinite; gypsum; etc.
2). Chemical industry---phosphorus slag; pomace; graphite; inorganic compound fertilizer; coal slime; lignite;coal
3). Metalurgy---Metal power; phosphorus slag; lime slurry etc.
4). Agriculture---wood chip; sawdust; leaf; chicken manure; cow dung; organic fertilizeretc.

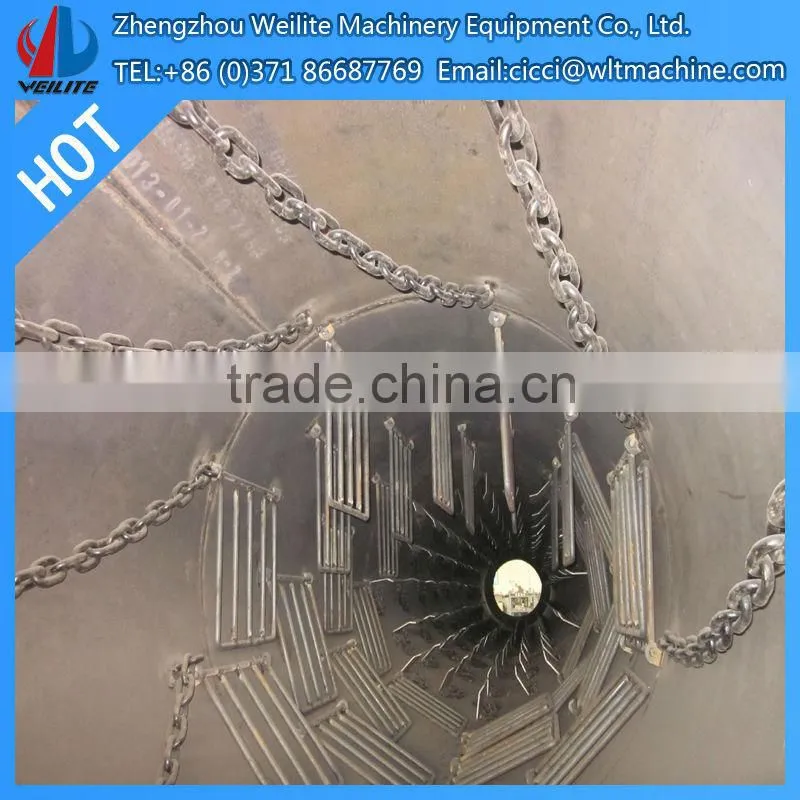

For different material the dryer inner structure is different, all our equipment is designed as your requirement, so for more details please contact with me.
Features of Strew Rotary Dryer
1). Large intensity of drying, large effective area of drying, the drying time is short;
2). Simple structure, save space ,easy construction and maintenance;
3). Large quantity, the thermal efficiency is as high as 60%;

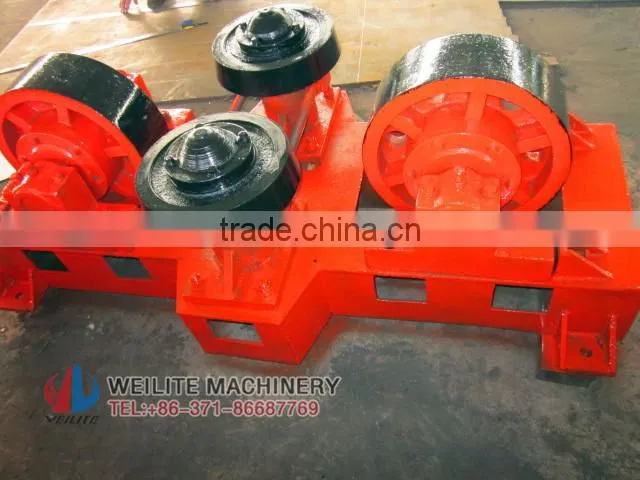

4). Drum dryer using "self-aligning roller device", thus greatly reduces the wear and power loss.

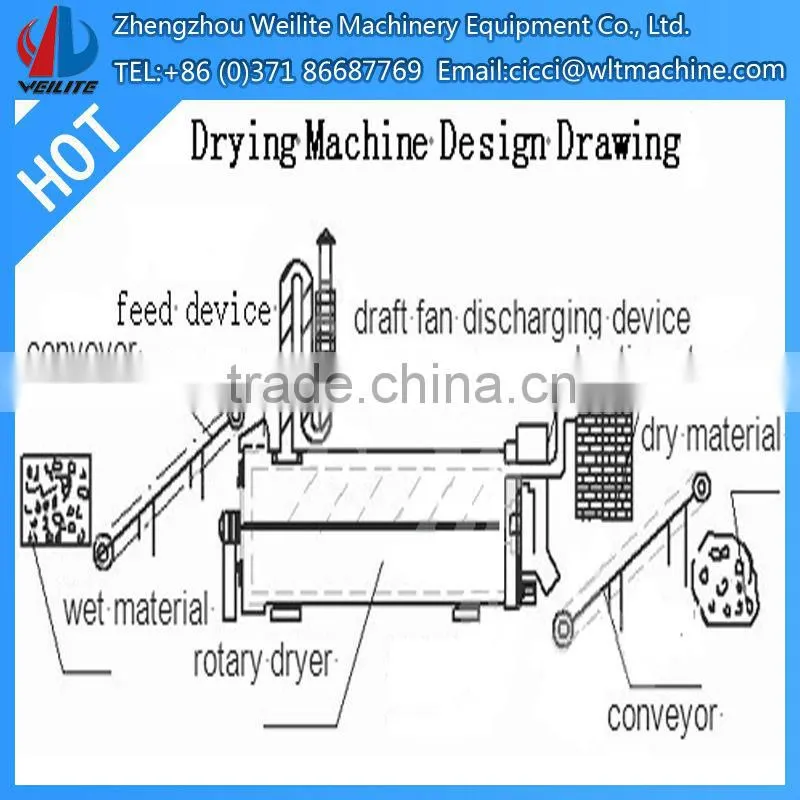

Working Principle of Strew Rotary Dryer

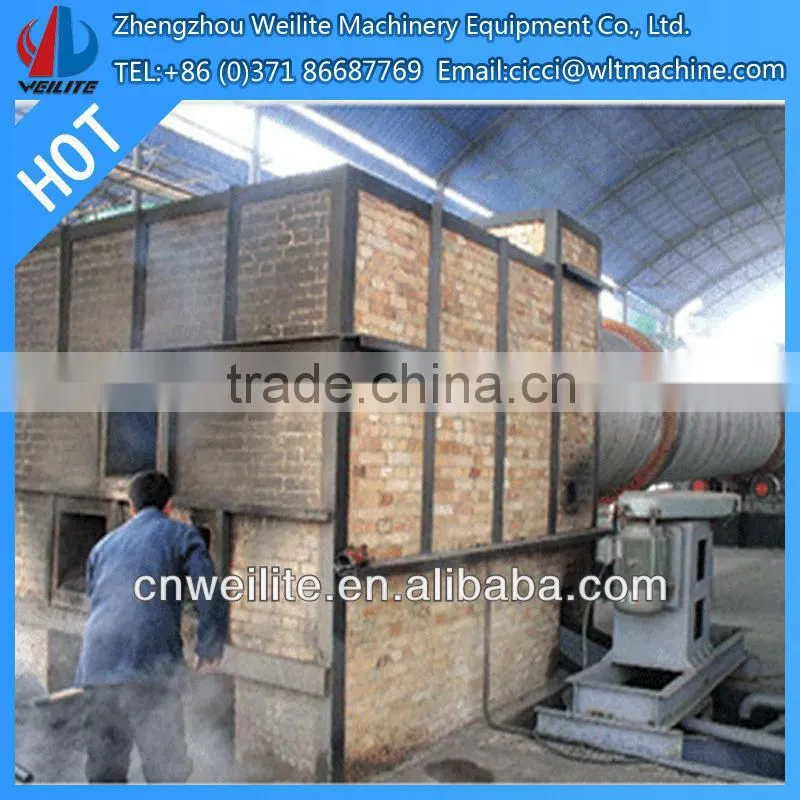

The auto-combustion device provides heat resource for our clay rotary drum dryer, which adopts down-flow heating method. When the mineral materials are fed into the cylinder, it flows down as a result of gravity. Meanwhile, they are repetitively scattered in the air so that they are in full contact with the hot air. The material dried gradually.
Main Technical Parameters of Strew Rotary Dryer
Model (mm) |
Inclination (%) |
Rotate speed (r/min) |
Air inlet temperature (°C) |
Power (KW) |
Production capacity(t/h) |
Weight (t) |
Φ600x6000 |
3-5 |
3-8 |
≤700 |
3 |
0.5-1.5 |
2.9 |
Φ800x8000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.0 |
3.5 |
Φ800x10000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.5 |
4.5 |
Φ1000x10000 |
3-5 |
3-8 |
≤700 |
5.5 |
1.0-3.5 |
5.6 |
Φ1200x10000 |
3-5 |
3-8 |
≤700 |
7.5 |
1.8-5 |
14.5 |
Φ1200x12000 |
3-5 |
3-8 |
≤700 |
11 |
2-6 |
14.8 |
Φ1500x12000 |
3-5 |
2-6 |
≤800 |
15 |
3.5-9 |
17.8 |
Φ1800x12000 |
3-5 |
2-6 |
≤800 |
18 |
5-12 |
25 |
Φ2200x12000 |
3-5 |
1.5-6 |
≤800 |
18.5 |
6-15 |
33 |
Φ2200x18000 |
3-5 |
1.5-6 |
≤800 |
22 |
10-18 |
53.8 |
Φ2200x20000 |
3-5 |
1.5-6 |
≤800 |
30 |
12-20 |
56 |
Φ2400x20000 |
3-5 |
1.5-5 |
≤800 |
37 |
18-30 |
60 |
Φ3000x20000 |
3-5 |
1.5-5 |
≤800 |
55 |
25-35 |
78 |
Φ3000x25000 |
3-5 |
1.5-5 |
≤800 |
75 |
32-40 |
104.9 |

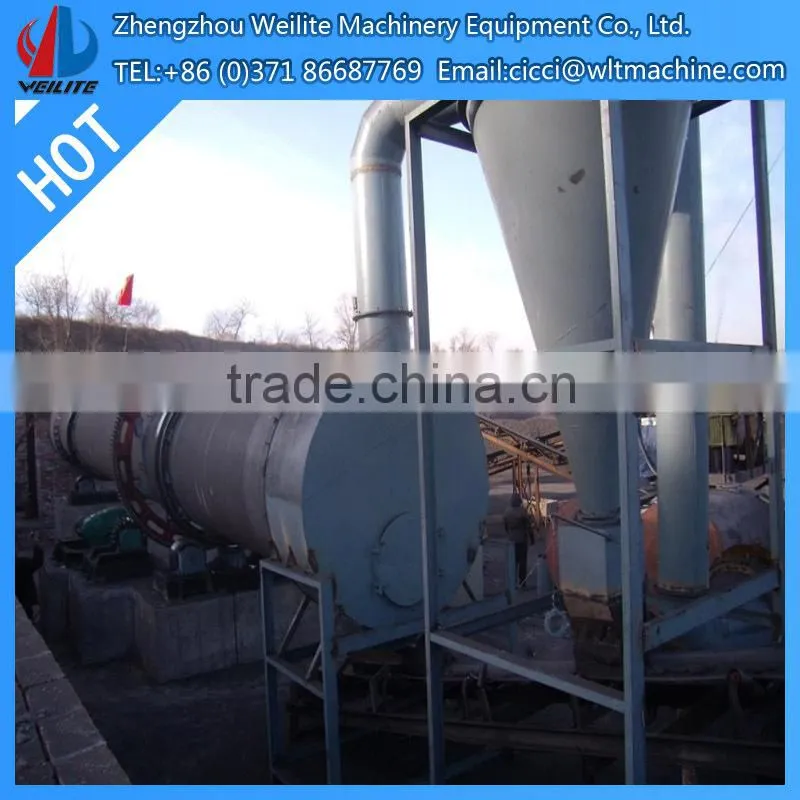

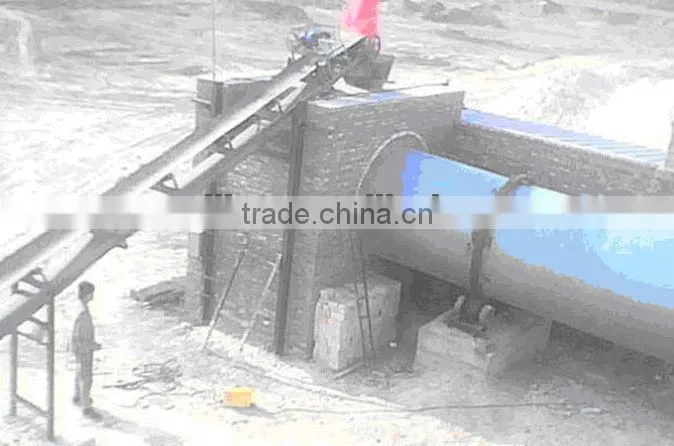

Successful Cases of Strew Rotary Dryer

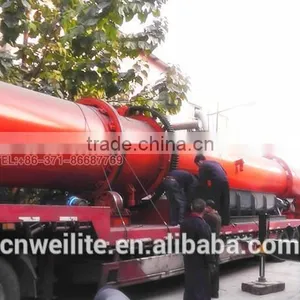

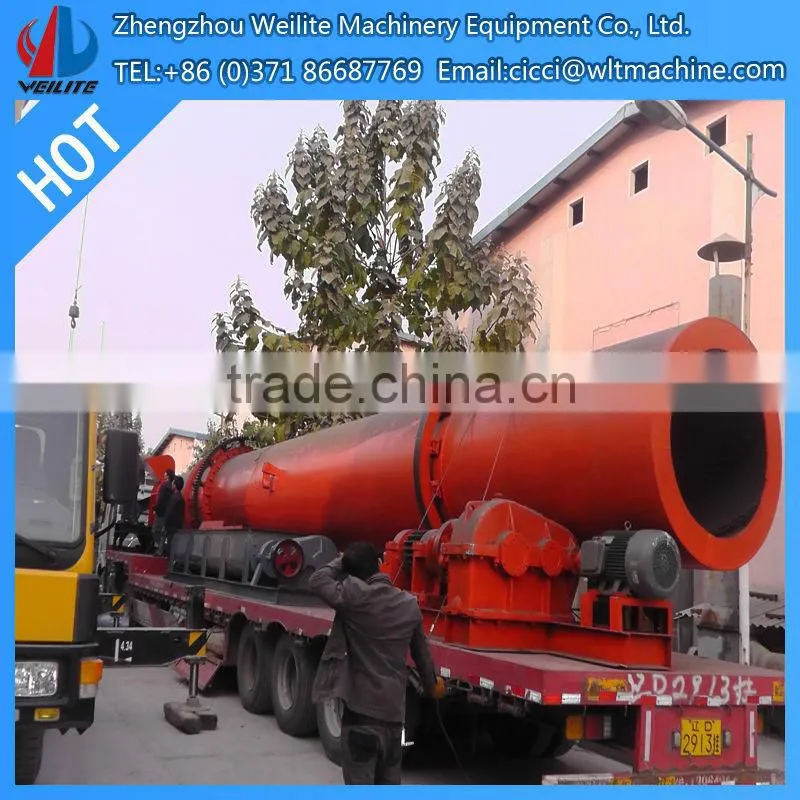

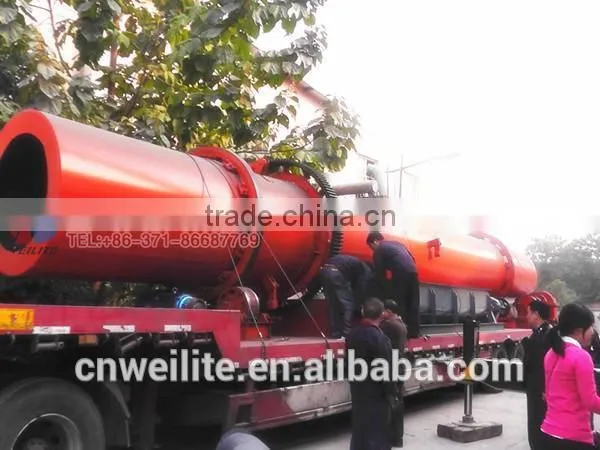

- standard containers
- bare main machine.
- motors and small parts are packed in wooden cases
- or as your requirement
Our Service
(1) Pre-sale Service:
- Suitable-design products and resonable price will be supplied to you to meet your need. We can also offer experiment to test the equipment that the customer need.
(2) After-sale Service:
- On the spot guidance for installation by our engineers, and the buyer is responsible for the expense. We have a perfect after-sales service system and team with professional.
Company Profile
We Zhengzhou Weilite Machinery Equipment Co., Ltd is a manufacturer and exporter of mining machinery in China. Our main products are dryer, briquetting machine, crusher, grinding mill and so on. All of them are ISO9001:2000 confirmed. They are excellent quality and enjoy good reputation both in China and overseas.
1. What is the heating resource for the machine?
Wood chips, gas, coal and other solid fuels.
2. Do you provide custom-made service?
We are manufacturer, so the machine can be designed as your wish.
3. How is the machine price?
We can provide the machine at the factory prices.
Contact Information
- Contact person: Shayne Wang
- Tel:+86 (0)371 86687769
- Skype:shaynewang123
- Website: /
Welcome to visit and purchase from us!
