Coal processing briquette machinery
Introduction of coal processing briquette machinery
Our briquette machinery helps in develop high quality Briquettes and waste material recycling.
As a manufacturer, exporter, and supplier, we have the expertise to design and develop premiumgrade briquette machine to assure smooth production of briquettes in varied sizes. Binder and adhesive materialused should be of high quality that makes the process easier and qualitative.
Shape and size of the coal plant coal dust recycle coal processing briquette
The briquettes with 30-60mm in general with oval, round, pillow, square shape, etc.
Suitable material for this coal processing briquette machinery :
coal, charcoal,
mineral powder,
iron ore powder,
gypsum powder,coke,
carbon black dust, etc .
The working principle of press coal fuel to briquette machine
Briquette Machine motor will pass the power on to the two pressure roller through the reducer. The two sides and roller rotation, in both the rotating direction, material fulfill the space between two rollers, with the roller rotation, pressure on material will be bigger and bigger. When the material reach the two rollers rotating line contact point, the pressure reach the peak. After press, the briquette will drop by gravity.
( The pictures of press coal to briquette machine and briquettes samples for your better understanding )
Technical details of coal processing briquette machinery
Model |
WLXM-360 |
WLXM-400 |
WLXM-500 |
WLXM-650 |
WLXM-750 |
WLXM-850 |
WLXM-1250 |
Capacity |
2~4 t/h |
6~8t/h |
8~11t/h |
13~18 t/h |
18~25t/h |
25~35 t/h |
40~70 t/h |
Annually capacity |
10,000 t/h |
20,000 t/h |
30,0t00 t/h |
50,000 t/h |
70,000 t/h |
100,000 t/h |
200,000 t/h |
Dia. Of rollers |
360mm |
400mm |
500 |
650mm |
750 |
850mm |
1250mm |
Width of rollers |
250 |
280 |
300 |
336 |
400 |
500 |
650 |
Motor power |
7.5 kw |
11~15kw |
18.5~22kw |
20~30 kw |
45kw |
75 kw |
130 kw |
Rotation speed |
18 r/min. |
15r/min. |
13r/min |
13 r/min. |
13r/min |
10 r/min. |
10 r/min. |
Shapes of briquettes |
Oval or pillow or square or customized |
||||||
Sizes of briquettes |
As your specific requirement ( usually 20~80mm ) |
||||||
If you want to confirm weather your material can be handled by this type machine or not, kindly let me know the raw material? it's size and moisture ? the shape and size of the briquette ? capacity requirement ? Then we'll check and recommend suitable machine with all the details-technical data, pictures, working video,and best factory price very soon.
Delivery with wooden case or container for coal processing briquette machinery
1. with wooden case for single machine, small size machine
2. with container for big size machine, large quantity machine, or complete production line
Coal processing briquette machinery Company brief introduction
Henan province zhengzhou city weilite machinery plant is the professional manufacture for making different kinds new type briquette/briquetting machine, importing international advanced technical, use and improve the newest design concept of different machines to make more high efficiency, power saving and durable shape-coal briquette machine.
Our service of the Coal processing briquette machinery
1. If any interest on our briquette machine, please feel free to contact me and let me know your requirement on capacity and material size.
2. We are professional machine manufacturer, we will help to choose the most suitable machine for you.
3. Whole plant design and drawings are free after set order.
4. Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
5. If you need, we will dispatch professional engineer for installation, trail and worker training.

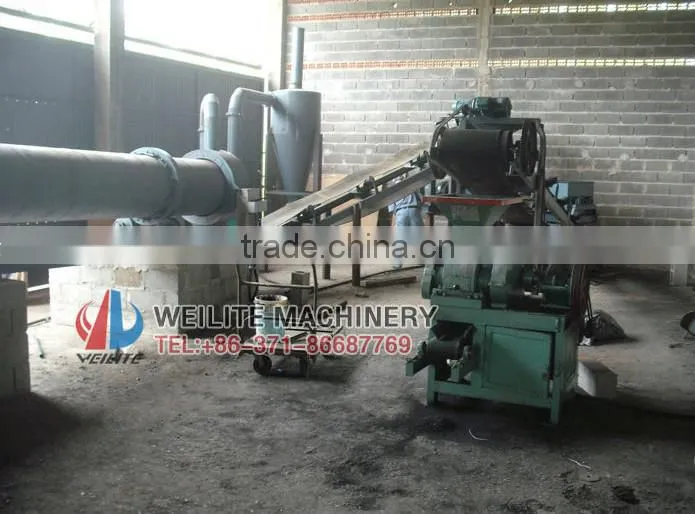

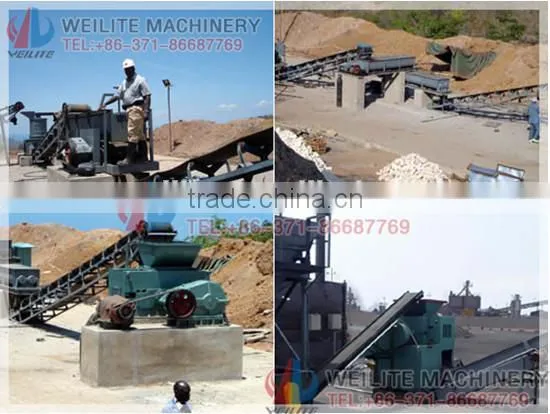

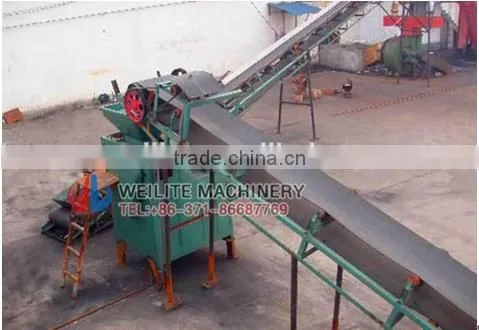

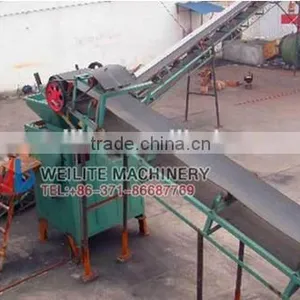

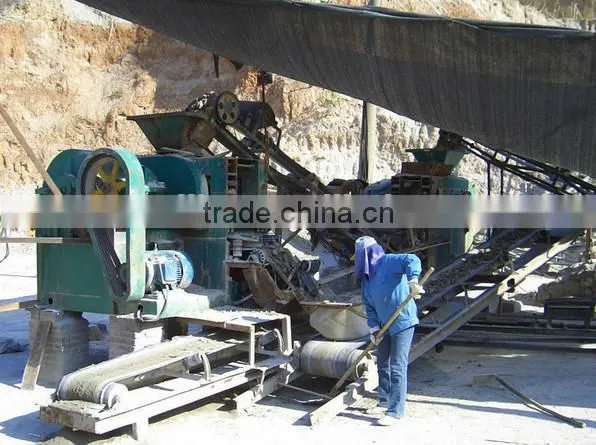

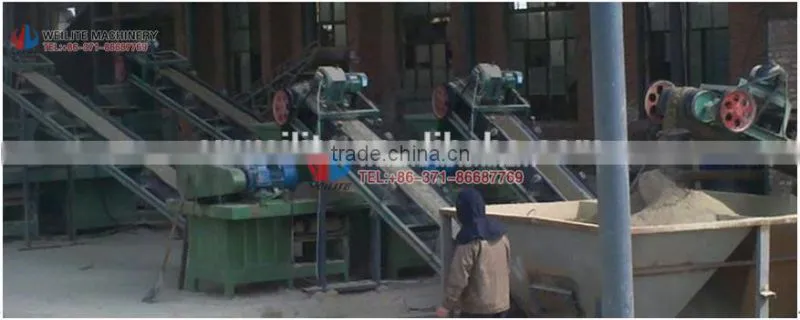

Installation our coal processing briquette machinery in customer's working place
FAQ About coal processing briquette machinery
1).What's the best raw material moisture for coal processing briquette machinery ?
Answer:8%-12%. If material moisture is larger, we had better dry it firstly.
2).What's the max. feeding size for coal processing briquette machinery ?
Answer: 5mm.If larger, we will need crusher.
3).What's the brquette size can be made by coal processing briquette machinery ?
Answer:Normally the briquette diameter is between 30 - 60mm.We also can custom made the briquette size according the customer's requirement.
4).Will this machine requires binder for making briquettes?
Answer:Yes, in order to make sure the briquette strength, we will need binder.
5).Will we need water?
Answer: It depends on the raw material moisture.
Note :
Weilite design the prossing briquette machinery depend on the raw materail, so if the size of briquette is not listed , please contact us for more details.
Tel : +86-371 86687769
contact person: Ms.Ashley Gao
skype: ashley weilite
we chat/celephone: 86 18237163670 or email me .
