Best Price Perforated Film Machine for Baby Diaper
- Wuhan
- T/T
You May Like
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Screw Design | Single-screw | |
| Automatic Grade | Automatic | Place of Origin | Hubei, China | |
| Brand Name | Handern | Model Number | Best Price Perforated Film Machine for Baby Diaper | |
| Voltage | 380V 50HZ | Power(W) | 150KW | |
| Dimension(L*W*H) | 20mx2.5mx2.2m | Weight | 20T | |
| Certification | CE ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Best Price Perforated Film Machine for Baby Diaper
Best Price Perforated Film Machine for Baby Diaper
Introduction of Best Price Perforated Film Machine for Baby Diaper:
This machine can cast PE, PP, EVA, PEVA, TPU films which are widely used for hygiene, medical and packaging applications. Cast film machine have some advantages compared with blown film machine.
Applications of Best Price Perforated Film Machine for Baby Diaper
- Personal hygiene products: tampons, baby diapers, green scrubs, disposable bed sheet
- Daily necessities: raincoat, gloves, waterproof clothing,raglan sleeve;
- Building products: breathable materials, etc.
- Packaging: computer cover, electric appliance cover, shoes cover, cosmetic soft package, shopping bag, gift bag, document folder, file cover and etc.
Specifications of Best Price Perforated Film Machine for Baby Diaper
Width of die(mm) | 1600-3000 |
Width of breathable film(mm) | 1200mm-2600mm |
Linear Speed(m/min) | 100-250 |
Width of finished film(mm) | 0.015-0.05 |
Weight of finished film(gsm) | 20-40 |
Maximum Production Capacity(kg/h) | 200-300-400-500-600 |
Installed power(kw) | 380 |
Advantages of Best Price Perforated Film Machine for Baby Diaper
1.equipped with professional extrusion and recycling system for edge trim online
2.advanced vertical or horizontal stretching unit, convenient and safe to haul off the film;
stretching ratio can be adjusted according to products' requirement;
3.The whole line is controlled by touch screen and PLC, and all kinds of emergency buttons are complete and easy to operate;
4. latest winding tension control unit with stable, reliable, precise measurement.
5.optional online cutting unit and printing unit, it can realize automatic flow operation;
Main Parts of breathable PE Film machine
1 | Feeding System | One set |
2 | Extruding System | One set |
3 | Hydraulic Pressure Screen Exchanger System | One set |
4 | Melting Pressure and Temperature Sensor | One set |
5 | Die specially for Casting | One set |
6 | Cast forming unit | One set |
7 | Unilateral Stretch unit | One set |
8 | Online thickness gauge | One set |
9 | Online computer detective unit | One set |
10 | Haul off unit | One set |
11 | Embossing unit | One set |
12 | Winding unit | One set |
13 | Control System | One set |
Process of Best Price Perforated Film Machine for Baby Diaper
Raw material with twin screw granulator making pallet, dry and transfer to the extruder to extrusion, single layer, three layers extrusion, casting forming, then use MDO one direction stretch thermoforming and embossed by embosser, edge cutting, trimming, unit to ensure the full utilization of raw material, finally winding into a roll. The water proof breathable film products with silky feel.

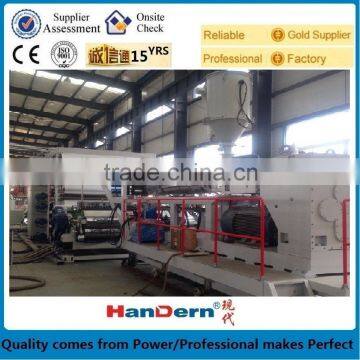

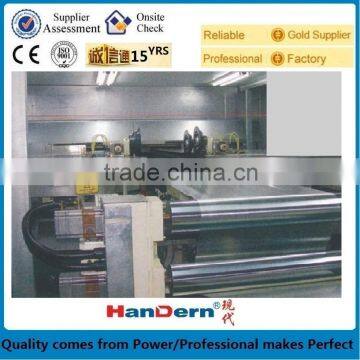

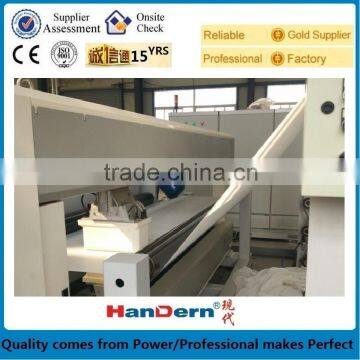

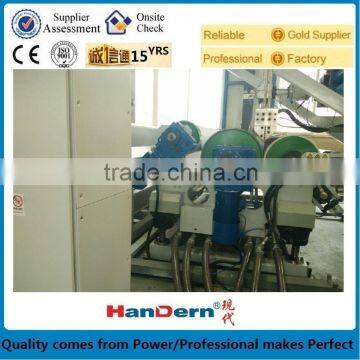

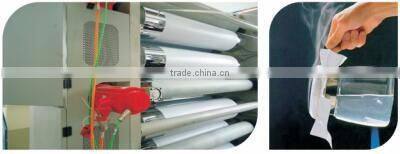

Pictures of Best Price Perforated Film Machine for Baby Diaper
Best Price Perforated Film Machine for Baby Diaper
Best Price Perforated Film Machine for Baby Diaper
Best Price Perforated Film Machine for Baby Diaper
Best Price Perforated Film Machine for Baby Diaper
Best Price Perforated Film Machine for Baby Diaper
Best Price Perforated Film Machine for Baby Diaper
Wooden case is available for breathable PE Film machine
- Supply the complete drawings for installing the machine and send one or two technicians to buyer to install and adjust the machine and train operator of buyer. Or operator trainee coming to our factory for study.
- The seller guarantee the eligible production can be make out by the machine supplied by seller at buyer’s company.
- Supply complete service.

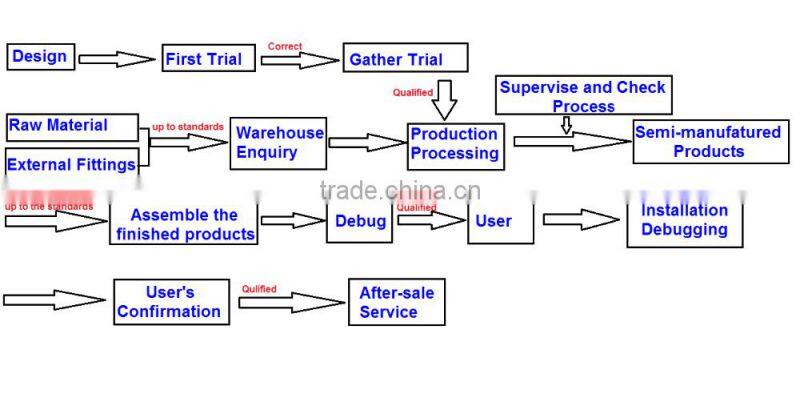

Quality Control of breathable PE Film machine
Long distance separates no bosom friends. Welcom your chatting.
Quality comes from Power
Professional makes Perfect
Wuhan Handern Machinery Company, Top 10 Plastic Machine Supplier
Plastic Film extrusion machine
Questions about breathable PE Film machine
1. Price
Please offer the width and thickness you require, so we can equip extruders and moulds for you and offer the most reasonable price.
2. Validity of Price
Three month
3. Payment Terms
30% contract value (T/T) to our bank as deposit. 70% contract value (T/T) to our bank before delivery;
4.Quality and brand orientation
We have passed CE and ISO9001:2008 certificate. Our quality orientation is high quality machines. Provide high quality products and help customers make more profits are our continuous pursuit forever.
5.Professional Degree
We believe high quality products are based on high professional degree. If you are interested in our plastic machines, Handern will be your best choice.
Contact Us
- Wuhan Handern Machinery Co., Ltd.
- Contact nameAnita Cao Chat Now
- Phone86-27-83233055
- AddressJinghe, Wuhan, Hubei
