paper extrusion laminating machines
- 7 Set / Sets per Month
- Wuhan
- T/T
- Single-ended carbon fiber heat lamps 500mm 800w infrared heat lamps
- 1300w 670mm far infrared heat lamp frosted carbon fiber heat lamps
- 220v 1300w 670mm infrared carbon fiber heating lamp frosted carbon fiber heat lamps
- 400mm 600w infrared quartz lamp replacement carbon fibre heating lamp
- 400mm 600w infrared quartz heating element carbon fiber quartz tubes
- 230v 1200w infrared paint lamp infrared carbon fiber heating lamp for DTF machines
Product Details
Condition: | New | Application: | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | Packaging Type: | Bags, Barrel, Belt, Bottles, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch |
Packaging Material: | Paper, Plastic | Automatic Grade: | Automatic | Driven Type: | Mechanical |
Voltage: | 380V | Power: | 30W | Place of Origin: | Hubei, China |
Brand Name: | Handern | Model Number: | paper extrusion laminating machine | Dimension(L*W*H): | 9600x2400x3300mm |
Weight: | 20T | Certification: | CE Certification ISO9001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Paper Extrusion laminating machine
General Features of paper extrusion laminating machine
- a reasonable design to operate easily;
- automatic temperature control, material feeding, and high-precision extrusion die to ensure extrusion quality
- Available with automatic tension control, the unwinding unit, lamination unit and take-up unit (winding unit) are in sync with each other.
- The winding unit takes up the laminate at the same high speed even when the laminate roll needs replacing. This greatly reduces machine downtime.
- Other desirable features on this single-side cast film extrusion lamination line include variable-frequency drive, PLC human-machine interface, linkage control, corona treatment device, automatic deviation correction unit, finished laminate metering device, adjustable edge-cutter and edge guide.
Technical Specifications of paper extrusion laminating machine
paper extrusion laminating machine | 950mm | 1150mm | 1350mm | 1750mm | 1950mm |
Width | 800mm | 1000mm | 1200mm | 1650mm | 1800mm |
Extruder Powder | 30KW | 30KW | 37 KW | 37 KW | 45 KW |
Extruder Screw | Ø80 | Ø90 | Ø90 | Ø90 | Ø100 |
Maximum Extrusion Output | 160kg/h | 180kg/h | 220kg/h | 240kg/h | 260kg/h |
Resin | LDPE, LDPP laminating resin | ||||
Base Material | Paper (35-350g/m2), non-woven fabric, woven cloth, aluminum foil | ||||
Mechanical Speed | 80-120 m/min | ||||
Coating Thickness | 0.012mm-0.05mm | ||||
Diameter of Wound and Unwound Rolls | Ø1200mm-Ø1500mm (friction-type winding) | ||||
Diameter of Auxiliary Unwound Rolls | Ø300mm---Ø450mm | ||||
Variable Frequency Drive (for tension control) | Vector control variable frequency drive (automatic tension control) | ||||
Electrical Control | PLC system with human-machine interface | ||||
Dimensions (L×W×H) | 11000mm × 7000-9000mm × 3000mm |

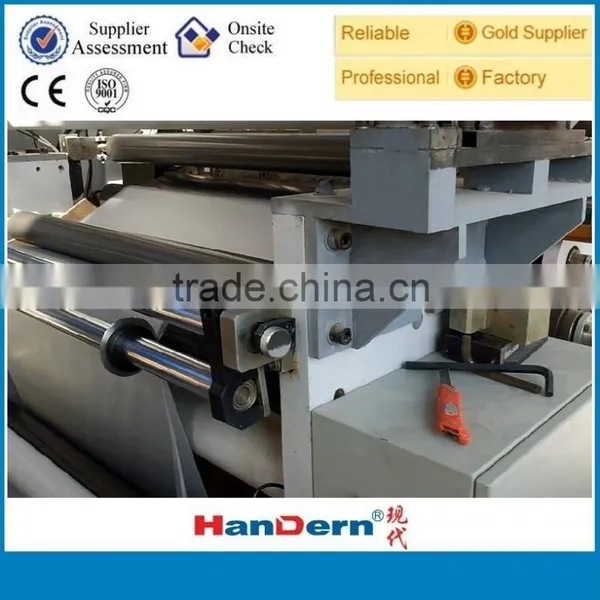

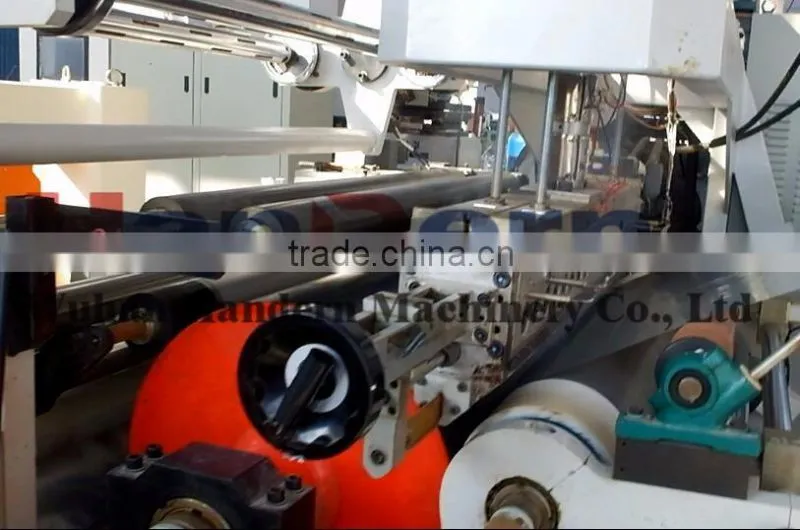

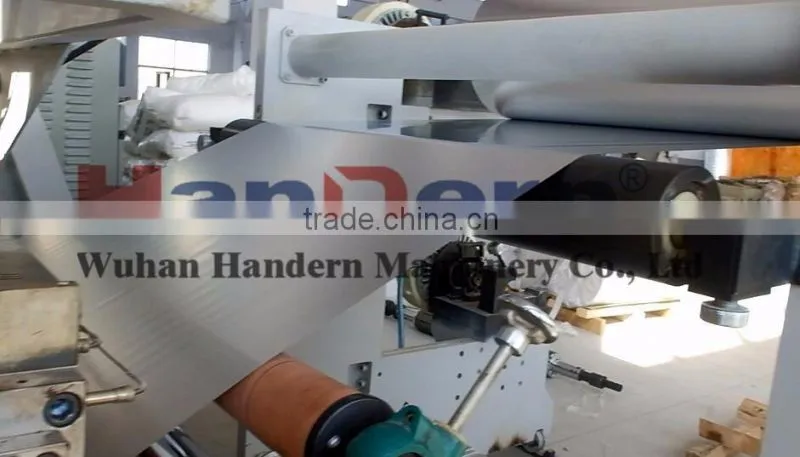

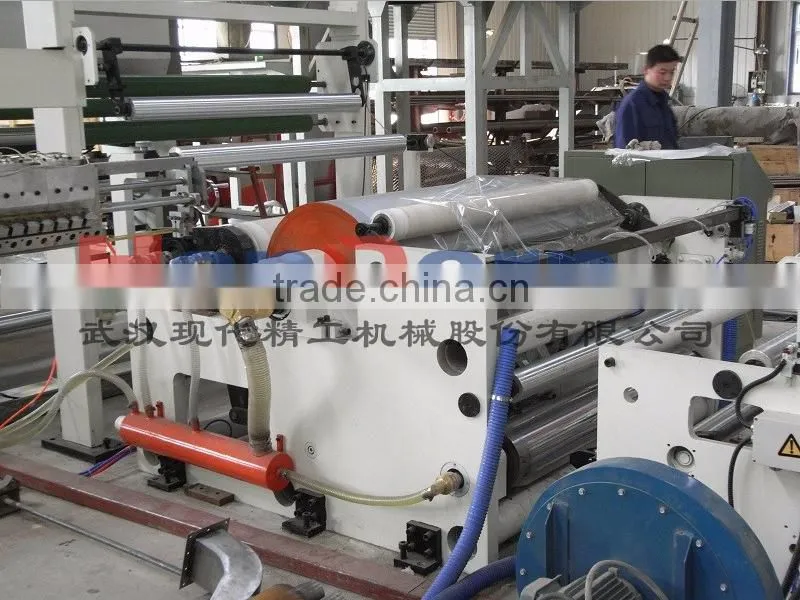

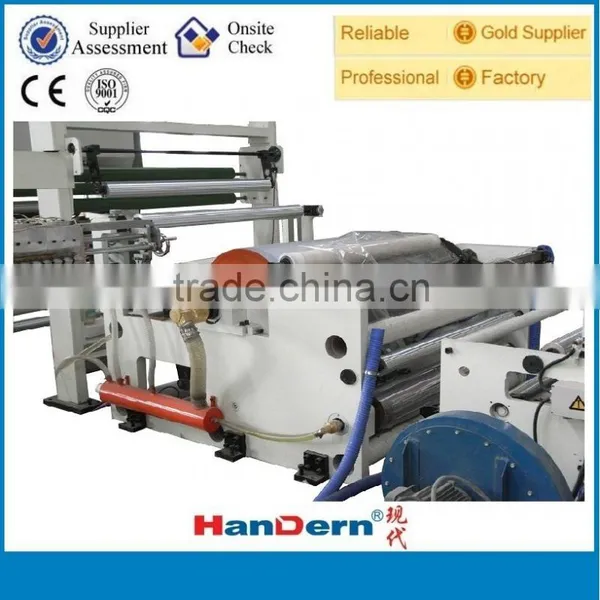

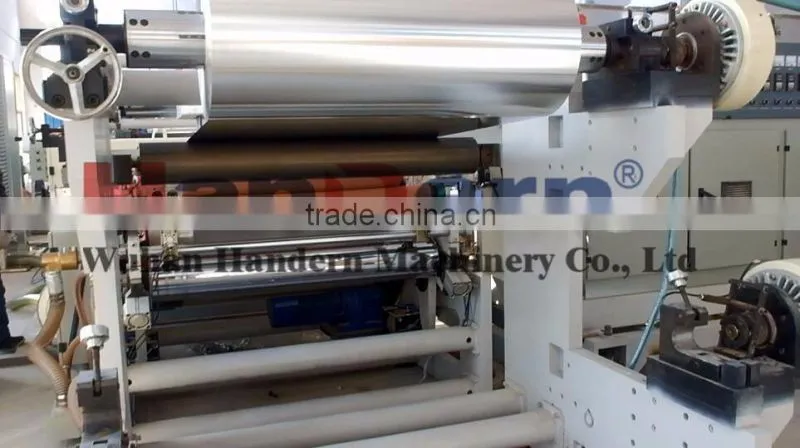

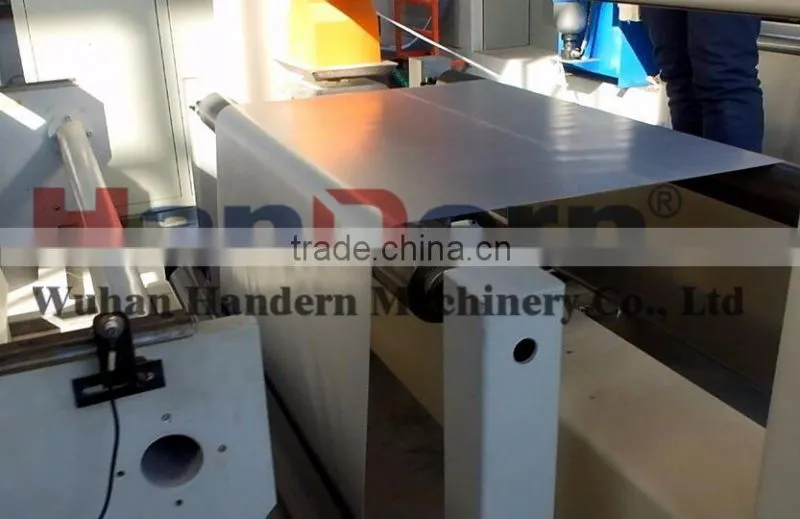

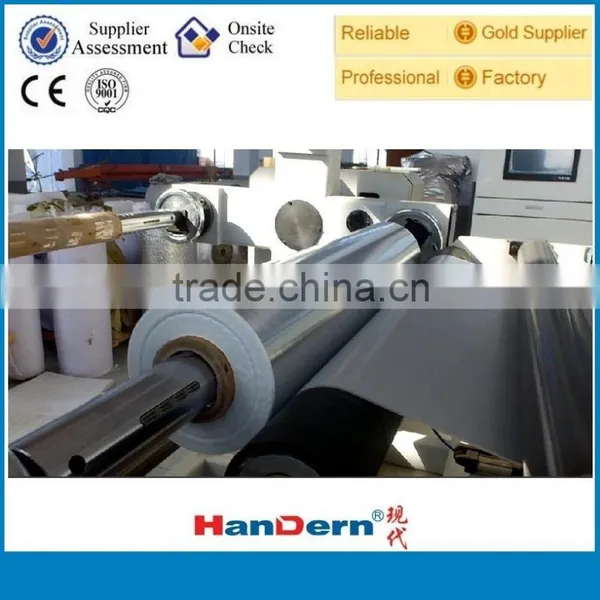

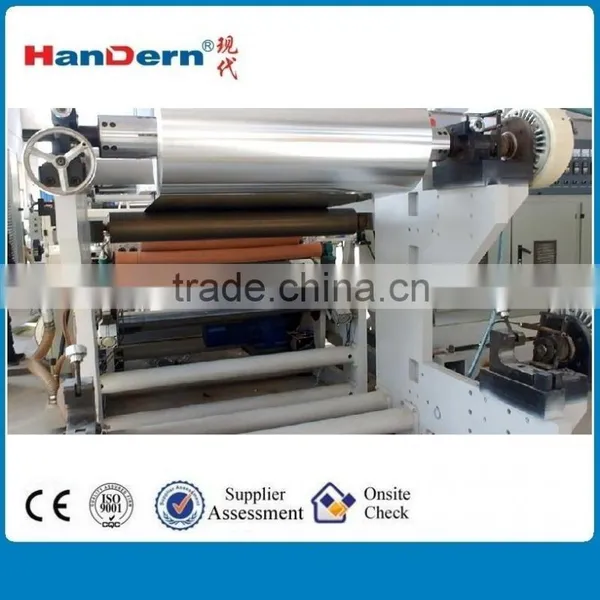

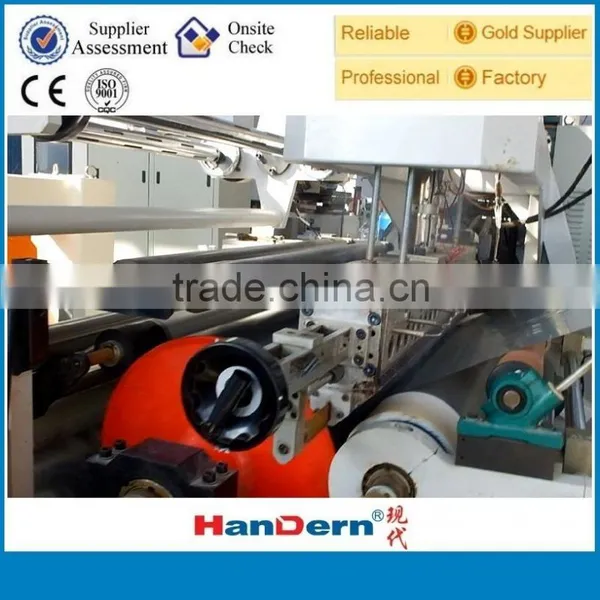

Pictures of paper extrusion laminating machine
paper extrusion laminating machine
paper extrusion laminating machine
paper extrusion laminating machine
paper extrusion laminating machine
paper extrusion laminating machine
paper extrusion laminating machine
paper extrusion laminating machine
paper extrusion laminating machine
Wooden case for paper extrusion laminating machine
Service:
Presale Service:
1)Select equipment model;
2)Design and manufacture products according to clients' special requirements
3)Train technical personnel for clients
Service during the sale
1)check products ahead of delivery
2)Help clients to draft solving plans
After-sale Service
1)Provide considerate service to minimize clients' worries
2)help clients to prepare for the first construction scheme
3)Install and debug the equipment
4)Train operators for clients
5)Examine the machine
6)Take initiatives to eliminate the troubles rapidly
7)Provide perfect service
8)Provide technical exchange.

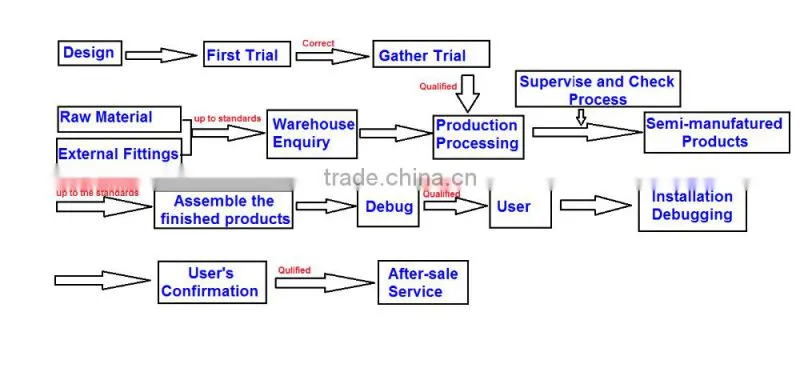

Quality Control of paper extrusion laminating machine
Reliable Supplier
Questions about paper extrusion laminating machine
1. Price
Please offer the width and thickness you require, so we can equip extruders and moulds for you and offer the most reasonable price.
2. Validity of Price
Three month
3. Payment Terms
30% contract value (T/T) to our bank as deposit. 70% contract value (T/T) to our bank before delivery
4.Quality orientation
We have passed CE and ISO9001:2008 certificate. Our quality orientation is high quality machines. Provide high quality products and help customers make more profits are our continuous pursuit forever.
5.Professional Degree
We believe high quality products are based on high professional degree. If you are interested in our plastic machines, Handern will be your best choice.
