Automatic Non Woven extrusion Laminating Machines
General Features of Automatic Non Woven extrusion Laminating Machines
- a reasonable design to operate easily;
- automatic temperature control, material feeding, and high-precision extrusion die to ensure extrusion quality
- Available with automatic tension control, the unwinding unit, lamination unit and take-up unit (winding unit) are in sync with each other.
- The winding unit takes up the laminate at the same high speed even when the laminate roll needs replacing. This greatly reduces machine downtime.
- Other desirable features on this single-side cast film extrusion lamination line include variable-frequency drive, PLC human-machine interface, linkage control, corona treatment device, automatic deviation correction unit, finished laminate metering device, adjustable edge-cutter and edge guide.
Technical Specifications of Automatic Non Woven extrusion Laminating Machines
| Automatic Non Woven extrusion Laminating Machines | 950mm | 1150mm |
1350mm |
1750mm | 1950mm |
| Width | 800mm | 1000mm | 1200mm | 1650mm | 1800mm |
| Extruder Powder | 30KW | 30KW | 37 KW | 37 KW | 45 KW |
| Extruder Screw | Ø80 | Ø90 | Ø90 | Ø90 | Ø100 |
| Maximum Extrusion Output | 160kg/h | 180kg/h | 220kg/h | 240kg/h | 260kg/h |
| Resin | LDPE, LDPP laminating resin | ||||
| Base Material | Paper (35-350g/m2), non-woven fabric, woven cloth, aluminum foil | ||||
| Mechanical Speed | 80-120 m/min | ||||
| Coating Thickness | 0.012mm-0.05mm | ||||
| Diameter of Wound and Unwound Rolls | Ø1200mm-Ø1500mm (friction-type winding) | ||||
| Diameter of Auxiliary Unwound Rolls | Ø300mm---Ø450mm | ||||
| Variable Frequency Drive (for tension control) | Vector control variable frequency drive (automatic tension control) | ||||
| Electrical Control | PLC system with human-machine interface | ||||
| Dimensions (L×W×H) |
11000mm × 7000-9000mm × 3000mm |
||||
Pictures of Automatic Non Woven extrusion Laminating Machines
Automatic Non Woven extrusion Laminating Machines
Automatic Non Woven extrusion Laminating Machines
Automatic Non Woven extrusion Laminating Machines

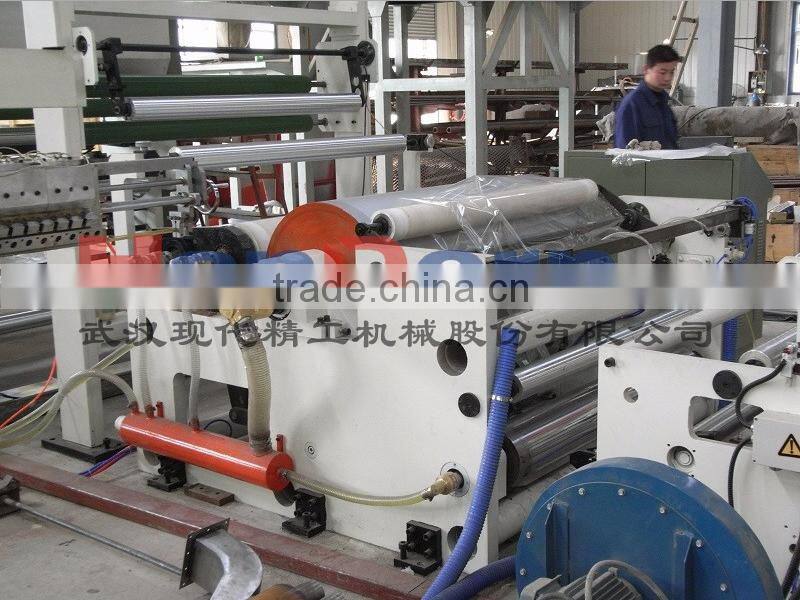

Automatic Non Woven extrusion Laminating Machines
Automatic Non Woven extrusion Laminating Machines
Automatic Non Woven extrusion Laminating Machines
Automatic Non Woven extrusion Laminating Machines
Automatic Non Woven extrusion Laminating Machines
Wooden case for Automatic Non Woven extrusion Laminating Machines
Service:
Presale Service:
1)Select equipment model;
2)Design and manufacture products according to clients' special requirements
3)Train technical personnel for clients
Service during the sale
1)check products ahead of delivery
2)Help clients to draft solving plans
After-sale Service
1)Provide considerate service to minimize clients' worries
2)help clients to prepare for the first construction scheme
3)Install and debug the equipment
4)Train operators for clients
5)Examine the machine
6)Take initiatives to eliminate the troubles rapidly
7)Provide perfect service
8)Provide technical exchange.
Quality Control of Automatic Non Woven extrusion Laminating Machines
Reliable Supplier
Questions about Automatic Non Woven extrusion Laminating Machines
1. Price
Please offer the width and thickness you require, so we can equip extruders and moulds for you and offer the most reasonable price.
2. Validity of Price
Three month
3. Payment Terms
30% contract value (T/T) to our bank as deposit. 70% contract value (T/T) to our bank before delivery
4.Quality orientation
We have passed CE and ISO9001:2008 certificate. Our quality orientation is high quality machines. Provide high quality products and help customers make more profits are our continuous pursuit forever.
5.Professional Degree
We believe high quality products are based on high professional degree. If you are interested in our plastic machines, Handern will be your best choice.
