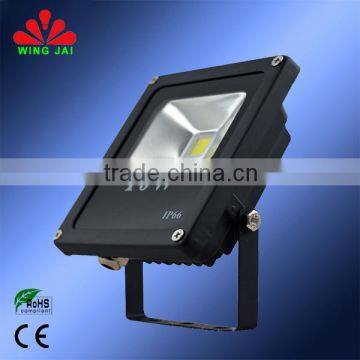

2015 new hot sale ultra thin super bright ce rohs led flood lights 10w
| Model NO | Size | Lumens | LED Type | Beam angle | Color temperature |
| WJ-FG2-10W | 128*120*45mm | 800lm±10% | Epistar COB | 120 | 2700K-6500K |
| WJ-FG2-20W | 185*180*50mm | 1600lm±10% | Epistar COB | 120 | 2700K-6500K |
| WJ-FG2-30W | 228*225*55mm | 2400lm±10% | Epistar COB | 120 | 2700K-6500K |
| WJ-FG2-50W | 285*274*65mm | 4000lm±10% | Epistar COB | 120 | 2700K-6500K |
1. Energy-saving with high efficency LED making, environment friendly and
long lifespan upto 50,000 hours.
2. Special reflector made from die cast aluminum for the best light diffusing.
3. Antisepticise closed silicone ring for light dustproof and waterproof.
4. Both AC and DC voltage are available.
5. Luminous flux ≥ 2 times of HPS.
6. Waterproof, encapsulated by good thermal conductive silicone glue.
7. In order to meet the different irradiation angles,light direction can be
adjusted.
8. Use high-quality silicone gaskets,high performance waterproof.
9. Finished with epoxy powder paint,resistant to corrosion,no fading.
10. Wide beam angle,huge lighting area.
11. Anti-shock,anti-hit led flood light.
Model NO |
WJ-FG2-20W |
|
Power |
20W |
|
Input volt |
AC220V-AC260V&12V/24V |
|
Frequency |
50Hz-60Hz |
|
PF |
≥0.9 |
|
Beam angle |
120 degree |
|
LED Qty |
1pc COB |
|
LED Brand |
Epistar |
|
LED Light efficency |
80lm/W |
|
Luminous flux |
1600lm±10% |
|
Luminous efficency |
>95% |
|
Color temperature |
Warm white |
2800K-3500K |
Nature white |
4000K-4500K |
|
Cool white |
6000K-6500K |
|
CRI(Ra) |
|
>75 |
Environment temperature |
-40℃to+60℃ |
|
Storage temperature |
-25℃~65℃ (25℃ best) |
|
Lifespan |
50000 h |
|
material |
Die-casting Aluminum+ reflector+ glass |
|
Unit size |
185*180*50mm |
|
Packaging |
40.5*33*22.5cm/12units/13.5KG |
|
Waterproof |
IP65 |
|
Certificates |
CE, RoHS |
|
Warranty |
3 years |
|
Series other available model |
10W/30W/50W |
|
