PC Currogated Roofing sheet production line
High output PC hollow profile sheet extrusion line
PC Currogated Roofing sheet production line

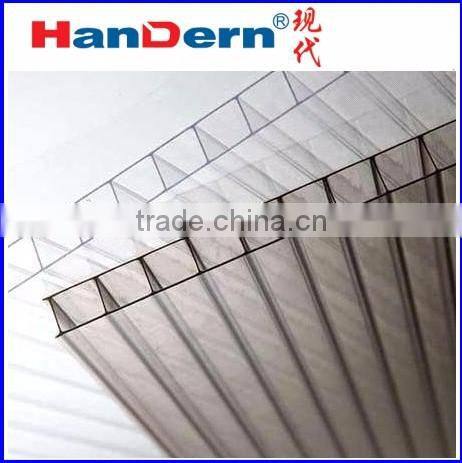

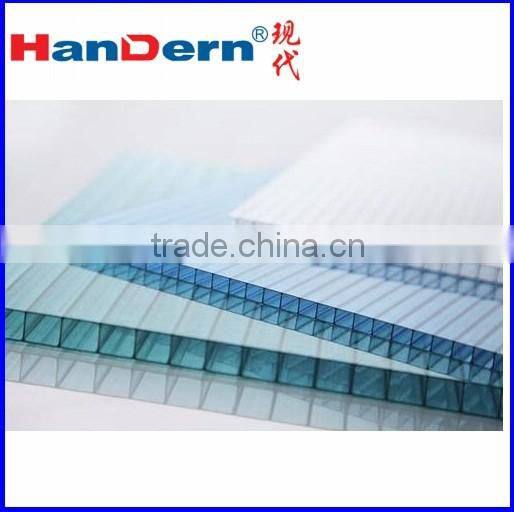

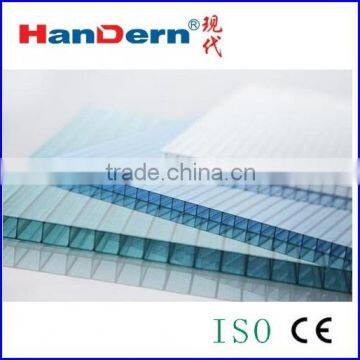

PC hollow profile sheet extrusion machine is to produce PC hollow sheet, which have more advantages over cardboards;
1) Light Weight
2) Innocuous, non-taste
3) Waterproof, moisture resistance
4) Strong impact resistance
5) Ageing resistant
6) Corrosion resistant
7) Heat and sound insulation
8) Recycling/environment-friendly
Applications
1) Packing Material: Instead of the traditional packing material such as corrugated paper, wood board, etc.
2) Turnover box: the container of electric parts, food, drink.
3) Advertising Board: advertising board, show board, brand mark, light box board, etc.
4) Industry Uses: Protection board, padding board, luggage carrier, separating board, baseboard, cross board for all things

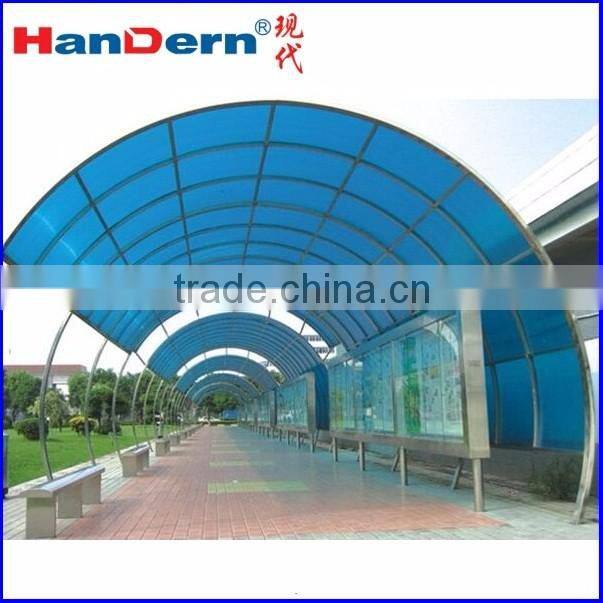

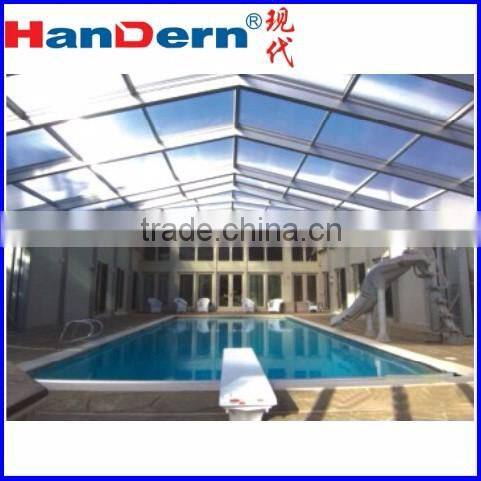

5)Construction Board: Partition, protection board of wall, ceiling board
Parameters of the PC Currogated Roofing sheet production line
| Number | Item | Unit | Quantity |
| 1 | Extruder with single screw | set | 1 |
| 2 | Screen Changer | set | 1 |
| 3 | Die | set | 1 |
| 4 | Vaccum Calibrator | set | 1 |
| 5 | First haul-off unit | set | 1 |
| 6 | Drying oven | set | 1 |
| 7 | Cooling Device | set | 1 |
| 8 | Second haul-off unit | set | 1 |
| 9 | Cutting device | set | 1 |
| 10 | Electrical control Cabinet | set | 1 |
| 11 | Stacker Unit | set | 1 |
| 12 | Screw feeder | set | 1 |
Specifications of PC Currogated Roofing sheet production line
Machine type | 1400 | 1800 | 2300 | 2700 |
Max sheet width(mm) | 1250 | 1650 | 2150 | 2550 |
Sheet thickness(mm) | 2-6 6-12 15-20 | 2-6 6-12 15-20 | 2-6 6-12 | 2-6 6-12 |
Line Speed(m/min) | 1-6 2-10 | 1-6 2-10 | 1-6 2-10 | 1-6 2-10 |
Max output(kg/h) | 180-260 | 220-350 | 320-450 | 360-500 |
Motor power(kw) | 55-90 | 75-110 | 90-132 | 110-160 |
Screw Model | SJ105/36 | SJ110/36 | SJ120/36 | SJ135/36 SJ150/36 |
Advantages of PC Currogated Roofing sheet production line
New design screw extruder: line with market demands and adapt to many kinds of raw materials, with the advantages of good plasticizing, uniform distribution and high output.
Hydraulic pressure screen exchange: short course of changing screen and stable operation of operators

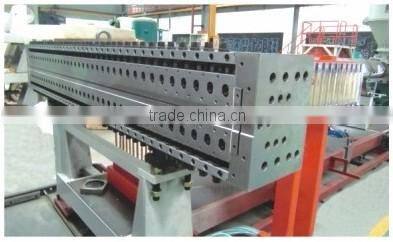

Molding die: with high quality alloy steel lips and restrict bars to ensure even pressure and uniform thickness of the finished sheet.

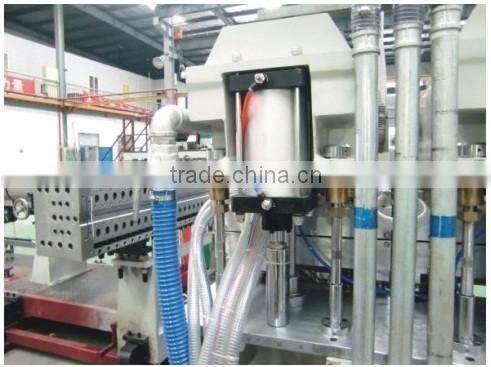

Vacuum Calibrator: convective heat with array interleaved to ensure high precise calibration. the vacuum system composes two independent subsystem, equipped with several closed loop vacuum lines, which carries vacuum regulating system and vacuum displaying system, to ensure stable and even vacuum degree of sheet surface.
Haul off Device:
First haul off device is of high power, high reduction gear ratio, multi roll type, high traction, to draw the sheet up from calibrator evenly and synchronizedly.
Second haul off device is to remove stress and equipped with edge cutting device to ensure effective width and smooth cutting.
Cutting Machine: Accurate imported automatic length indicator, adopts electric fly cutting and traversing cutting.
Electrical control system: adopt PLC to control precise parameters.
Process Flow of PC Currogated Roofing sheet production line
Feeding→extrusion→exchange screen→Die→Calibrator→first haul off →heat treating oven →Cooling→second haul off →cutting→stacking
Benifits of PC Currogated Roofing sheet production line
1. Required high production efficiency
2. Production flexibility( controllable sheet thickness and width, for example, you can produce 2-6mm thick sheet with the same mould or machine)
3. Reliability and stability
4.Excellent Adaptability to different raw material and reach over 30% production cost reduction.
5. Size and shape diversity of finished products

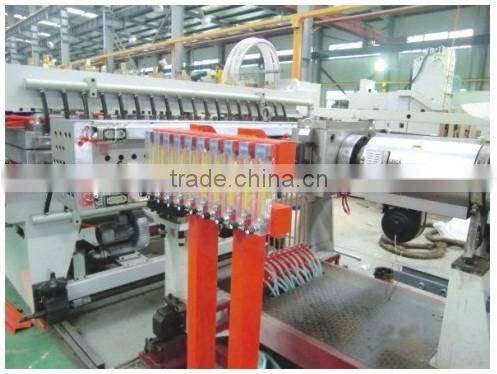

Pictures of PC Currogated Roofing sheet production line

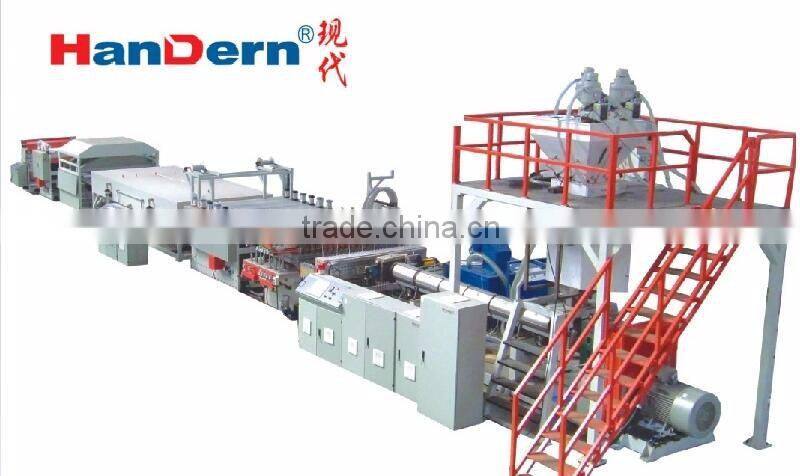

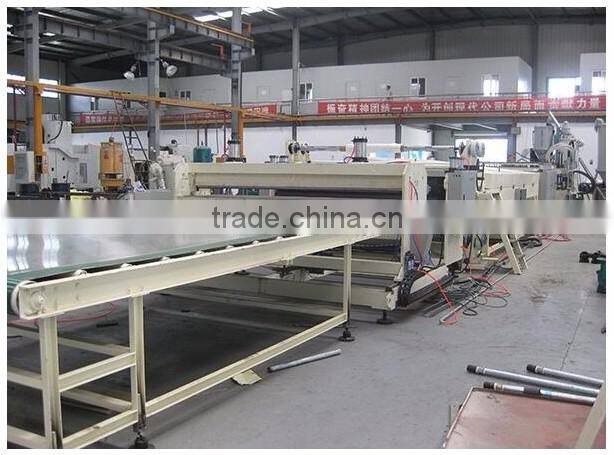

1400mm PC Currogated Roofing sheet production line
1600mm PC Currogated Roofing sheet production line
1800mm PC Currogated Roofing sheet production line
2000mm PC Currogated Roofing sheet production line
Service of PC Currogated Roofing sheet production line
Presale Service:
1)Select equipment model;
2)Design and manufacture products according to clients' special requirements
3)Train technical personnel for clients
Service during the sale
1)check products ahead of delivery
2)Help clients to draft solving plans
After-sale Service
1)Provide considerate service to minimize clients' worries
2)help clients to prepare for the first construction scheme
3)Install and debug the equipment
4)Train operators for clients
5)Examine the machine
6)Take initiatives to eliminate the troubles rapidly
7)Provide perfect service
8)Provide technical exchange.
Quality Control System of PC Currogated Roofing sheet production line
Wuhan Handen Machinery Co.Ltd
tel:8613986280012
Skype: anitacao27
Wechat: anita_oo
