Polycarbonate corrugated Sheet production line
Polycarbonate corrugated Sheet production line

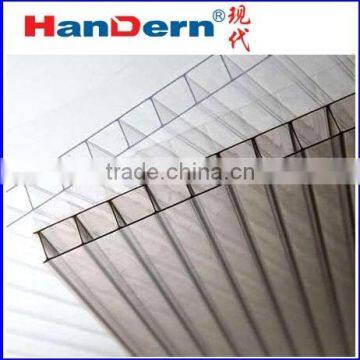

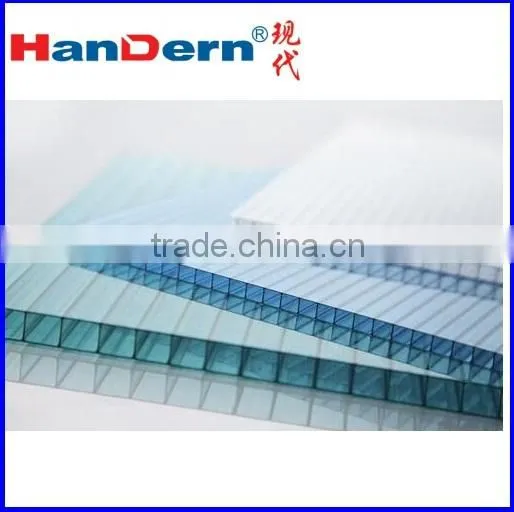

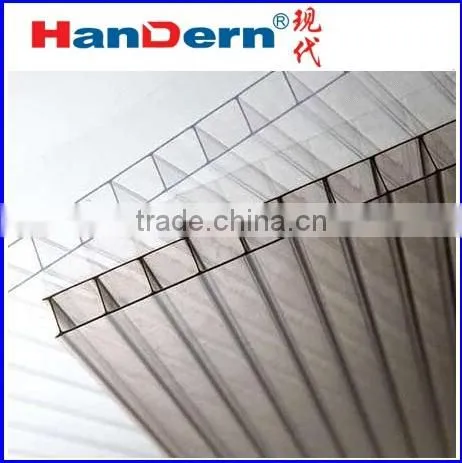

Polypropylene Hollow Sheet production line is to manufacture PP PE PC Hollow sheet or hollow sheet, which have many advantages than cardboard.
Applications
NO
| Field | Application |
1
| Packing Material | packing sheet, packing box ,packaging |
2
| Turnover box | container of electric parts, food, drink |
3
| Advertising Board | advertising board, show board, brand mark, light box board |
4
| Industry Uses | Protection board, padding board, luggage carrier, separating board, baseboard, cross board for all things |
5
| Construction Board | Partition, protection board of wall, ceiling board |
Parameters of Polycarbonate corrugated Sheet production line
| No | Item | Unit | Quantity |
1
| Extruder with single screw | set | 1 |
2
| Screen Changer | set | 1 |
3
| Die | set | 1 |
4
| Vaccum Calibrator | set | 1 |
5
| First haul-off unit | set | 1 |
6
| Drying oven | set | 1 |
7
| Cooling Device | set | 1 |
8
| Second haul-off unit | set | 1 |
9
| Cutting device | set | 1 |
10
| Electrical control Cabinet | set | 1 |
11
| Stacker Unit | set | 1 |
12
| Screw feeder | set | 1 |
Process Flow of Polycarbonate corrugated Sheet production line
Feeding→extrusion→exchange screen→Die→Calibrator→first haul off →heat treating oven →Cooling→second haul off →cutting→stacking
Specifications of Polycarbonate corrugated Sheet production line
| Machine type | 1400 | 1800 | 2300 | 2700 |
| Max sheet width(mm) | 1250 | 1650 | 2150 | 2550 |
| Sheet thickness(mm) | 2-6 6-12 12-20 | 2-6 6-12 12-20 | 2-6 6-12 | 2-6 6-12 |
| Line Speed(m/min) | 1-6 2-10 | 1-6 2-10 | 1-6 2-10 | 1-6 2-10 |
| Max output(kg/h) | 180-260 | 220-350 | 320-450 | 360-500 |
| Motor power(kw) | 55-90 | 75-110 | 90-132 | 110-160 |
| Screw Model | SJ105/36 | SJ110/36 | SJ120/36 | SJ135/36 SJ150/36 |
Advantages of Polycarbonate corrugated Sheet production line
| Main Parts | Features | Advantages |
| screw extruder | New design screw extruder advanced temperature control system | good plasticizing uniform distribution |
Hydraulic pressure screen exchange | short couse of changing screen stable operation of operators | time consumption energy consumption |
| Molding die | high quality alloy steel lips restrictor bars | even pressure uniform thickness |
| Vacuum Calibrator | convective heat with array interleaved two independent subsystem | high precise calibration stable and even vacuum degree of sheet surface
|
| Haul off Device | First haul off device Second hauloff device | effective width smooth cutting |
| Cutting Machine | Accurate automatic length indicator | electric fly cutting traversing cutting |
| Electrical control system | PLC | precise parameters |
Benefits of Polycarbonate corrugated Sheet production line
1. Required high production efficiency
2. Production flexibility( controllable sheet thickness and width, for example, you can produce 2-6mm thick sheet with the same mould or machine)
3. Reliability and stability
4.Excellent Adaptability to different raw material and reach over 30% production cost reduction.
5. Size and shape diversity of finished products

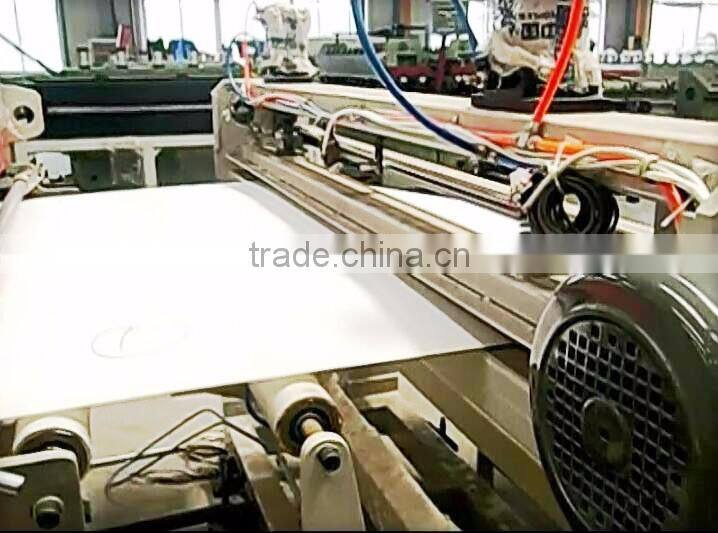

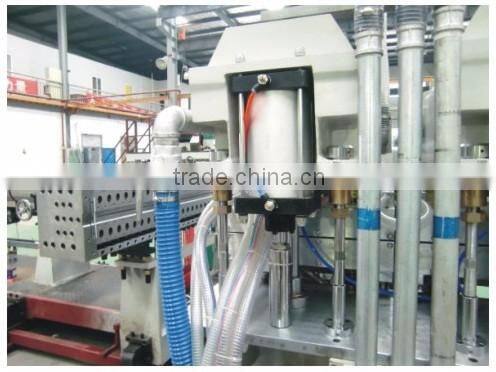

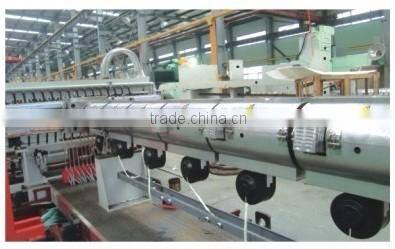

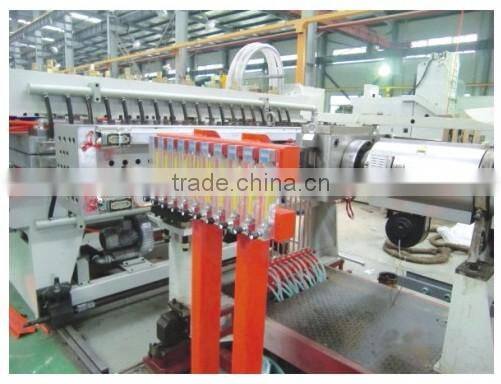

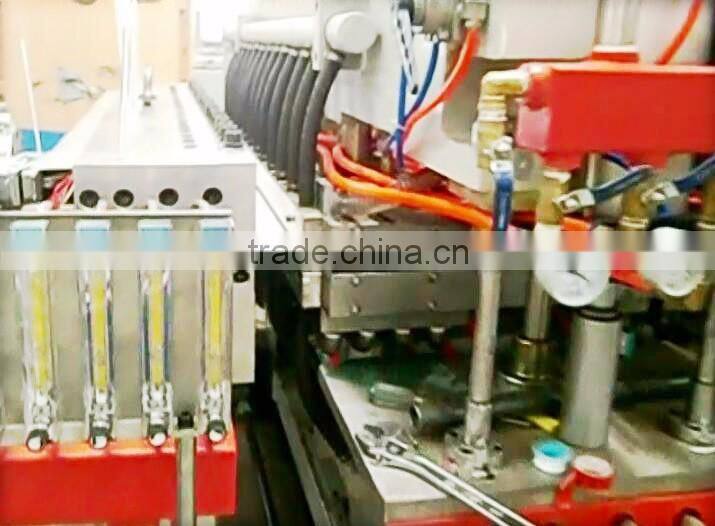

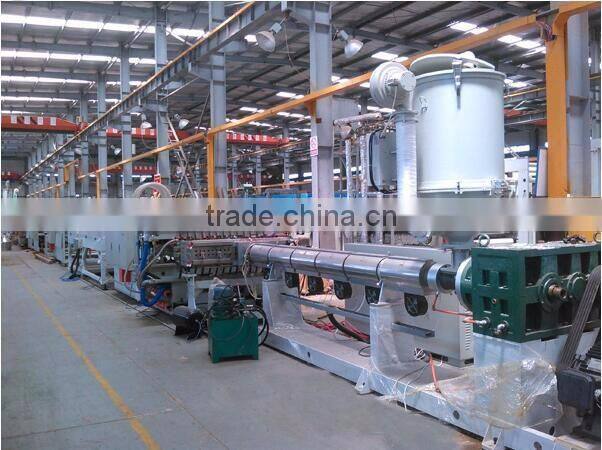

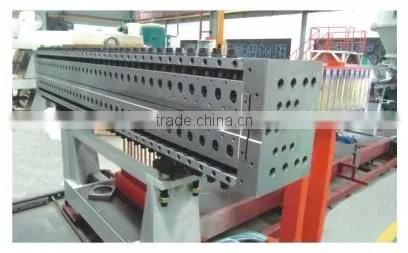

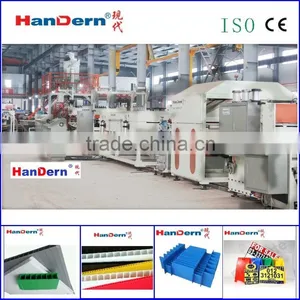

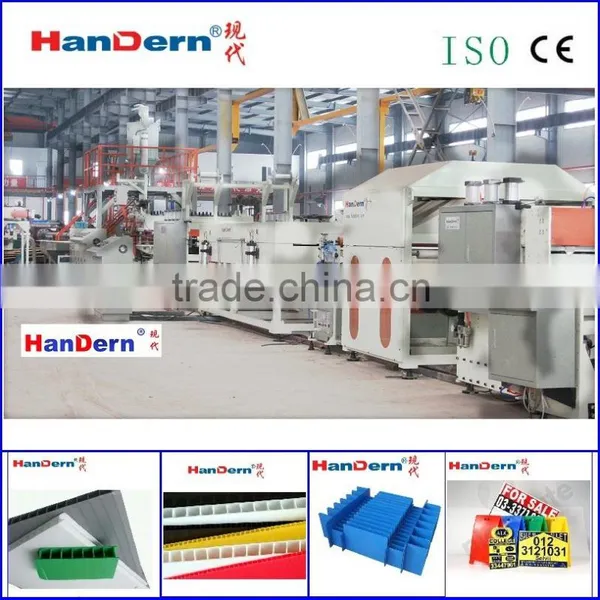

Pictures of Polycarbonate corrugated Sheet production line
1250mm Polycarbonate corrugated Sheet production line are professionally manufactured through the plastic equipment with more than 15 years' experience
1650mm Polycarbonate corrugated Sheet production line are CE certified, which assures your legal right.
2150mm Polycarbonate corrugated Sheet production line are ISO9001:2008 certified, which guarantee the product quality.
2550mm Polycarbonate corrugated Sheet production line offer the custom service and engineer available to service overseas, which can meet your requirement better and solve the problem in the process of operation.
Service:
Presale Service:
1)Select equipment model;
2)Design and manufacture products according to clients' special requirements
3)Train technical personnel for clients
Service during the sale
1)check products ahead of delivery
2)Help clients to draft solving plans
After-sale Service
1)Provide considerate service to minimize clients' worries
2)help clients to prepare for the first construction scheme
3)Install and debug the equipment
4)Train operators for clients
5)Examine the machine
6)Take initiatives to eliminate the troubles rapidly
7)Provide perfect service
8)Provide technical exchange.
Quality control of Polycarbonate corrugated Sheet production line
