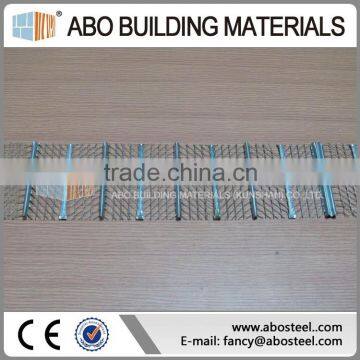

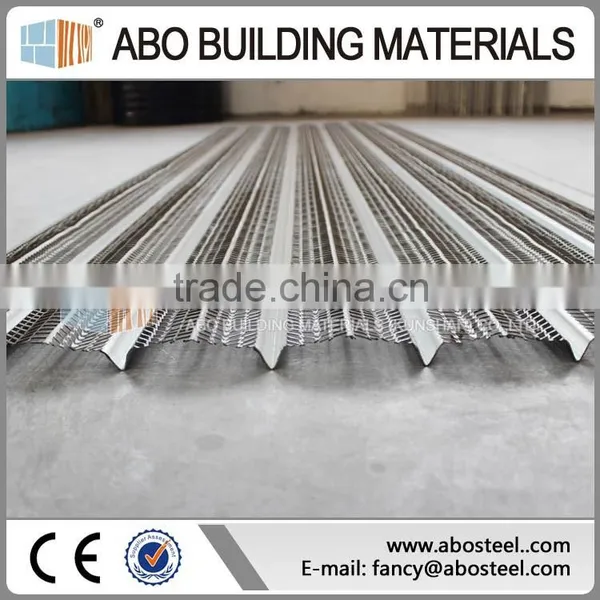

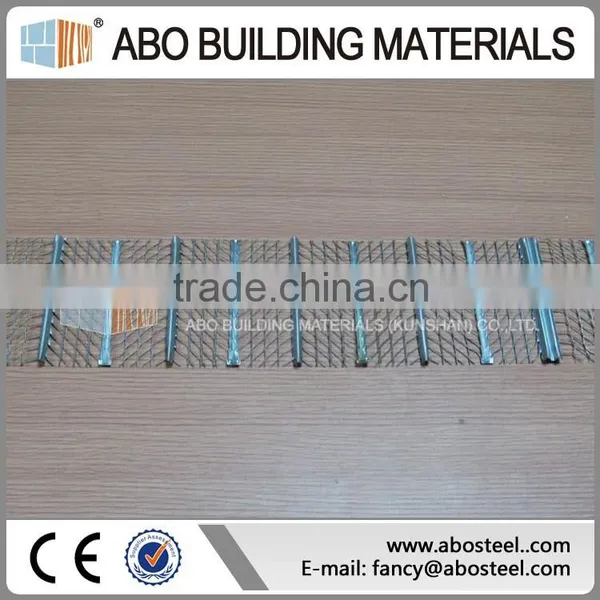

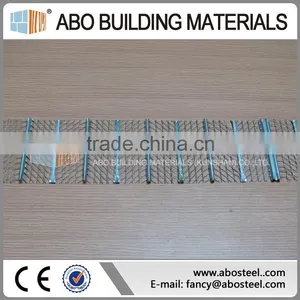

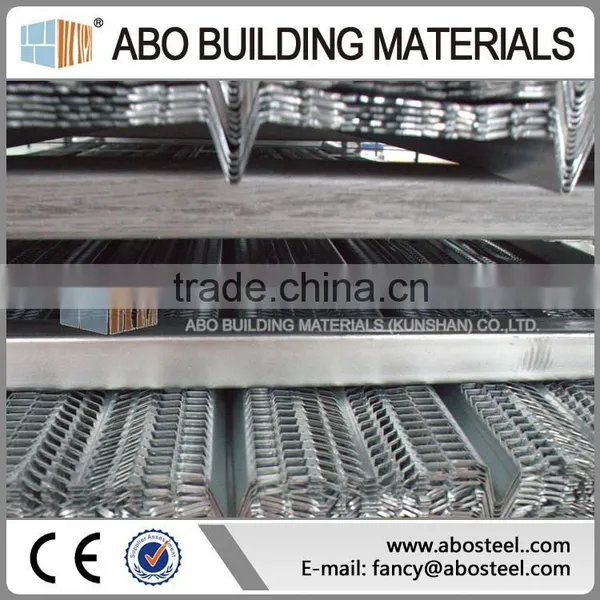

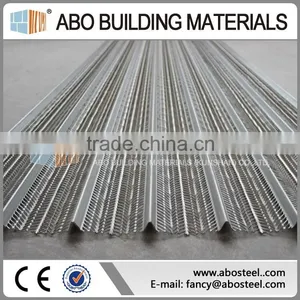

Rib lath is expanded metal-lath stiffened with longitudinal ribs. A more rigid lath that the diamond mesh,Flat Rib lath with its 1/8” longitudinal ribs at 3” on center, provide for greater stiffness allowing wider spacing between wooden or metal supports. The furring design of the mesh provides efficient background plaster for construction of partition, suspended ceilings and refurbishment works. The advantage of ribbed- lath over metal-lathing is that support centers can be increased or widened. Flat Rib Lath is available in paper-backed in either K (Kraft) paper, or with D paper.Sizes and specifications can be customized.

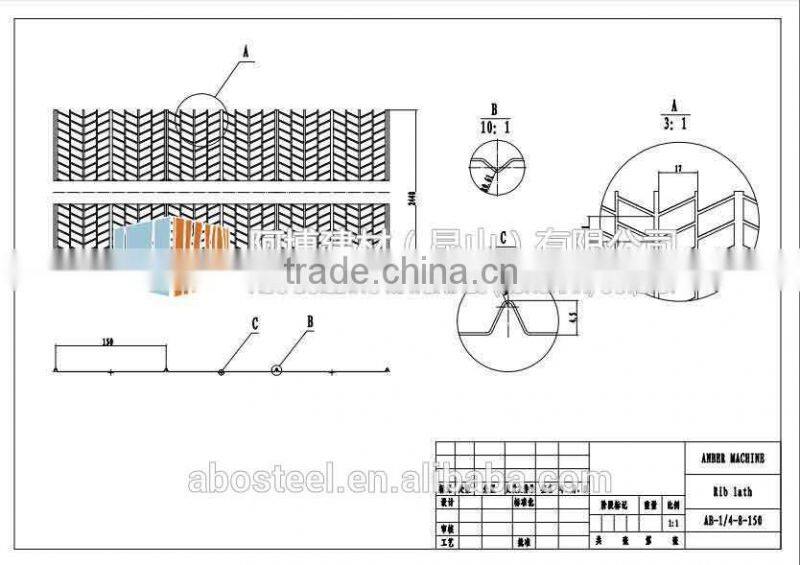

Below is drawing of rib lath for your reference, please check with us as finally confirmation.
Model |
Rib Height |
Rib Distance |
Width |
Aperture Size |
Remark |
AB-1/8-4-75-450 |
1/8" |
75 |
450 |
9*17 |
9-rib & 4-aperture |
AB-3/8-4-75-450 |
3/8" |
75 |
450 |
9*17 |
9-rib & 4-aperture |
AB-1/8-4-75-600 |
1/8" |
75 |
600 |
9*17 |
9-rib & 4-aperture |
AB-3/8-4-75-600 |
3/8" |
75 |
600 |
9*17 |
9-rib & 4-aperture |
AB-1/8-4-75-750 |
1/8" |
75 |
750 |
9*17 |
9-rib & 4-aperture |
AB-3/8-4-75-750 |
3/8" |
75 |
750 |
9*17 |
9-rib & 4-aperture |
Model |
Rib Height |
Rib Distance |
Width |
Aperture Size |
Remark |
AB-1/8-8-100-600 |
1/8" |
100 |
600 |
7*11 |
7-rib & 8-Aperture |
AB-3/8-8-100-600 |
3/8" |
100 |
600 |
7*11 |
7-rib & 8-Aperture |
AB-3/4-8-100-600 |
3/4" |
100 |
600 |
7*11 |
7-rib & 8-Aperture |
AB-5/8-8-100-600 |
5/8" |
100 |
600 |
7*11 |
7-rib & 8-Aperture |
AB-7/8-8-100-600 |
7/8" |
100 |
600 |
7*11 |
7-rib & 8-Aperture |
Model |
Rib Height |
Rib Distance |
Width |
Aperture Size |
Remark |
AB-1/8-4-100-600 |
1/8" |
100 |
600 |
9*20 |
7-rib & 4-aperture |
AB-3/8-4-100-600 |
3/8" |
100 |
600 |
9*20 |
7-rib & 4-aperture |
AB-3/4-4-100-600 |
3/4" |
100 |
600 |
9*20 |
7-rib & 4-aperture |
AB-5/8-4-100-600 |
5/8" |
100 |
600 |
9*20 |
7-rib & 4-aperture |
AB-7/8-4-100-600 |
7/8" |
100 |
600 |
9*20 |
7-rib & 4-aperture |
Model |
Rib Height |
Rib Distance |
Width |
Aperture Size |
Remark |
AB-1/8-8-150-600 |
1/8" |
150 |
600 |
11*17 |
5-rib & 8-aperture |
AB-1/4-8-150-600 |
1/4" |
150 |
600 |
11*17 |
5-rib & 8-aperture |
Model |
Rib Height |
Rib Distance |
Width |
Aperture Size |
Weight |
AB-3/8-8-100-686 |
3/8" |
98 |
686 |
7.2*9.5 |
4.3kg |
AB-5/8-8-100-686 |
5/8" |
98 |
686 |
7.2*9.5 |
5.6kg |
AB-3/4-8-100-686 |
3/4" |
98 |
686 |
7.2*9.5 |
6kg |
AB-7/8-8-100-686 |
7/8" |
98 |
686 |
7.2*9.5 |
6.5kg |

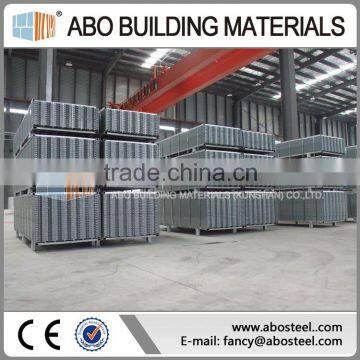

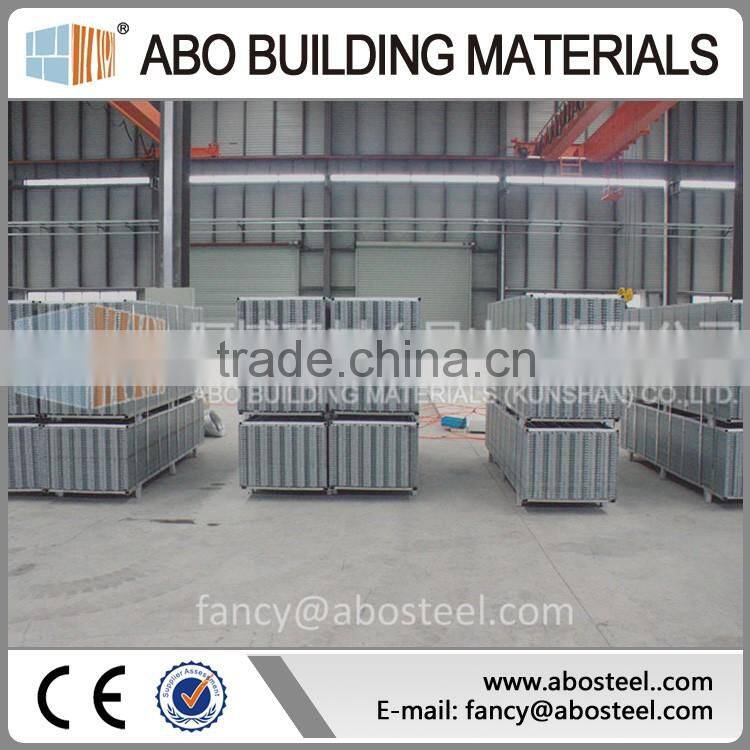

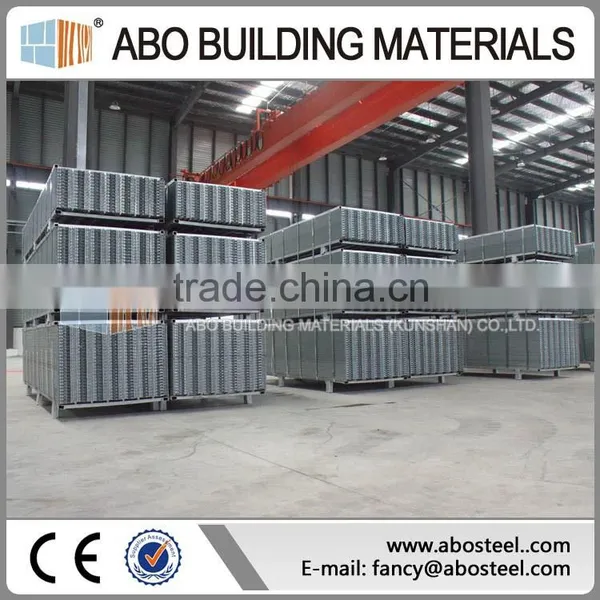

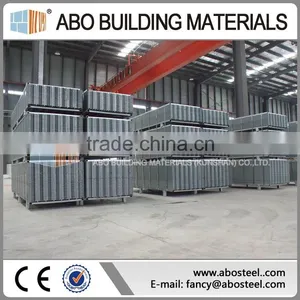

Normally, 380pcs rib lath per pallet, 6pallets for one 20' container. packing method can be customized accoring to client's requirements.

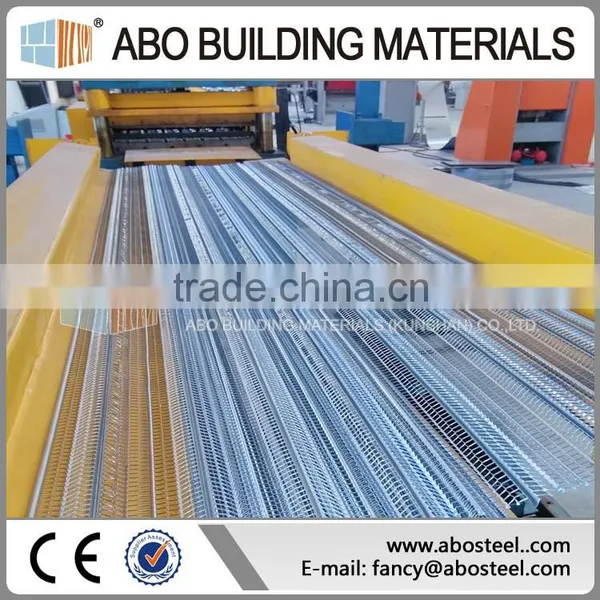

We a manufacturing and trading combo, produce and export build meshing, like Angle Beads, Rib Lath, Coil Mesh, etc. to overseas market for several years.
We have rich experience in this industry, skilled team workers, advanced production lines, strict quality control to make promise our products meet clients requirement.
Contact: Fancy Yuan
Cell/ WhatsApp/ Viber/imo: +86 13921196631
Check out our new booth! Come see the demo of our products and talk with our sales staff about your product needs.
"IBS & KBIS 2016" from Jan 19th to 21st in Las Vegas
Booth# C3434
1. Are you a trading company or manufacturer?
We a manufacturing and trading combo.
2. What is your factory strength?
All products of machines are made by ourselves, we have IT team to research the production line, let the final products meet the clients requirements.

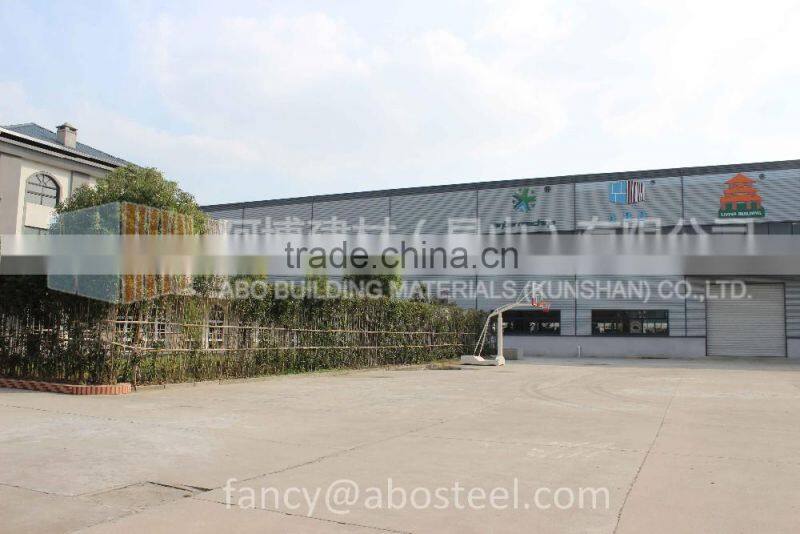

3.Where is ABO Building factory?
We are in Kunshan, 1hour driving from Shanghai airport.
4.What about the payment Terms?
Normally deposit 50% in advance.
5.What is your available port for shipment?
Shanghai seaport.
