PP corrugated sheet making line
PP corrugated sheet making line

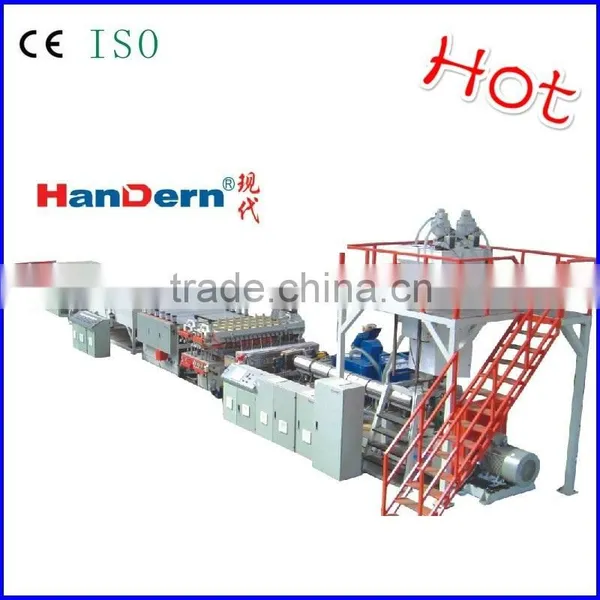

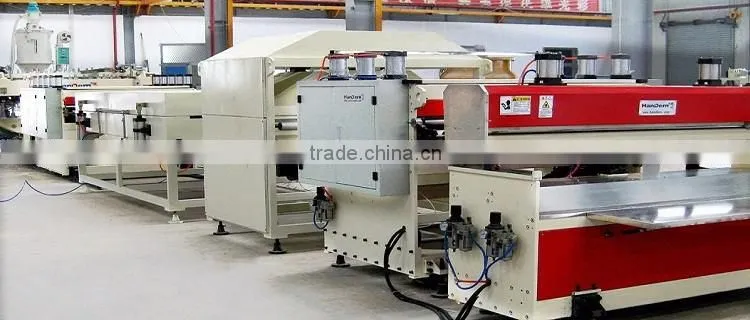

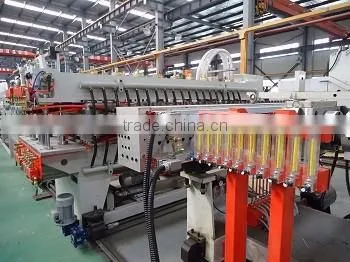

General overview of PP corrugated sheet extrusion line

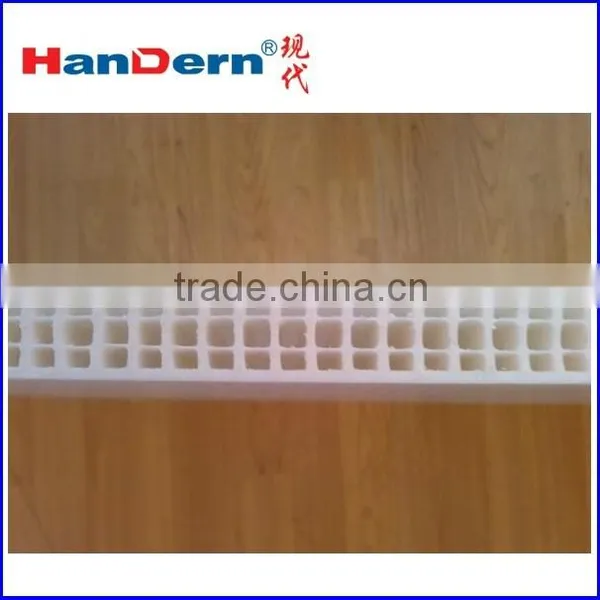

PP Polypropylene Corrugated plastic sheet extrusion machine is to produce PP corrugated sheet.
It is light weight,high stiffness, good electrical insulating, high impact strength, good dimensional stability and good creep resistance.
It is widely used in advertisement, decoration, packaging, sign board, building and agriculture.

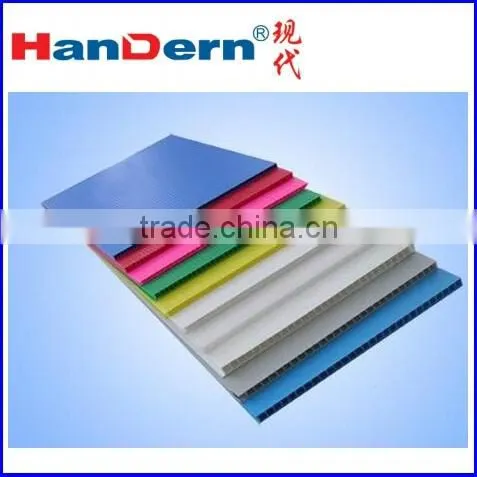

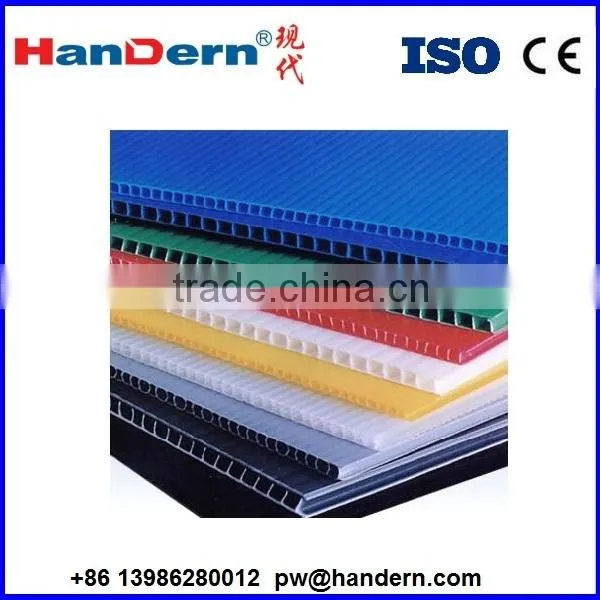

Applications of PP corrugated sheet making line
Specifications of PP corrugated sheet making line
|
Machine type
|
sheet width(mm) |
sheet thickness(mm) |
Max Extrusion Capcity(kg/h) |
|
1400
|
1250 |
2-20 |
280/350 |
|
1800
|
1650 |
2-20 |
320/350/420 |
|
2300
|
2150 |
2-12 |
350 |
|
2700
|
2550 |
2-6 |
480 |
Process Flow of PP corrugated sheet making line
Feeding→extrusion→exchange screen→Die→Calibrator→first haul off →heat treating oven →Cooling→second haul off →cutting→stacking
Parameters of PP corrugated sheet making line
|
Number
|
Item | Unit | Quantity |
|
1
|
Extruder with single screw | set | 1 |
|
2
|
Screen Changer | set | 1 |
|
3
|
Die | set | 1 |
|
4
|
Vaccum Calibrator | set | 1 |
|
5
|
First haul-off unit | set | 1 |
|
6
|
Drying oven | set | 1 |
|
7
|
Cooling Device | set | 1 |
|
8
|
Second haul-off unit | set | 1 |
|
9
|
Cutting device | set | 1 |
|
10
|
Electrical control Cabinet | set | 1 |
|
11
|
Stacker Unit | set | 1 |
|
12
|
Screw feeder | set | 1 |
Advantages of PP corrugated sheet making line

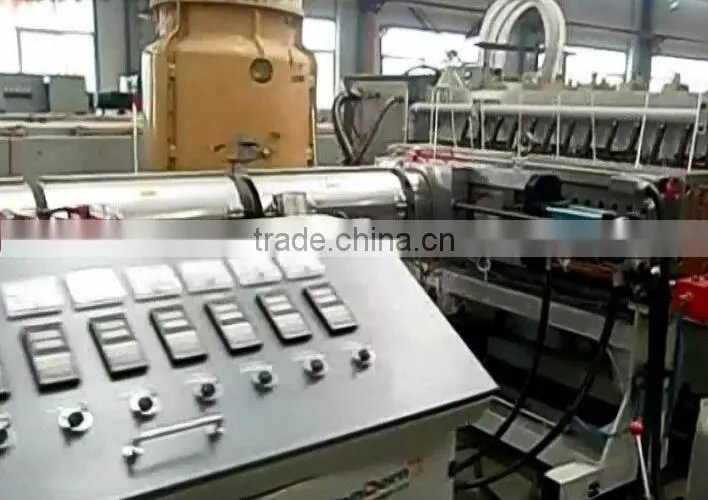

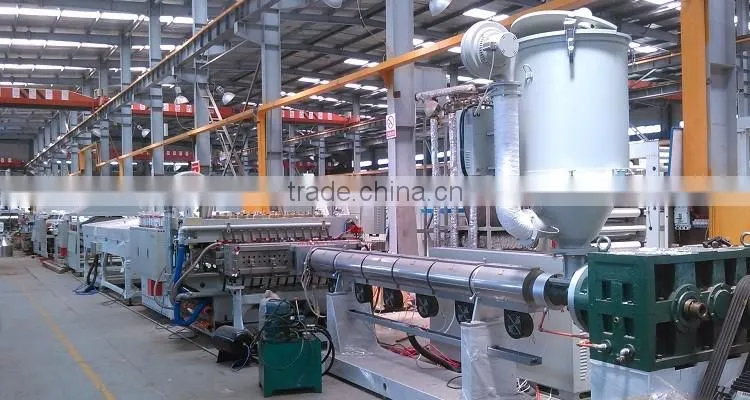

New design screw extruder: line with market demands and adapt to many kinds of raw materials, with the advantages of good plasticizing, uniform distribution and high output.
Hydraulic pressure screen exchange: short course of changing screen and stable operation of operators
Molding die: with high quality alloy steel lips and restrict bars to ensure even pressure and uniform thickness of the finished sheet.

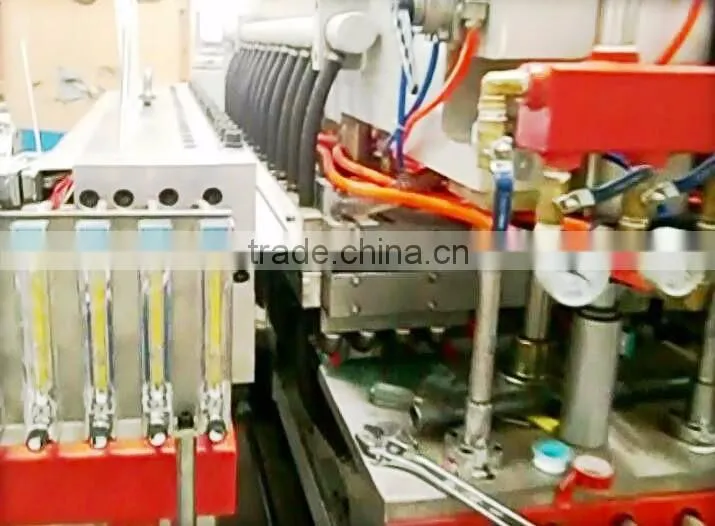

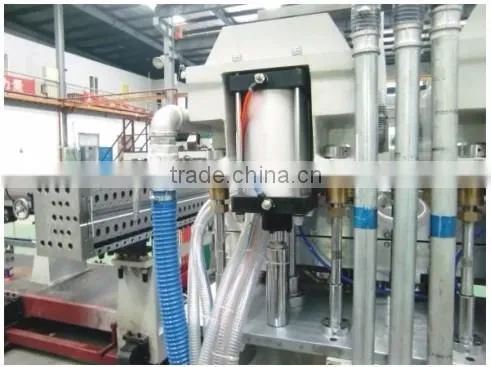

Vacuum Calibrator: convective heat with array interleaved to ensure high precise calibration. the vacuum system composes two independent subsystem, equipped with several closed loop vacuum lines, which carries vacuum regulating system and vacuum displaying system, to ensure stable and even vacuum degree of sheet surface.
Haul off Device:

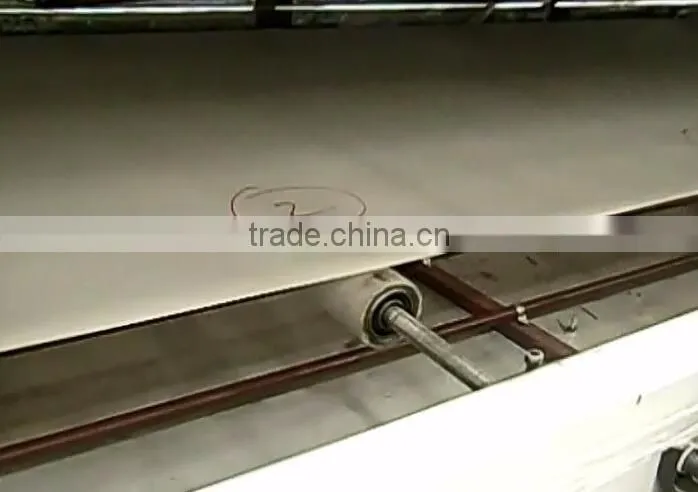

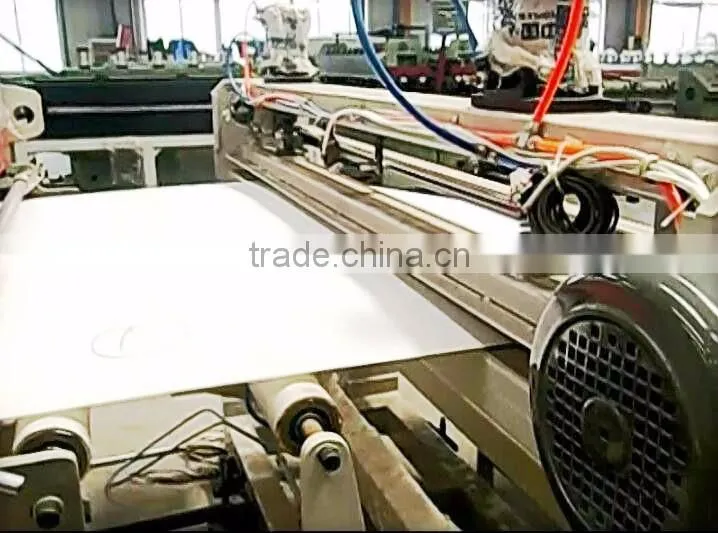

First haul off device is of high power, high reduction gear ratio, multi roll type, high traction, to draw the sheet up from calibrator evenly and synchronizedly.
Second haul off device is to remove stress and equipped with edge cutting device to ensure effective width and smooth cutting.

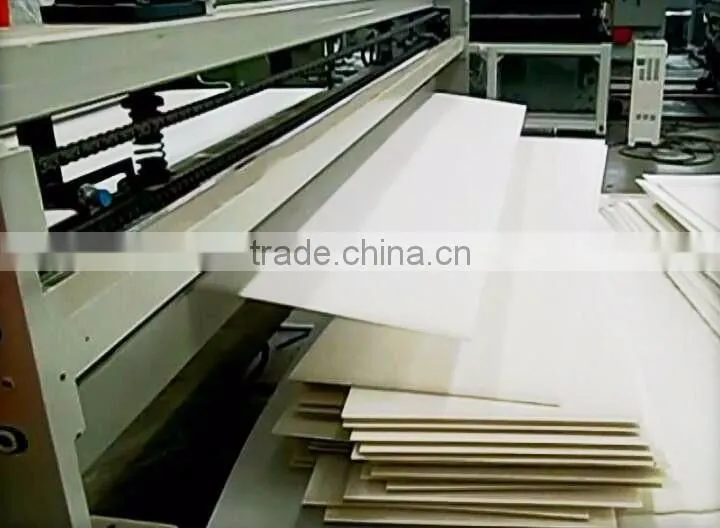

Cutting Machine: Accurate imported automatic length indicator, adopts electric fly cutting and traversing cutting.

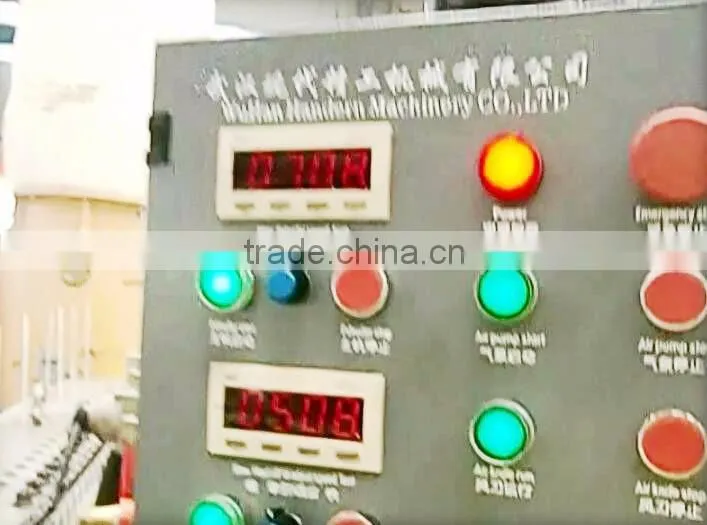

Electrical control system: adopt PLC to control precise parameters.
Benefits of PP corrugated sheet making line
1. Required high production efficiency
2. Production flexibility( controllable sheet thickness and width, for example, you can produce 2-6mm thick sheet with the same mould or machine)
3. Reliability and stability
4.Excellent Adaptability to different raw material and reach over 30% production cost reduction.
5. Size and shape diversity of finished products

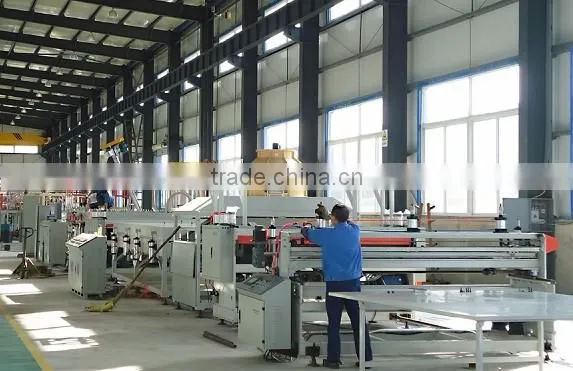

1400mm PP corrugated sheet making line are professionally manufactured through the plastic equipment with more than 15 years' experience
1600mm PP corrugated sheet making line are CE certified, which assures your legal right.
1800mm PP corrugated sheet making line are ISO9001:2008 certified, which guarantee the product quality.
2000mm PP corrugated sheet making line
offer the custom service and engineer available to service overseas, which can meet your requirement better and solve the problem in the process of operation.
Presale Service:
1)Select equipment model;
2)Design and manufacture products according to clients' special requirements
3)Train technical personnel for clients
Service during the sale
1)check products ahead of delivery
2)Help clients to draft solving plan
After-sale Service
1)Provide considerate service to minimize clients' worries
2)help clients to prepare for the first construction scheme
3)Install and debug the equipment
4)Train operators for clients
5)Examine the machine
6)Take initiatives to eliminate the troubles rapidly
7)Provide perfect service
8)Provide technical exchange.
Quality of PP corrugated sheet making line
Wuhan Handen Machinery Co.Ltd
PP corrugated sheet extrusion line
tel:86 13986280012
Skype: anitacao27
Wechat: anita_oo
Questions about recycled PP corrugated sheet making line
1. Price
Please offer the width and thickness you require, so we can equip extruders and moulds for you and offer the most reasonable price.
2. Validity of Price
Three month
3. Payment Terms
30% contract value (T/T) to our bank as deposit. 70% contract value (T/T) to our bank before delivery
4.Quality orientation
We have passed CE and ISO9001:2008 certificate. Our quality orientation is high quality machines. Provide high quality products and help customers make more profits are our continuous pursuit forever.
5.Professional Degree
We believe high quality products are based on high professional degree. If you are interested in our plastic machines, Handern will be your best choice.
