Tie Corner Beads, Angle Beads in Corner Guards, Metal Angle Beads for Constructions

Tie Corner Beads, Angle Beads in Corner Guards, Metal Angle Beads for Constructions photo-1
Tie Corner Beads, Angle Beads in Corner Guards, Metal Angle Beads for Constructions photo-2
Tie Corner Beads, Angle Beads in Corner Guards, Metal Angle Beads for Constructions photo-3
Tie Corner Beads, Angle Beads in Corner Guards, Metal Angle Beads for Constructions photo-4
Tie Corner Beads, Angle Beads in Corner Guards, Metal Angle Beads for Constructions photo-5
Tie Corner Beads, Angle Beads in Corner Guards, Metal Angle Beads for Constructions photo-6
US$ 0.25 - 0.35 MOQ: 20000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
ABO
Model Number:
AB-AB75
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name ABO
Model Number AB-AB75
Material Galvanized Plate



Product Description

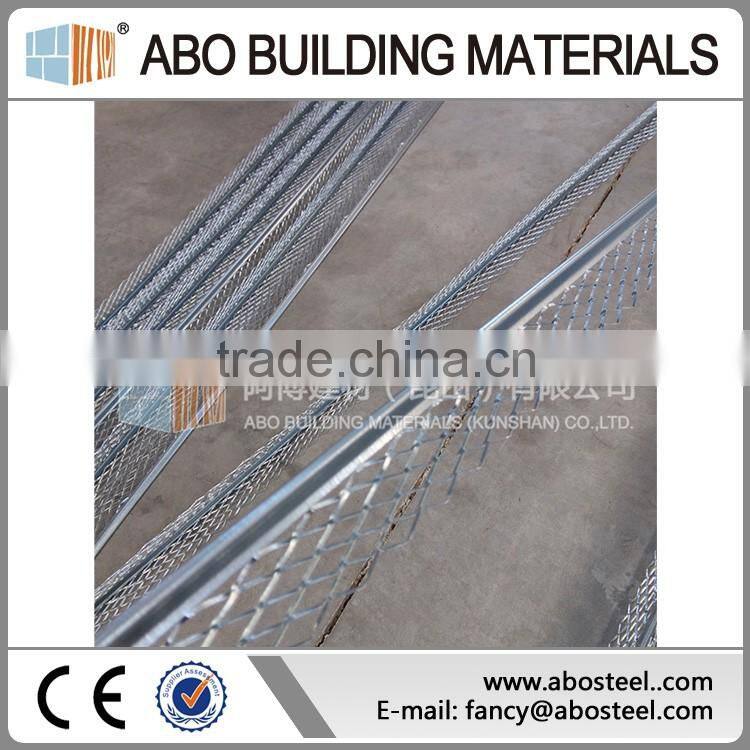

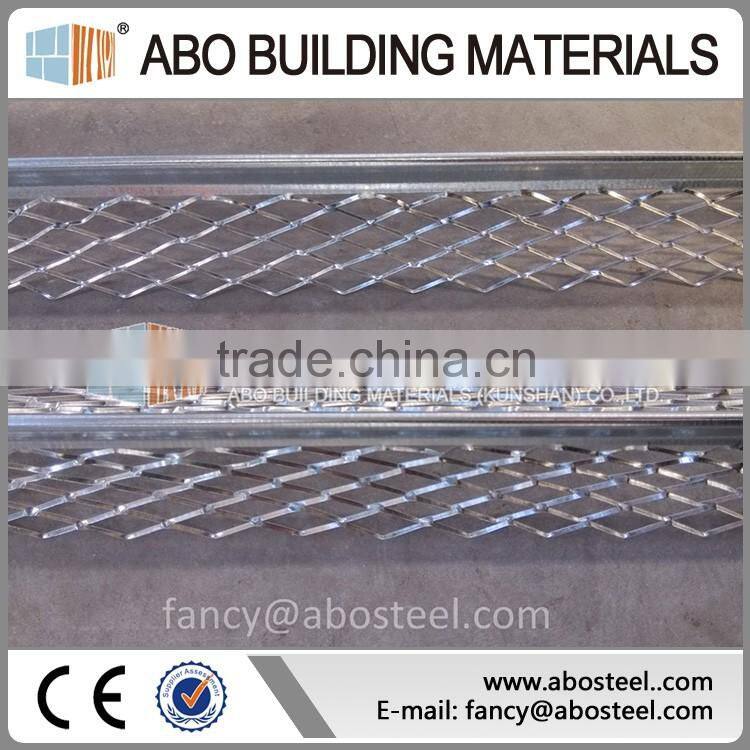

An expanded flange corner bead, metal corner bead for concrete,  tie corner beads for wall with extra long expanded flange.  for wall building  corner beads  wire mesh has a steel rib running the length of the bead to provide nail holes and extra rigidity. Expanded Metal is a mesh formed from a single piece sheet metal. The sheet of solid metal is slit and stretched with each stroke of a die which forms a raised diamond pattern. The pattern changes by gauge and type of material and the size of the diamond. The mesh can be pressure rolled at so that the strands are in the same plane as the sheet.

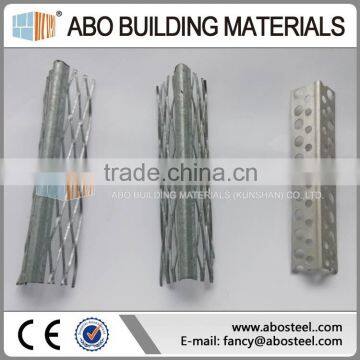

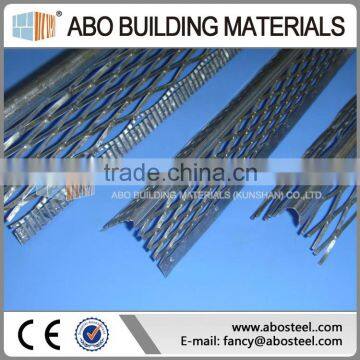

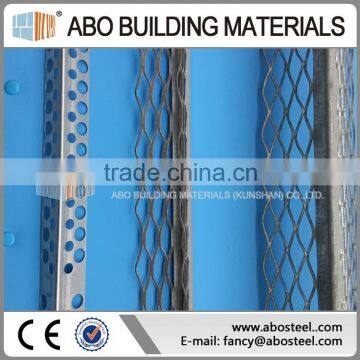

Detailed Images

  tie corner beads for wall,   stainless steel  corner beads,   tie  angle beads

tie corner beads, angle beads in corner guards, metal angle beads for constructionstie corner beads, angle beads in corner guards, metal angle beads for constructionstie corner beads, angle beads in corner guards, metal angle beads for constructions








Specification



Model the width of wing Material Material Thickness Length Pc/Box
AB-ABF30 30*30mm GI/SS 0.3-0.7mm 2400/2700/3000mm 50
AB-AB-F60 60*60mm GI/SS 0.3-0.7mm 2400/2700/3000mm 50
AB-AB30 30*30mm GI/SS 0.3-0.7mm 2400/2700/3000mm 50
AB-AB50 50*50mm GI/SS 0.3-0.7mm 2400/2700/3000mm 50
AB-AB60 60*60mm GI/SS 0.3-0.7mm 2400/2700/3000mm 50
AB-AB65 65*65mm GI/SS 0.3-0.7mm 2400/2700/3000mm 50
AB-AB75 75*75mm GI/SS 0.3-0.7mm 2400/2700/3000mm 50
AB-MAB25 25*25mm GI/SS 0.3-0.7mm 2400/2700/3000mm 50
AB-MAB30 30*30mm GI/SS 0.3-0.7mm 2400/2700/3000mm 50


AB-ABF refers to Angle Beads With Reinforce FlangeNotice:

  1. AB-AB refers to Angle Beads Without Reinforce Flange
  2. AB-MAB refers to Micro Angle Beads
  3. All dimensions can be customized according to your requirements.

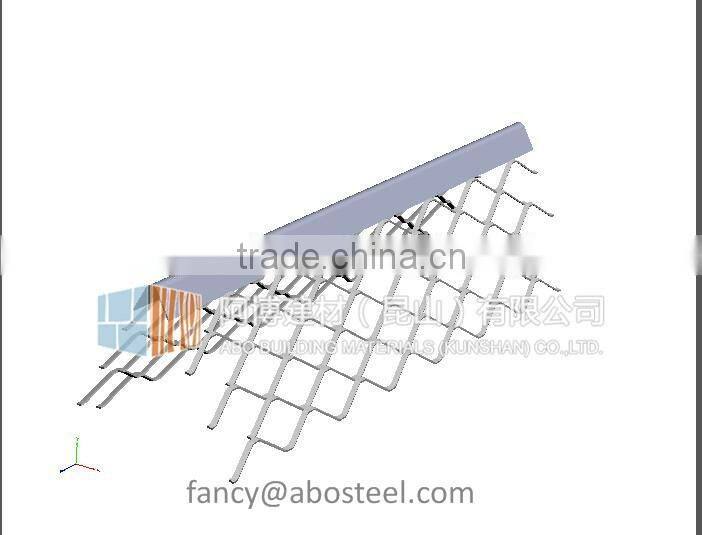

Products drawing

  Below are some drawing of angle beads (corner beads) corner beads  in metal building materials,   for wall building corner beads drywall for your reference, please check with us as finally confirmation.

tie corner beads, angle beads in corner guards, metal angle beads for constructions

Functions



For wall building corner beads drywall, the type of the angle bead have a chisel shape nose. The productions are mainly used for reinforcement purposes and for plaster or render embracing. Meantime, it provides good finishing and stronger edges, that can help to improve the life time of any buildings. Angle Bead are resistant to chips, cracks and impact damage. It protects the corner and edges and offers good shape.

The good performance of the item:

Galvanized finish to resist corrosion;

Perforated wing increases bond;

Reinforces plaster edges to prevent accidental damage;

Can be fixed with plaster, adhesive or mechanical fixings;



tie corner beads, angle beads in corner guards, metal angle beads for constructions

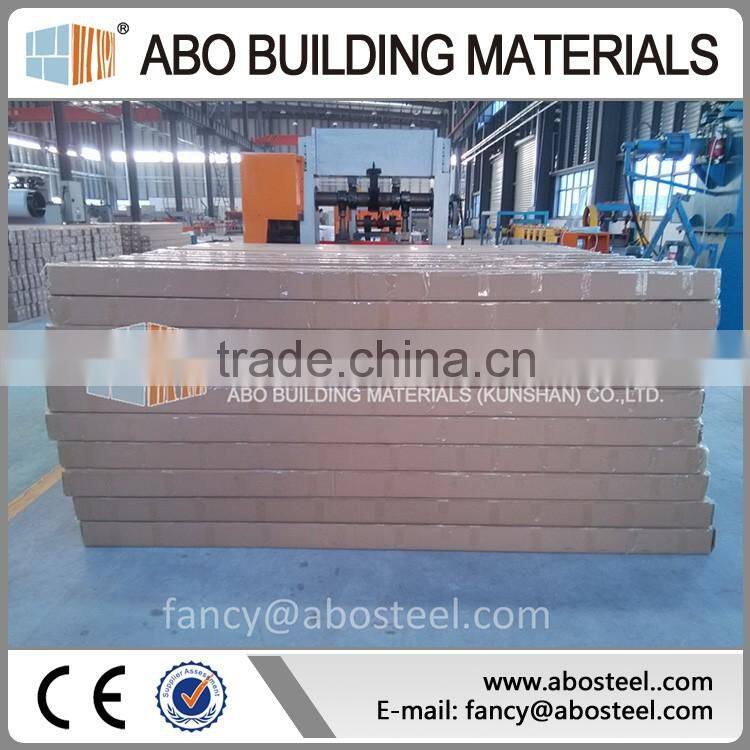

 Packaging & Shipping

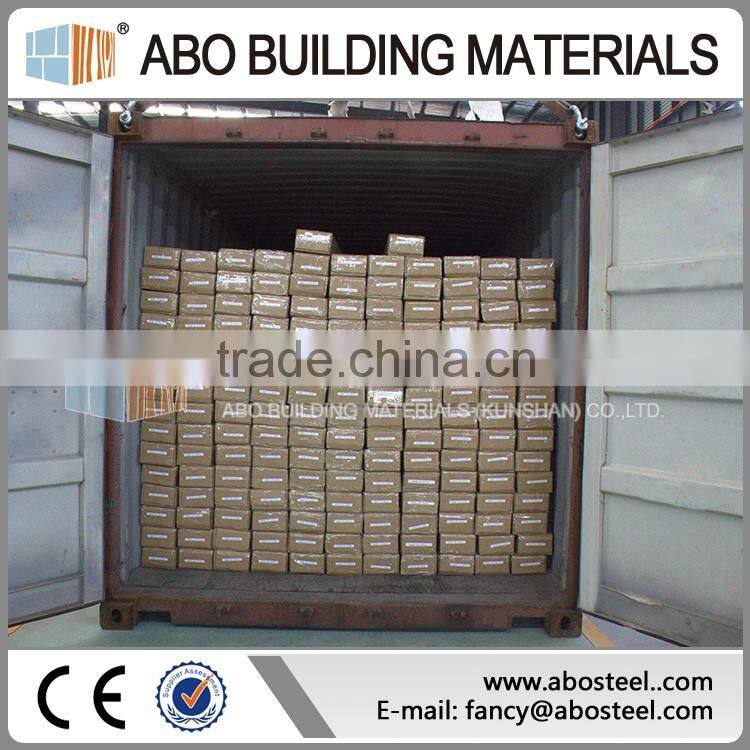

Normally,  corner beads in metal building materials, 50pcs/box, rough 400boxes for one 20' container. packing method can be customized accoring to client's requirements.

tie corner beads, angle beads in corner guards, metal angle beads for constructionstie corner beads, angle beads in corner guards, metal angle beads for constructions





Related Products

We can produce various building mesh,  corner beads in metal building materials. more pictures about our strength and products.



Perforated Angle Beads, Expanded Angle Beads, PVC  corner beads  for construcation,   stainless steel  corner beads  for wall, metal  angle beads  for wall building

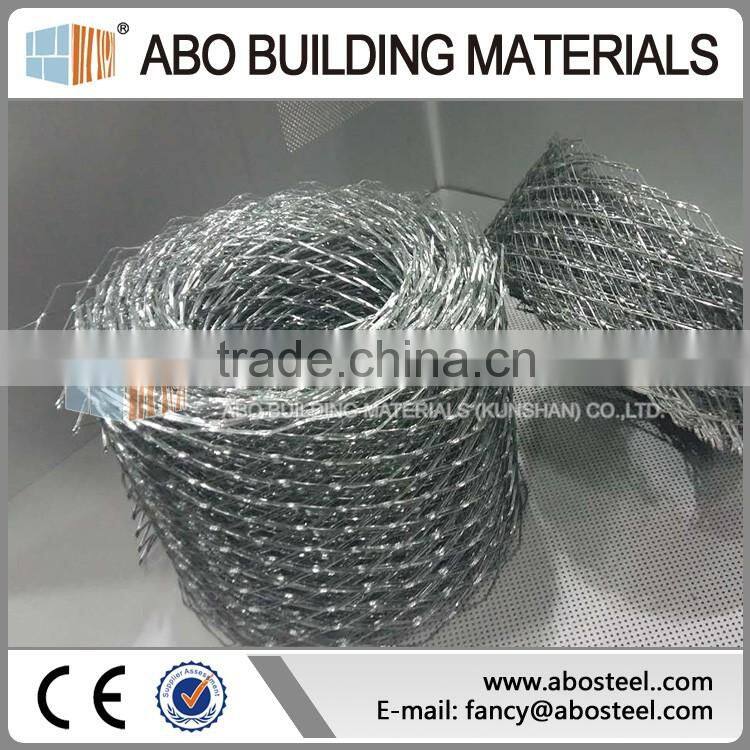

coil mesh

 tie corner beads, angle beads in corner guards, metal angle beads for constructions

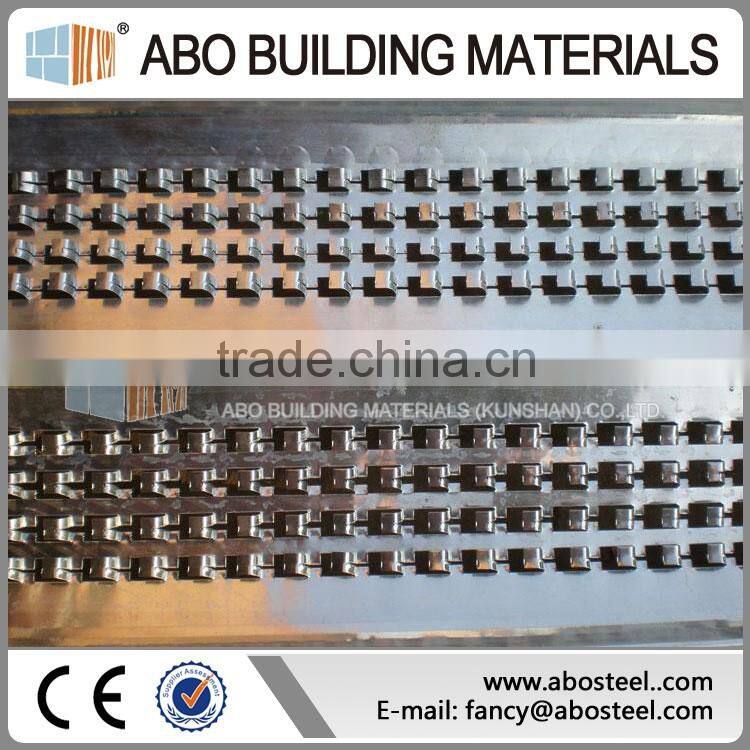

hi-rib lath

tie corner beads, angle beads in corner guards, metal angle beads for constructions
