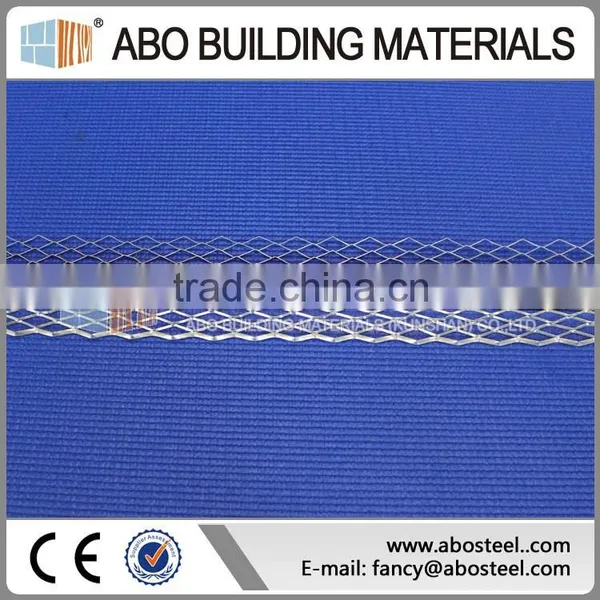

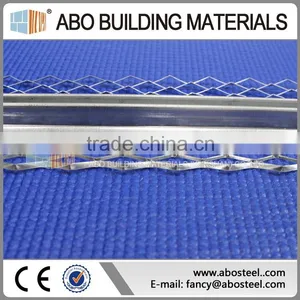

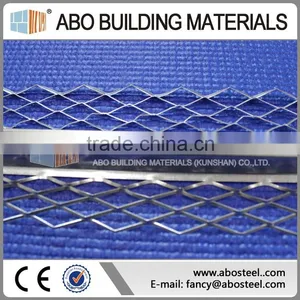

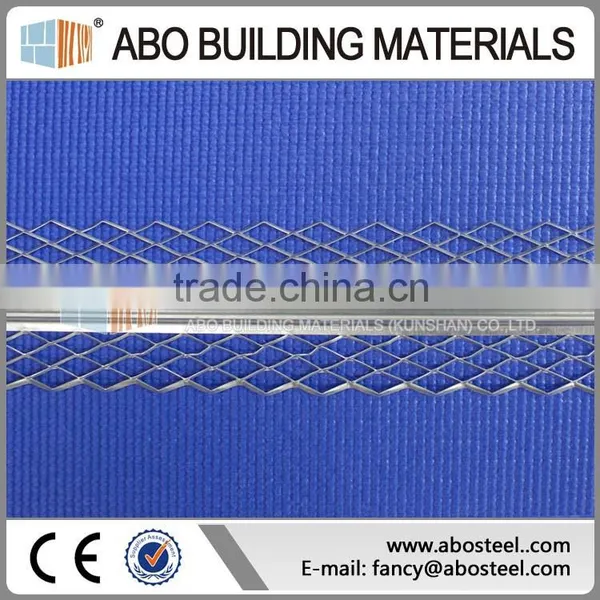

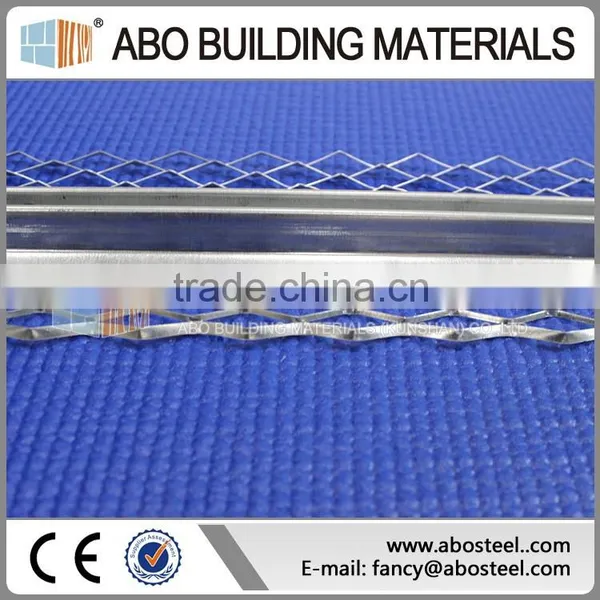

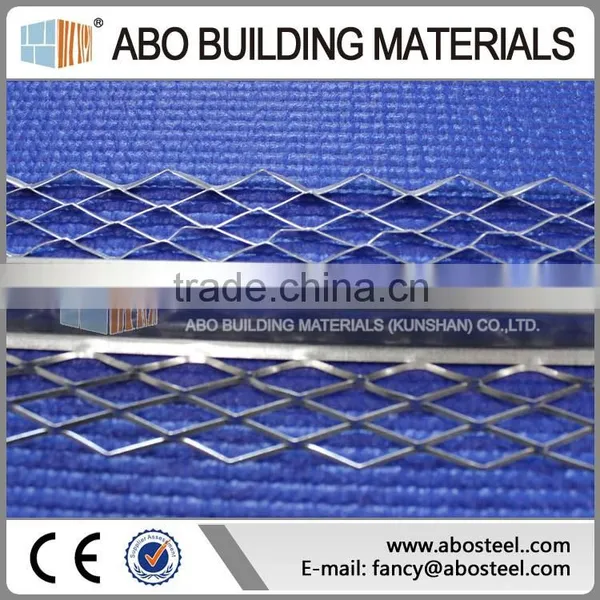

Help CenterMovement Beads, Control Joint Beads, Double V Expansion Joint, Control Joint
Related Products
-
Drywall Plaster Angle Beads/ Perforated Angle Beads/ Plastering Corner BeadUS$ 0.35 - 0.5MOQ: 20000 Pieces -
Movement Beads/Control Joint Beads/ Rib Lath --ABO Professional SupplierUS$ 2.50 - 2.50MOQ: 20000 Pieces
-
Tie Corner Beads, Angle Beads in Corner Guards, Metal Angle Beads for ConstructionsUS$ 0.25 - 0.35MOQ: 20000 Pieces
-
ABO Supllier-Plaster Stop Beads/ Micro Plaster Stop Beads/ External Render Stop BeadsUS$ 0.9 - 2MOQ: 20000 Pieces
-
Brickwork Mesh \Brick Coil Mesh\ Expanded Coil Mesh(factory Supply)US$ 0.40 - 0.40MOQ: 30000 Rolls

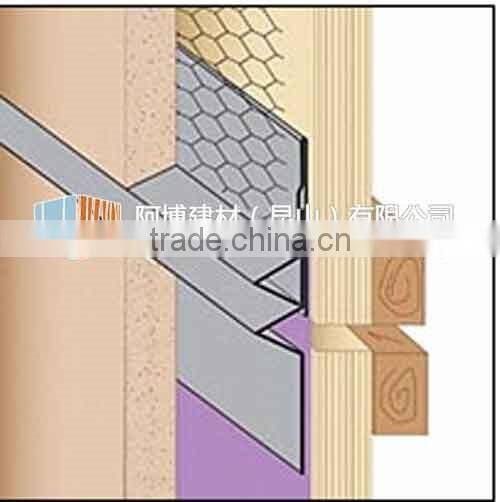

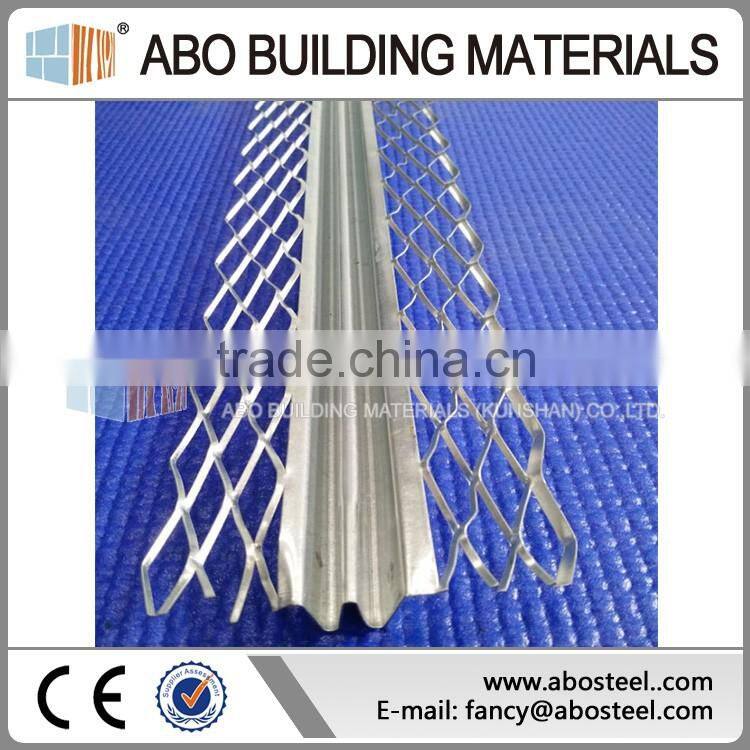

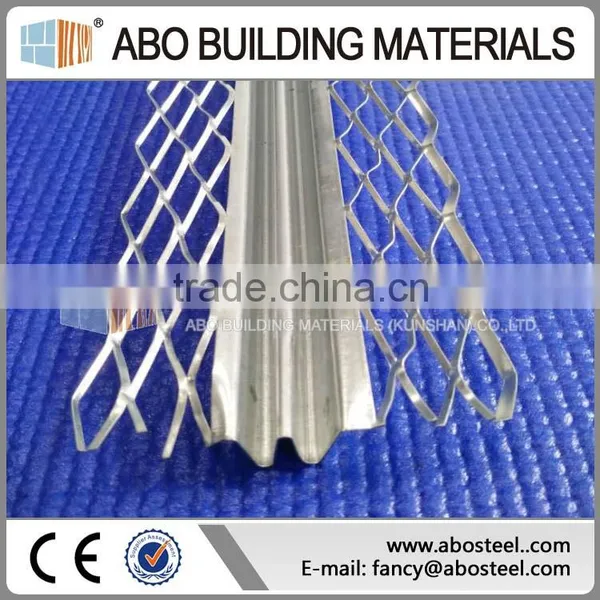

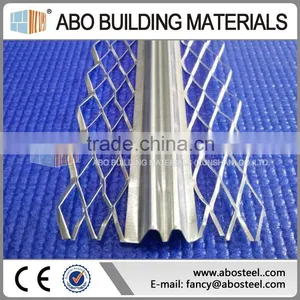

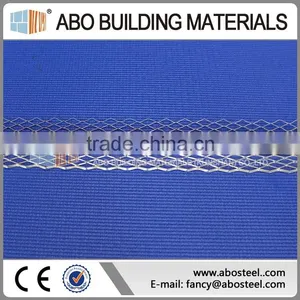

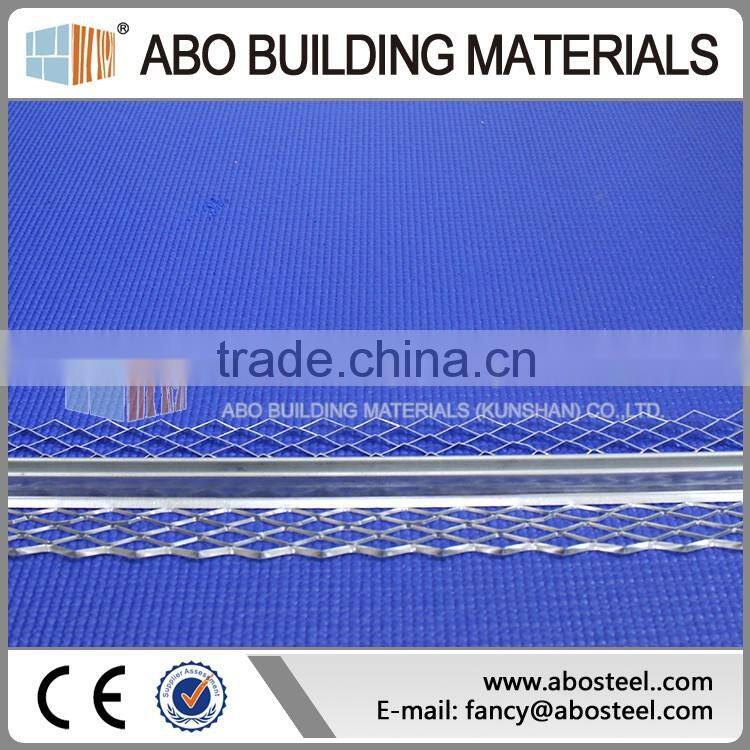

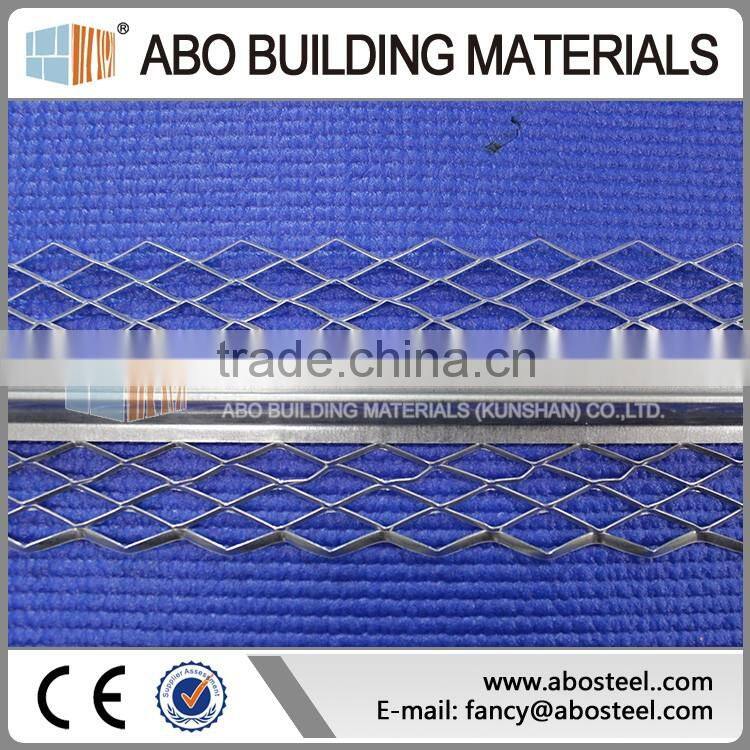

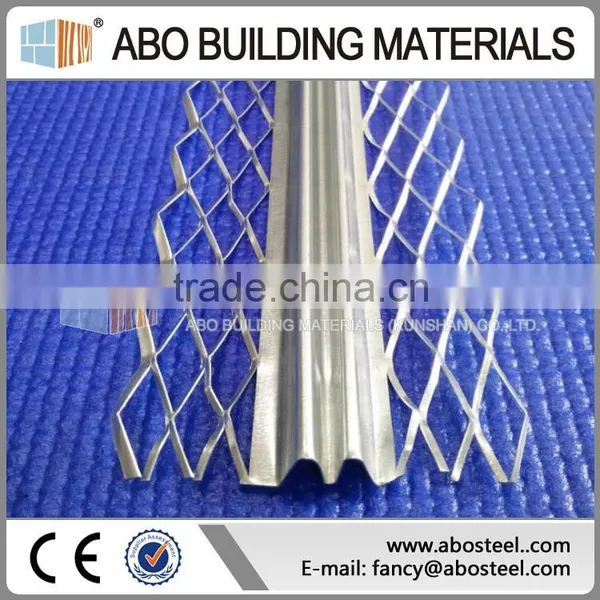

The Control Joint Bead eases the stresses of the basic expansion and contraction associated with inherent shrinkage during stucco curing stage of the cement stucco (generally exterior or gypsum plaster interior) coats and minor thermal expansion and contraction.
Reference |
Total Wing width(mm) |
Length(mm) |
Plaster Thickness(mm) |
AB-CJB13 |
100 |
2400/3000 |
13 |
AB-CJB21 |
100 |
2400/3000 |
21 |
AB-MB10 |
140 |
2400/3000 |
10 |
AB-MB13 |
140 |
2400/3000 |
13 |
AB-MB16 |
140 |
2400/3000 |
16 |
AB-MB19 |
140 |
2400/3000 |
19 |
Note:
1. AB-CJB refers to Control Joint Beads, AB-MB refers to Movement Beads.
2. All dimensions can be adjusted according to the customer requirements.
Availability:
The product is available in standard length form but with varying depths, which is necessitated because of the wide depth of plastering requirements it is involved in.
Movement bead consists of two lengths of stop bead linked with a white PVC extrusion.
Movement bead allows +/- 3mm differential expansion or settlement movement between adjoining surfaces.
Advantages:
Many advantages could be cited here over and above the existing products.
1. Plastering finish at expansion joints looks very neat and straight, thereby enhancing the aesthetic looks.
2. Provides perfect sealing at the joints there by stopping water seepages through the joints.
3. Minimum quantity of epoxy sealant is used thereby cutting cost.
4. Reduces the wastage of time while working with joints, and speeds up the pace of work.
We can produce various building mesh, more pictures about our strength and products.

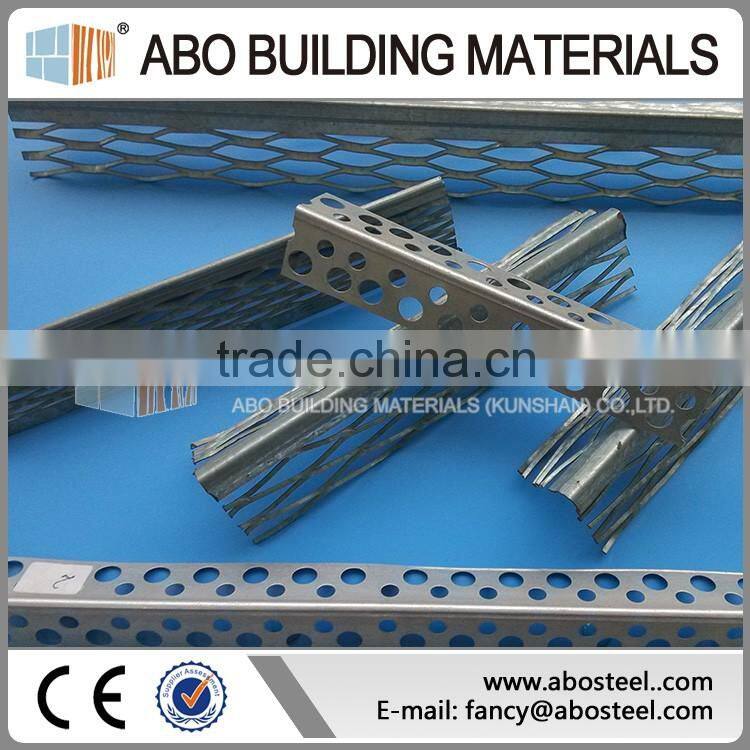

Angle Beads

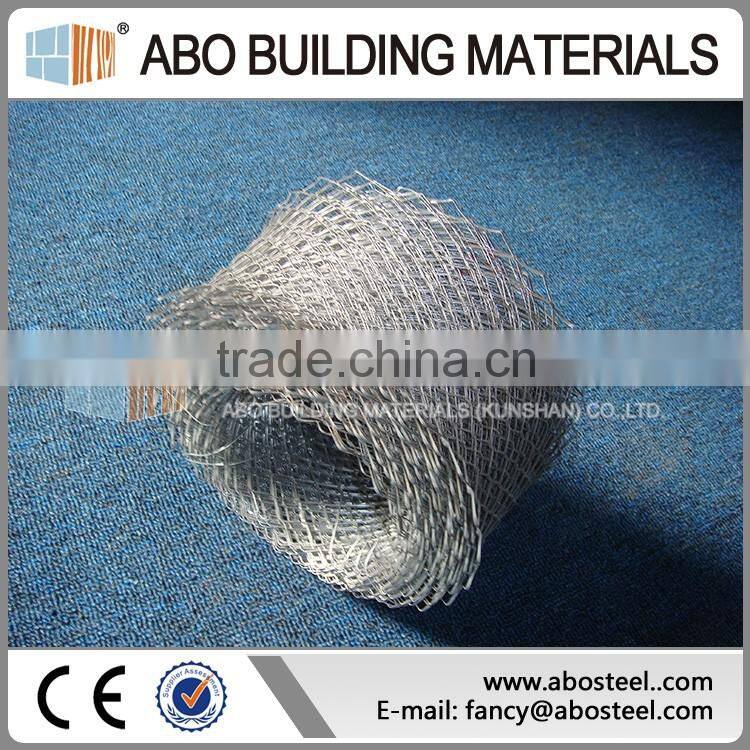

Above are coil mesh and black paper diamond metal lath.
Company Information
ABO Building Materials (kunshan) Co., Ltd. is a professional building mesh manufacturer located in Kunshan, Jiangsu province, China,
Our company provides a variety of high quality building mesh, like Expanded Metal mesh & Plaster Mesh, Angle Beads, 3D Truss Girder, Architrave Beads, Rib Lath and specialized building materials. All of our equipment are developed and produced by ourselves,The materials meet with ASTM A366/A366M.We ABO has a high quality and inspectio system.
Our products have sold to Europe, America, Africa, Japan, etc, and has been credited by International authoritative product testing. The quality system is accredited through ISO 9001:2008, assuring our products high quality. We also have produced the high speed machines to match with the big requirement of the expanded metal lath, plaster mesh, angle bead, truss girder, rib lath, etc. ABO has hundreds of patents for the technic and about 60 patents for the product invention.
