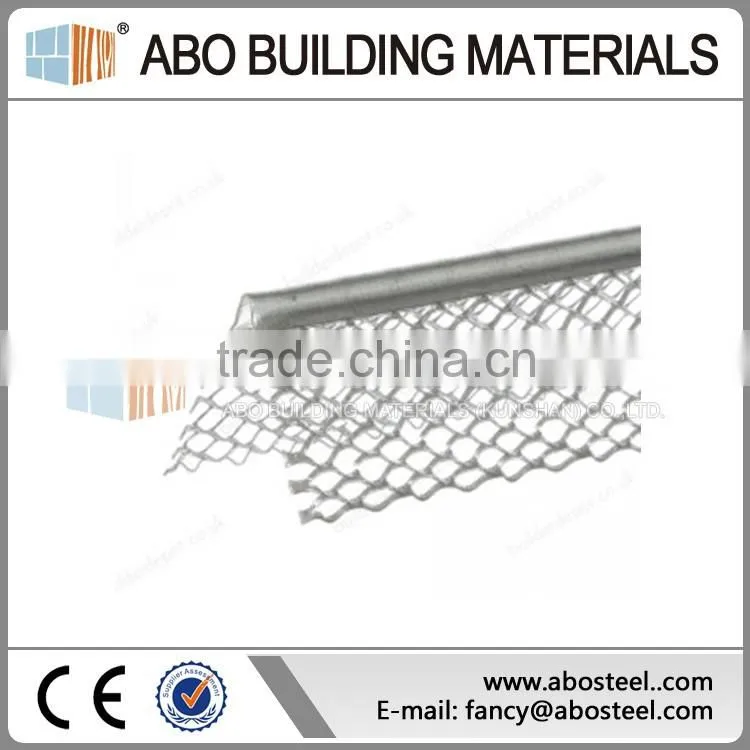

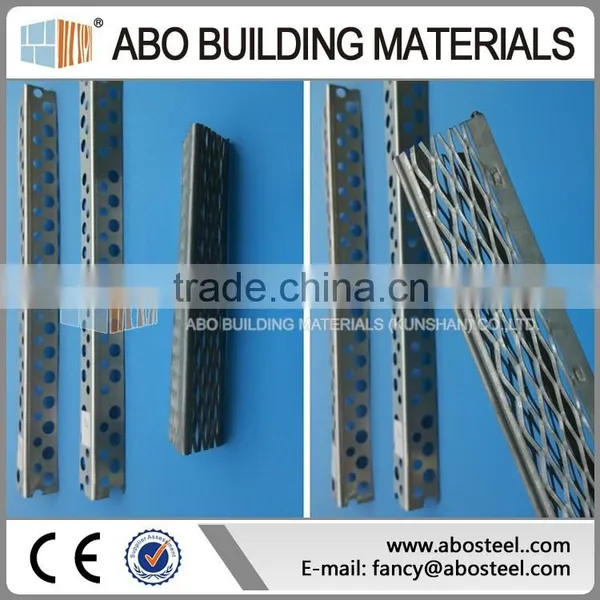

Micromesh Angle Bead is designed for thinsingle coat plaster and used at corner for protection. It has more dense holes to enhance the reinforcement.

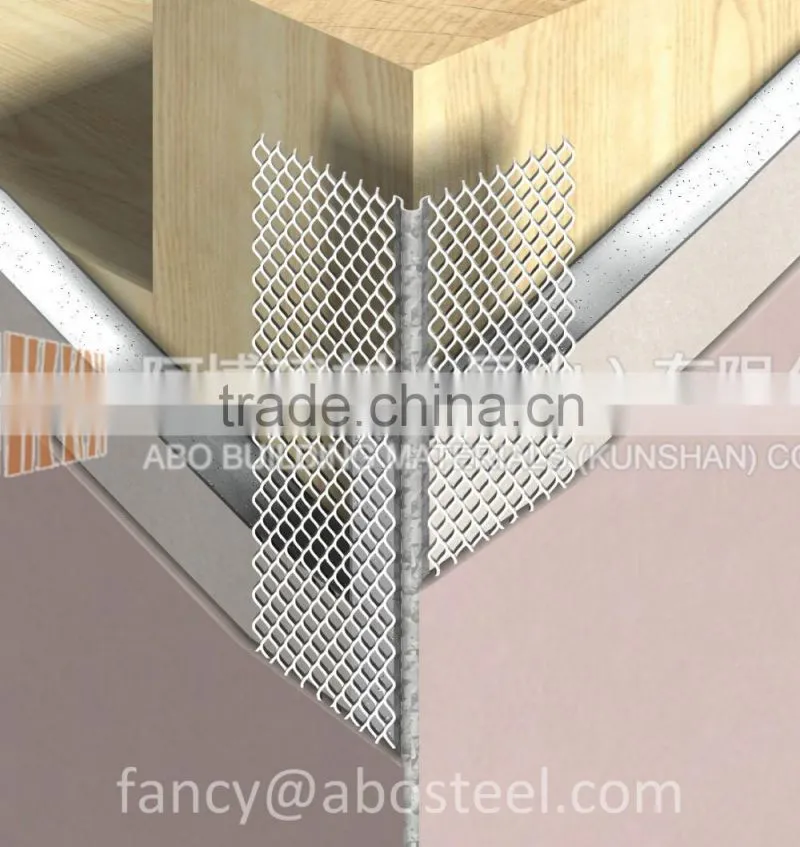

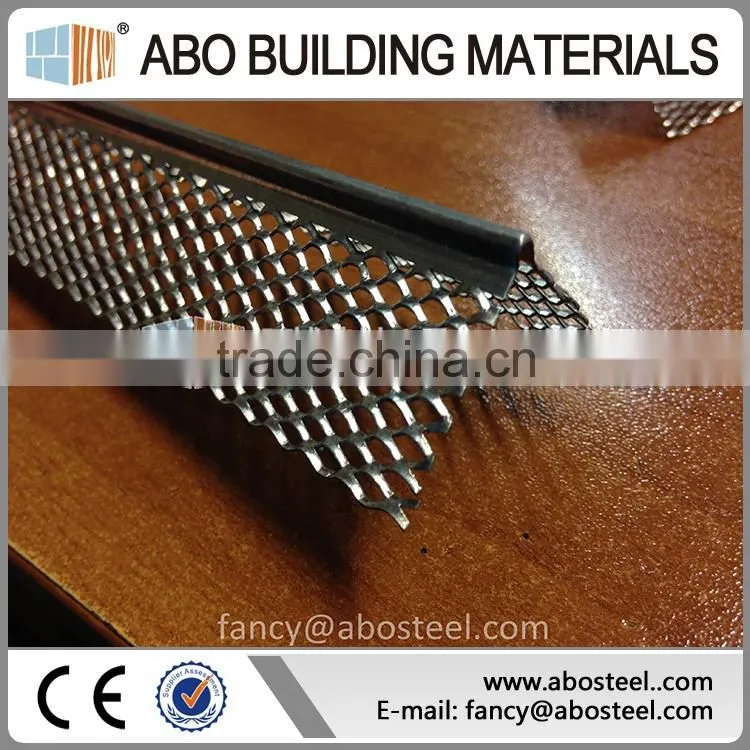

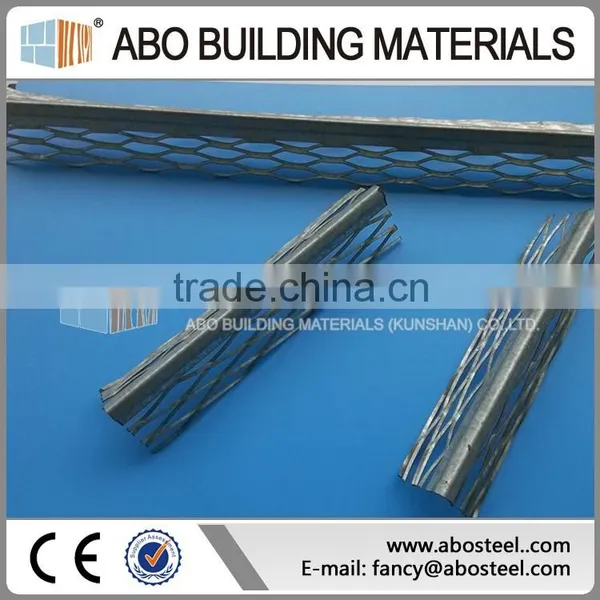

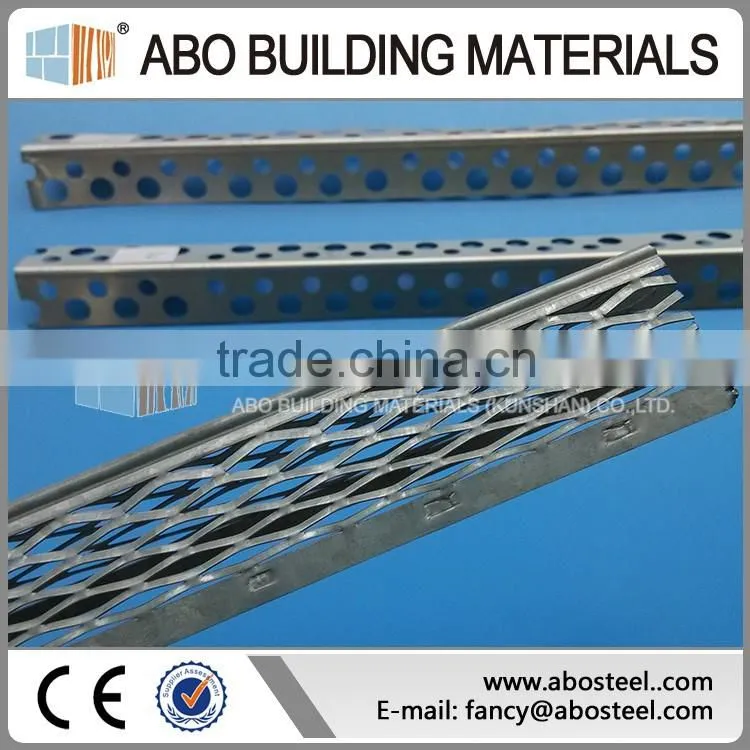

Angle Bead provides a straight arris that will not easily crack and reinforces the plaster where it is most required. The expanded mesh wings of angle bead provide an excellent mechanical key for most types of plaster and render. Corner bead is simple and quick to fit. Plaster dabs are applied to the wall at 600mm spacing and the wings of the bead then pressed into the plaster dabs to plumb or level the bead. Where the corner bead has to be fixed to metal lath it is recommended that it is fixed with wire ties. When cutting is required this should be carried out by using a fine toothed hacksaw on the solid metal and tin snips on the mesh wings. To join two lengths together, a headless nail should be used to ensure alignment of the nose.
Product standard:
BS EN 13658 - 1 and 2: 2005
Material standard
Pre-Galvanized
BS EN 10346 (formerly BS EN 10327)
ASTM A653 (revised ASTM A527)
Stainless Steel
BS EN 10088
ASTM A666
Alu-zinc Coated Steel (Galvanum)
ASTM A875
ASTM A792
The productions are mainly used for reinforcement purposes and for plaster or render embracing. Meantime, it provides good finishing and stronger edges, that can help to improve the life time of any buildings. Angle Bead are resistant to chips, cracks and impact damage. It protects the corner and edges and offers good shape.
Beads may be trimmed to length using shears across the wings and a fine-toothed saw across bead nose.
1. Using galvanized or stainless steel nails to fix the angle bead at a interval of about 600mm. When nailing to the solid background, the line of the bead will follow the line of the background.
2. Pressing the bead onto dabs of the similar material as the undercoat; the interval of the dabs should be maximum 600mm. This way will smooth minor irregularities in the line of the background, although the line of the bead will tend to generally follow the line of the background.
This method will smooth the irregularities in the line of the background.
3. When beads are used with metal lath backgrounds, galvanized or stainless steel nails are used to fix the beads position. Soft galvanized wire or stainless steel wire should be used to match the bead and the lath materials. The wires should be twisted tightly and the ends bent away from the finished face of the coating.
ackaging & Shipping

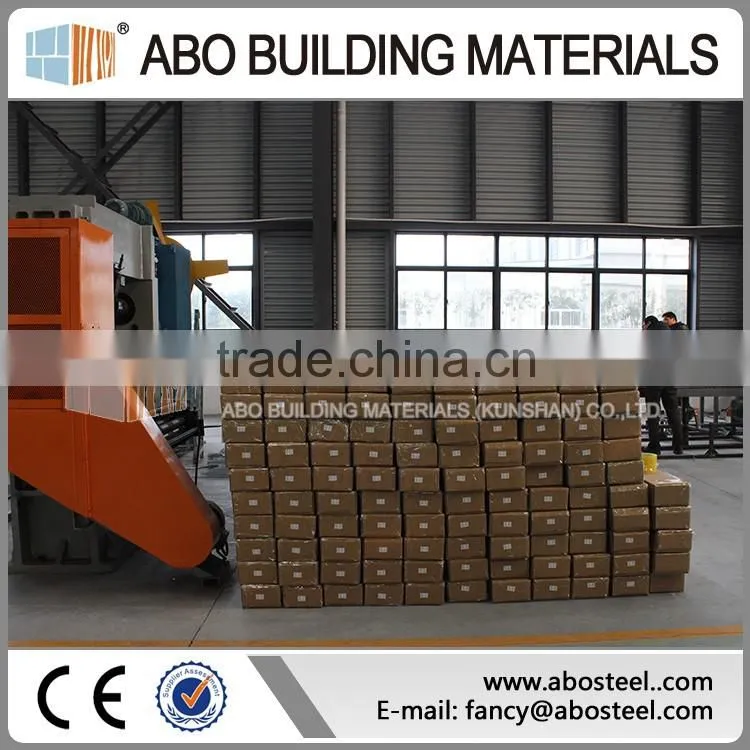

Normally, 50pcs/box, rough 400boxes for one 20' container. packing method can be customized accoring to client's requirements.
We can produce various building mesh, more pictures about our strength and products.
Micro Angle Beads, rib lath, hy-rib lath
Company Information
We a munufacturing and trading combo, produce and export building mesh, like Angle Beads, Coil Mesh, Expanded Diamond Metal Lath, etc. for several years to overseas.
Check out our new booth! Come see the demo of our products and talk with our sales staff about your product needs.
"IBS & KBIS 2016" from Jan 19th to 21st in Las Vegas
Booth# C3434
1. Are you a trading company or manufacturer?
We a manufacturing and trading combo.
2. What is your factory strength?
All products of machines are made by ourselves, we have IT team to research the production line, let the final products meet the clients requirements.

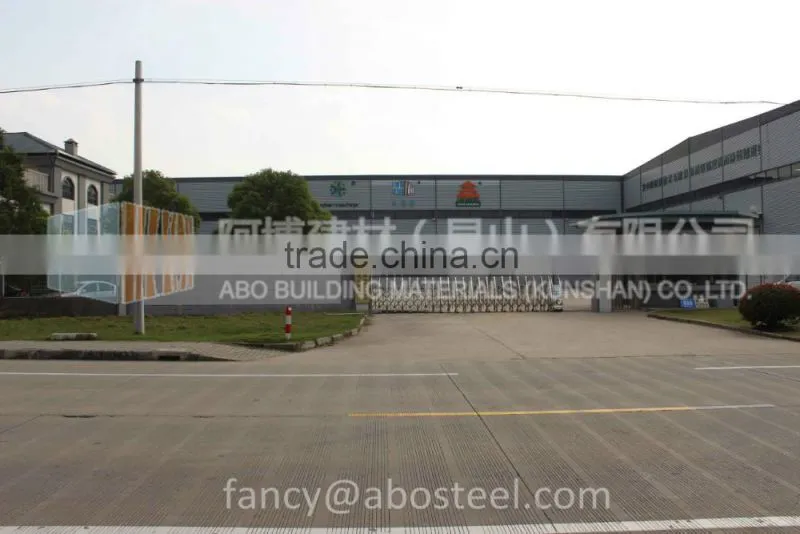

3.Where is ABO Building factory?

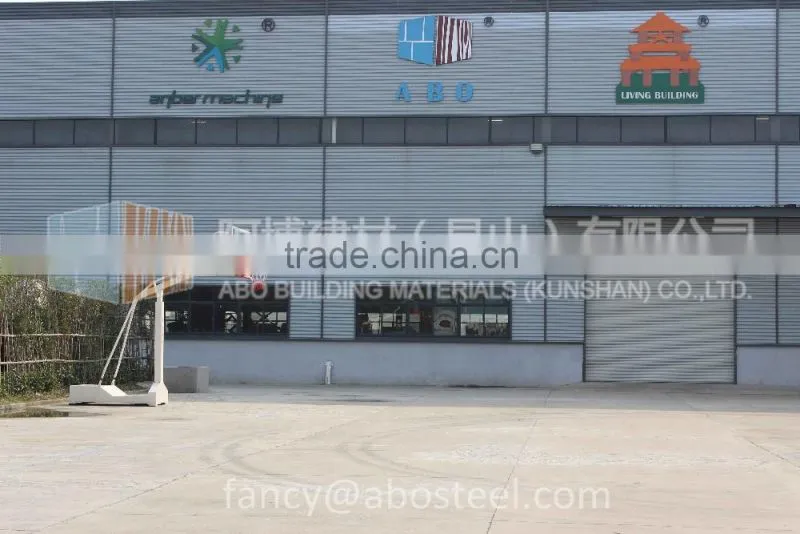

We are in Kunshan, 1hour driving from Shanghai airport.
4.What about the payment Terms?
Normally deposit 50% in advance.
5.What is your available port for shipment?
Shanghai seaport.
