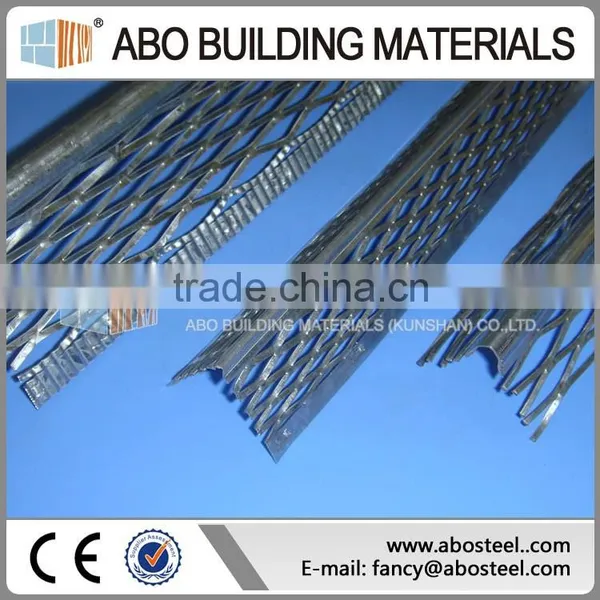

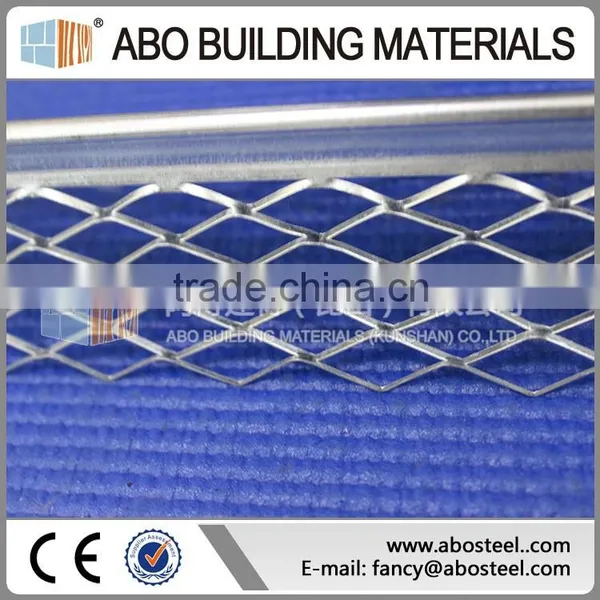

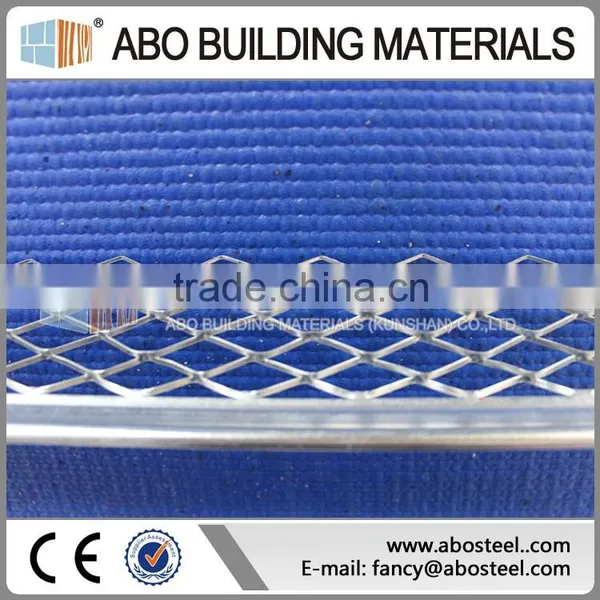

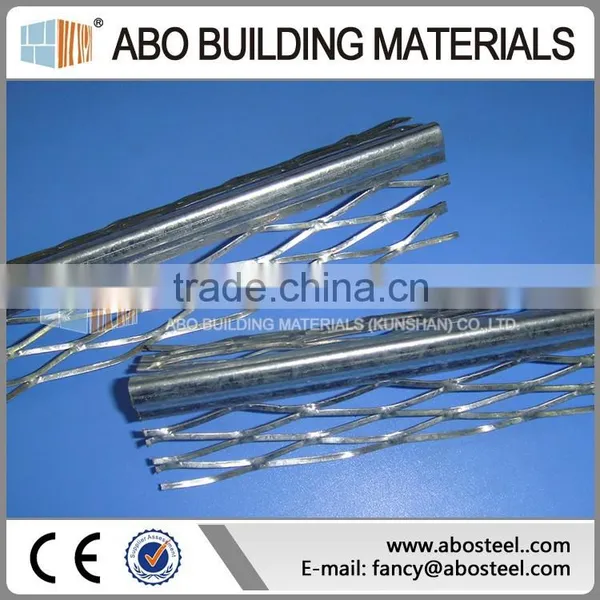

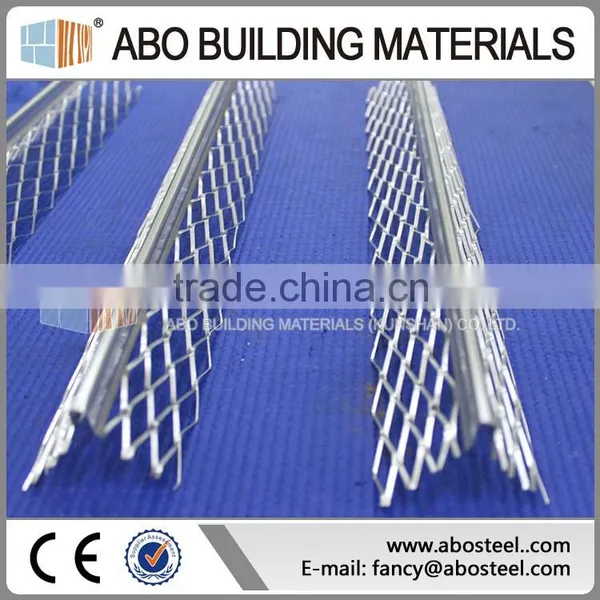

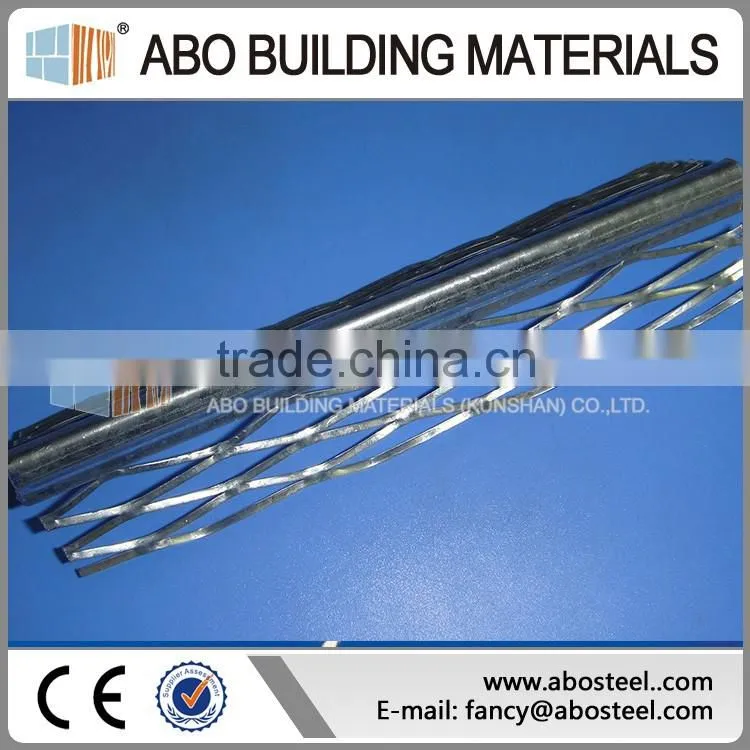

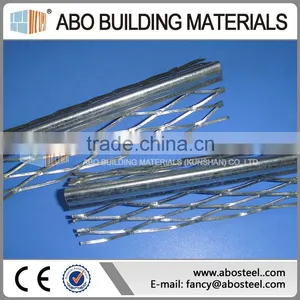

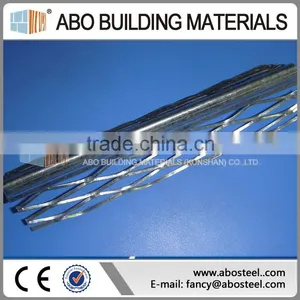

Expanded Angle Bead( Galvanized Sheet Material corner bead ) is a mesh formed from a single piece sheet metal. The sheet of solid metal is slit and stretched with each stroke of a die which forms a raised diamond pattern. The pattern changes by gauge and type of material and the size of the diamond. The mesh can be pressure rolled at so that the strands are in the same plane as the sheet.
Galvanised metal corner profiles, drywall edging bead in corner guards, line for drywall edging bead, corner beads in metal building materials
| Model | the width of wing | Material | Material Thickness | Length | Pc/Box |
| AB-ABF30 | 30*30mm | GI/SS | 0.3-0.7mm | 2400/2700/3000mm | 50 |
| AB-AB-F60 | 60*60mm | GI/SS | 0.3-0.7mm | 2400/2700/3000mm | 50 |
| AB-AB30 | 30*30mm | GI/SS | 0.3-0.7mm | 2400/2700/3000mm | 50 |
| AB-AB50 | 50*50mm | GI/SS | 0.3-0.7mm | 2400/2700/3000mm | 50 |
| AB-AB60 | 60*60mm | GI/SS | 0.3-0.7mm | 2400/2700/3000mm | 50 |
| AB-AB65 | 65*65mm | GI/SS | 0.3-0.7mm | 2400/2700/3000mm | 50 |
| AB-AB75 | 75*75mm | GI/SS | 0.3-0.7mm | 2400/2700/3000mm | 50 |
| AB-MAB25 | 25*25mm | GI/SS | 0.3-0.7mm | 2400/2700/3000mm | 50 |
| AB-MAB30 | 30*30mm | GI/SS | 0.3-0.7mm | 2400/2700/3000mm | 50 |
Notice:
- AB-ABF refers to Angle Beads With Reinforce Flange
- AB-AB refers to Angle Beads Without Reinforce Flange
- AB-MAB refers to Micro Angle Beads
- All dimensions can be customized according to your requirements.
The angle beads are mainly used for reinforcement purposes and for plaster or render embracing. Meantime, it provides good finishing and stronger edges, that can help to improve the life time of any buildings. Angle Bead are resistant to chips, cracks and impact damage. It protects the corner and edges and offers good shape.
galvanized angle beads, tie angle beads for construcation
Beads may be trimmed to length using shears across the wings and a fine-toothed saw across bead nose.
1. Using galvanized or stainless steel nails to fix the angle bead at a interval of about 600mm. When nailing to the solid background, the line of the bead will follow the line of the background.
2. Pressing the bead onto dabs of the similar material as the undercoat; the interval of the dabs should be maximum 600mm. This way will smooth minor irregularities in the line of the background, although the line of the bead will tend to generally follow the line of the background.
This method will smooth the irregularities in the line of the background.
3. When beads are used with metal lath backgrounds, galvanized or stainless steel nails are used to fix the beads position. Soft galvanized wire or stainless steel wire should be used to match the bead and the lath materials. The wires should be twisted tightly and the ends bent away from the finished face of the coating.
Normally, tie angle beads for construcation, 50pcs/box, rough 400boxes for one 20' container. packing method can be customized accoring to client's requirements.
We can produce various building mesh, more pictures about our strength and products for your reference.
Diamond Metal Lath
Rib lath , Hy-rib lath
