Brand Name LD
Model Number LD-2.4G RGB-025
Use Universal
Place of Origin Guangdong, China

RF 2.4G Touch Screen Wireless RGB Led Remote Controller System

[LD-2.4G RGB-025]

Description

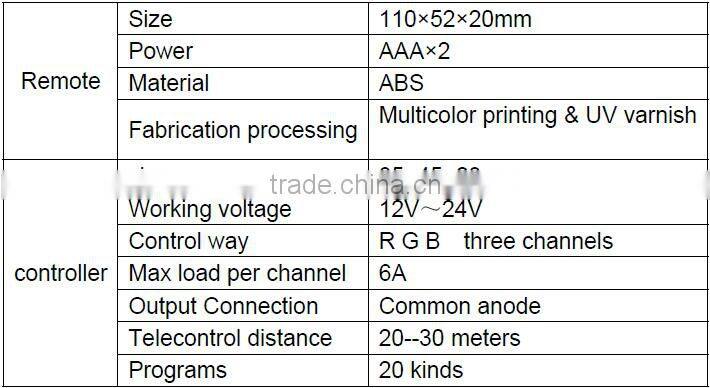

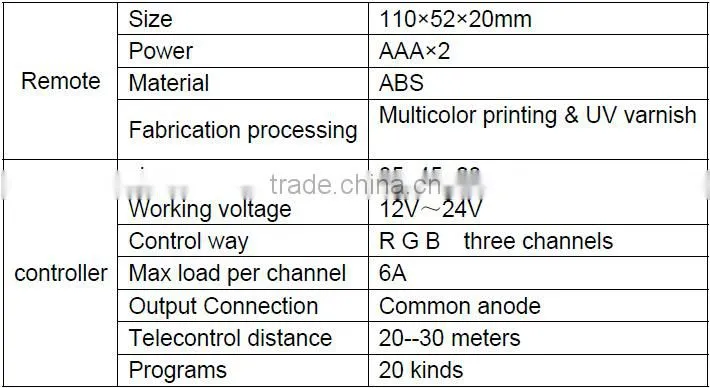

1. Technical Date

RGB Led Wireless Remote Controller

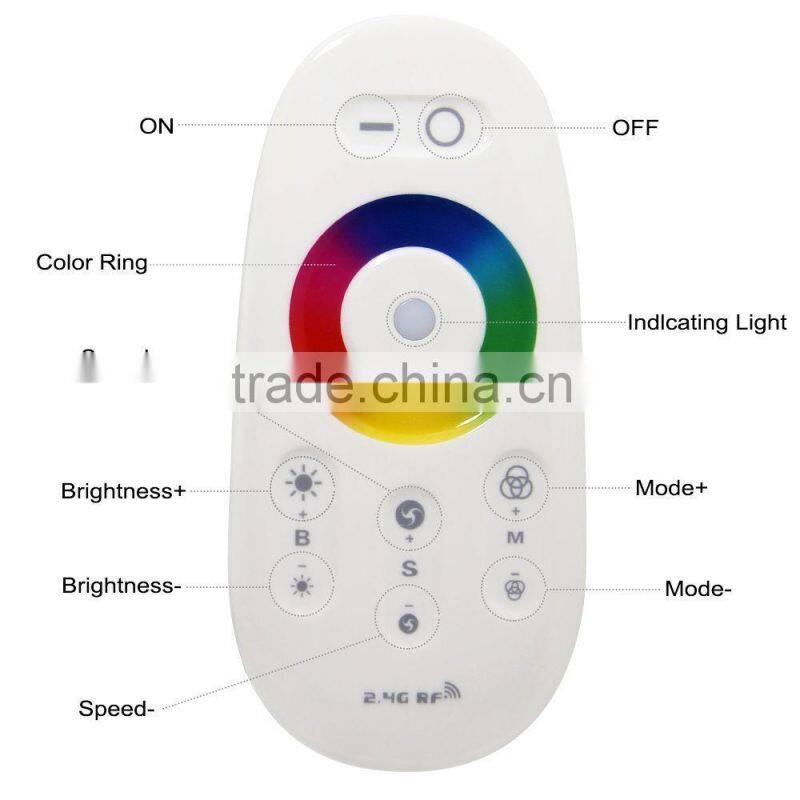

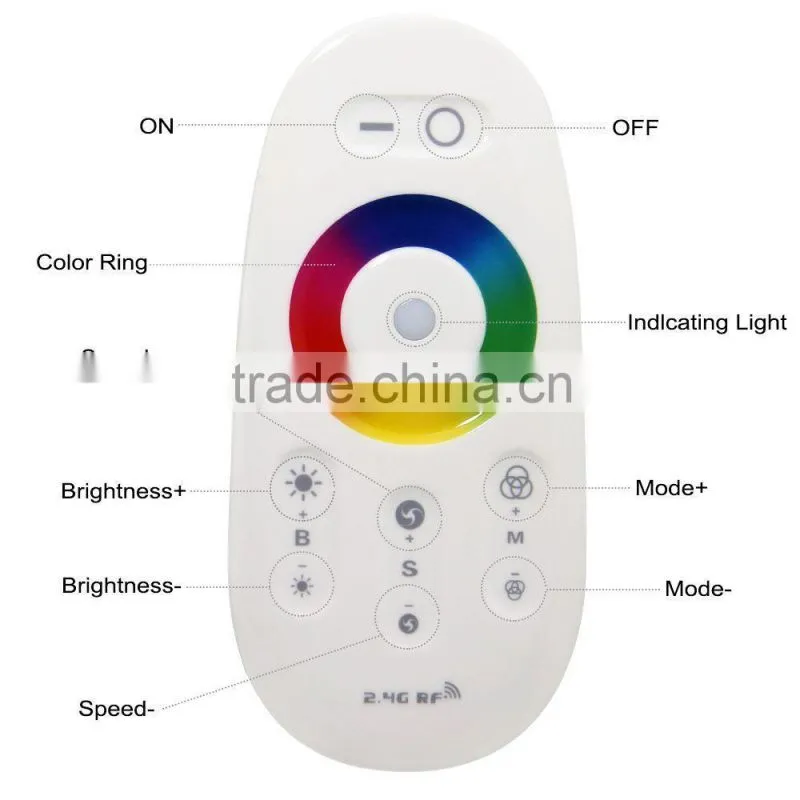

2. Function of Remote

RGB Led Wireless Remote Controller

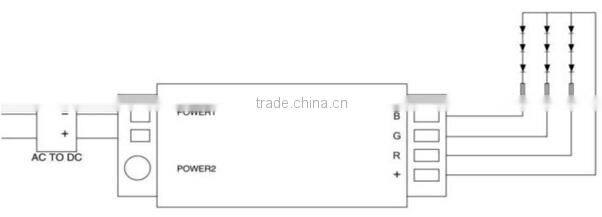

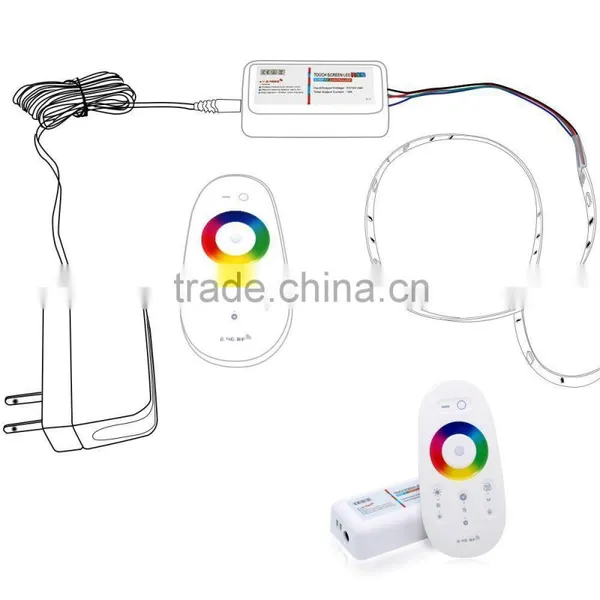

3. Connection for RGB controller with led strips



 RGB Led Wireless Remote Controller



4. Programming(Code Clearing and Code Matching)





Code Matching

For a new kit ( remote& controller), the remote can work only when it is programmed to the controller.

Please follow the below instructions:

Confirm correctly connect the power supply, LED controller and LED load.

Press key 1 once within 3 seconds when power on again,the light will blink 3 times when it is done



Code Clearing

The code can be cleared as needed.

The kit (remote and controller) will stay in the original state after code clearing,and it can work when code matching is done.

Please follow the below instructions:

Confirm correctly connect the power supply, LED controller and LED load.

Press key 1 five times within 3 seconds when power on again, the light will blink 6 times when it is done.



6. Attention



1.Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of both the cathode and anode, otherwise the controller will be broken.



2.Please do not connect wires with power on.Please switch on only when it is in right connection and no short circuit.



3.Please keep your figure off the touching ring when installing the batteries, to improve its sensitivity, and use the remote (3 seconds later) after the installation.Please reinstall the batteries, if the touching ring is found low-sensitivity.



4.Please do not use the controller in the place with widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected.



Package includes:

  • 1 x 2.4G Touch Screen LED RGB Controller
  •  1x RGB Remote Control
