2.4G 4-zone RGBW / RGB  LED Strip Light Controller User Instruction

Welcome to use RGB(W) LED strip light controller. In this manual, you will learn how to use RGB 4-zone controller & RGBW 4-zone controller. Please read the instruction carefully before using.

1. Product Description

With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-inference ability, high speed telecommunication, etc. The remote looks fashionable and elegant, with simple and practical functions of color changing and brightness dimming. The capacitive touch screen design makes the remote easy to use.

2. Technical Data

Remote Size 120 x 52 x 20mm

Power AAA battery*2pcs

Material ABS

Fabrication processing Multicolor printing & UV varnish

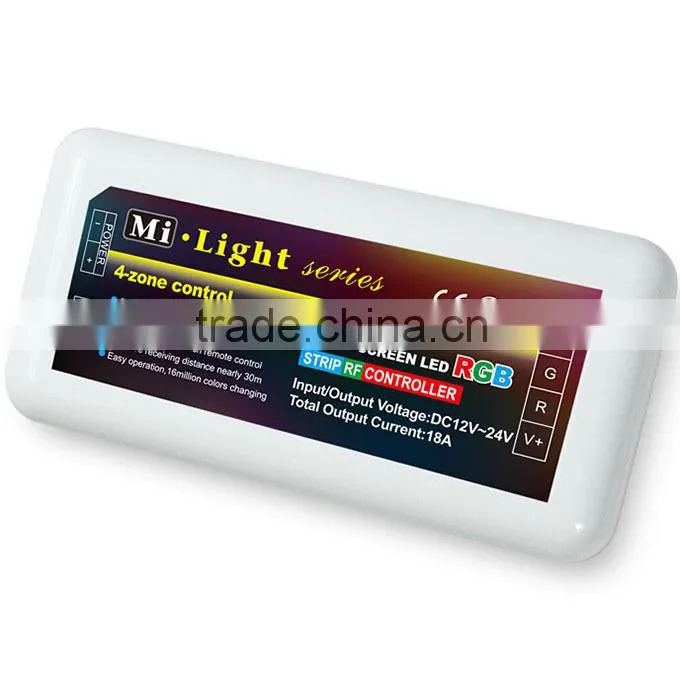

Controller Size 85 x 45 x 23mm

Working voltage DC 12-24V

Control way RGB 3 channels / RGBW 4 channels

Max load per channel 6A

Output connection Common anode

Telecontrol distance 30 meters

Programs 9 types

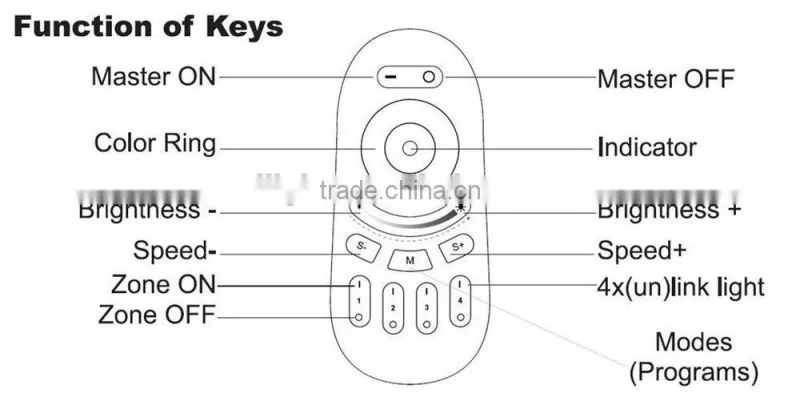

3. Function of Keys

4. Program List

1). RGBW Fade in fade out

2). Color flash

3). Color strobe and flash

4). Red color ramp up and flash

5). Green color ramp up and flash

6). Blue color ramp up and flash

7). Several colors fade into each other and then flash randomly.

8). Different color fade into each other

9). Just white color flashes up

Tips

1. Keep pressing the “Zone ON”, you get the static white color of this zone. Keep pressing the “Master ON”, all zones turns into white.

2. To control RGB(W) lights with individual zone, first press “Zone ON” in this zone, and then control by the color ring or brightness ring.

3. To control lights in all zones synchronously, press the “Master ON” first.

4. For RGB LED strip light, the white is mixed from Red, Green and Blue, so the white is not pure. For RGBW LED strip light, the white is pure white.

Linking new lights to the remote controls:

1. Choose which zone you want to assign the light(zone 1 to 4).

2. Switch off the main power supply of the light in the selected zone with the main switch or pull the plug from the socket.

3. Now switch on the light again and within 3 seconds shortly press one of the “Zone ON” buttons one time on the remote control.

4. When this link operation is successful, the light slowly blinks 3 times and off.

Unlinking the lights:

1. Use the remote to check which zone the light is already linked to.

2. Switch off the main power supply of the light in the selected zone with the main switch or pull the plug from the socket.

3. Now switch on the light again and within 3 seconds long press the “Zone ON” of the selected zone.

4. When the unlink is successful, the light quickly blinks 6 times on and off.

Grouping of several lights

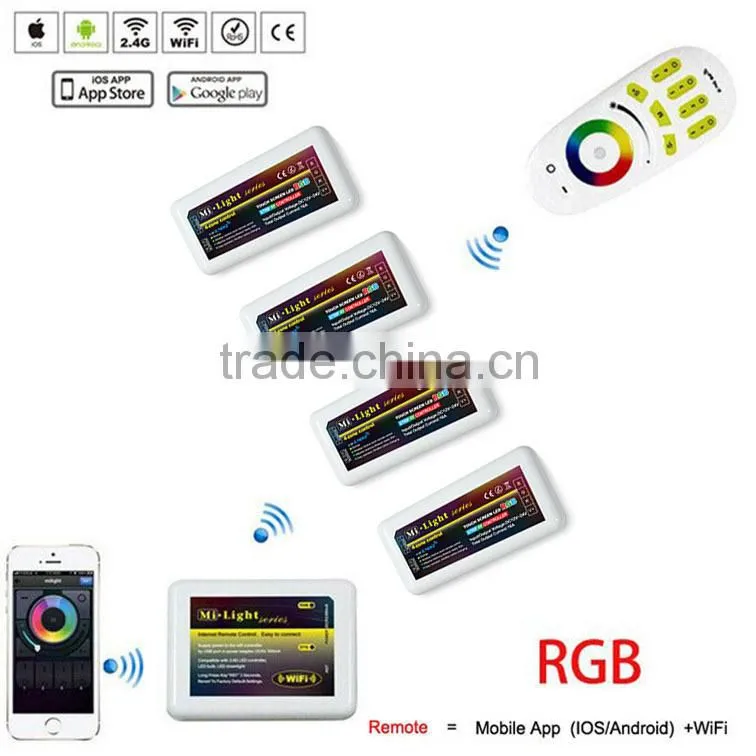

You can add and endless numbers of lights to one zone on the 4 channel remote by linking the lights to different zones. You are completely flexible in creating different group combinations. Below are some grouping examples.

We recommend using rechargeable batteries for the remote controls. For that reason, we don’t include the ordinary batteries. We hope you appreciate our environmental friendly choices and they do not cause you any inconvenience.

Attention

1. The regular product for sale is a kit(remote and controller). The user can re-programme freely as needed. One remote can control countless controllers, but one controller can be controlled by four remotes(Max).

2. Please check the battery installation and the controller(totally discharge the power), when you programme after switching off and switching on.

5. Connection

6. Installation

There is a piece of double faced adhesive tape with the controller for sticking installation.

7. Attention

1). Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of both the cathode and anode, otherwise the controller will be broken.

2). Please don’t connect wires with power on. Please switch on again only when it is in right connection and no short circuit.

3). Pleas keep your finger off the touch ring when installing the batteries to improve its sensitivity, and use the remote (3 seconds later) after the batteries are installed. Please reinstall the batteries if the touch ring is found low-sensitivity.

4). Please do not use the controller in the place widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected.
