Help Center2.0MP Sony Sensor HD TVI High Camera 1080P High Resolution ir Camera Series ir Varifocal Bullet Camera Ip66 Bullet Camera
Related Products
-
Full Metal IP66 960P HD TVI 960H CVBS Two Output Vari Focal Lens Bullet CCTV Camera 1.3MP CMOS Sensor IR Bullet CCTV CameraUS$ 1 - 30MOQ: 1 Piece -
Full HD 1080P High Resolution Camera, 2.0 Mp 27X Zoom Sony Sensor TVI Ptz Camera, IR 120M High Speed Dome CameraUS$ 199 - 248MOQ: 1 Piece
-
Full HD 960P High Resolution Camera, 1.3 Mp 27X Zoom Sony Sensor TVI Ptz Camera, IR 120M High Speed Dome CameraUS$ 199 - 248MOQ: 1 Piece
-
Full HD 1080P Sony CMOS TVI 2MP Varifocal Outside Adjust Lens Lens IR Bullet CCTV CameraUS$ 42 - 57MOQ: 1 Piece
-
1.3MP TVI Color IR Dome CCTV Camera With Progressive Scan CMOS Sensor, Easy Installation, HD Video and OSD Menu Control Over cUS$ 19 - 35MOQ: 1 Piece
Packaging Details: Standard Paper Box Packing/Carton Packing
Delivery Detail: 3-7 Working days since payment arrived
Dome camera :1pcs
Manual:1pcs
Screw bag:1 pcs

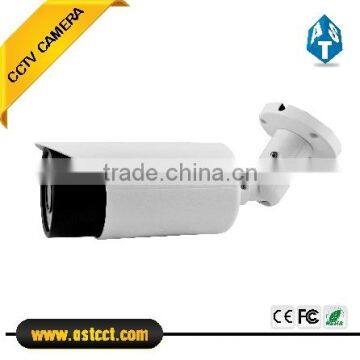

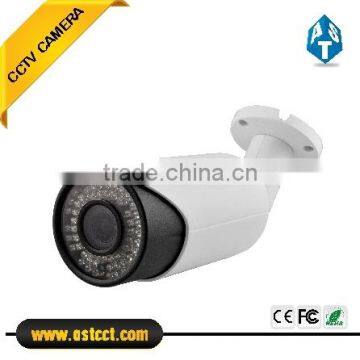

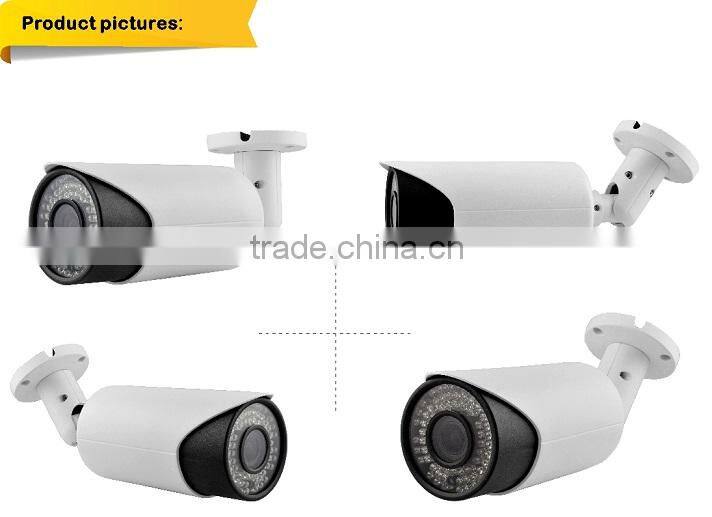

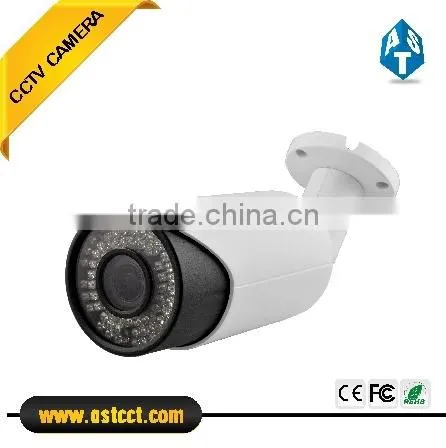

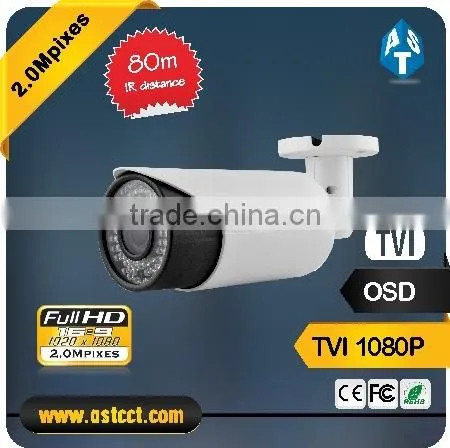

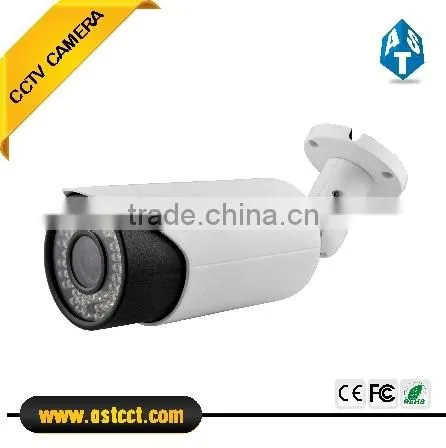

2.0MP Sony Sensor HD TVI High Camera 1080P high resolution ir camera series ir varifocal bullet camera ip66 bullet camera
Camera:
Full HD resolution 1920 x 1080P with Sony IMX322 CMOS sensor,Easy installation, HD video, OSD menu control over coaxial cable
Key Features:
1.Adopt Analog HD technology
2.Full HD 1080P TVI video output
3.1/2.8" 2.1MP Progressive Scan CMOS
4.Min illumination color 0.01 Lux
5.Day/Night(ICR)& 3D DNR&AWB&AGC&BLC
6.Support the OSD menu control
7.2.8-12mm Vari Focal Lens
8.72pcs Ø5 LEDs, up to 80m IR distance
9.Metal housing, support IP66
| Mode | Name and Description |
ASHT70-B36-24 TVI High Definition IR Bullet Camera |
| ASHT70-B36-24 | ||
| Camera | Media Processor | IMX322 + NVP2440H+TP2801 |
| Image Sensor | 1/2.8" 2.1MP Progressive Scan CMOS (SONY IMX322) | |
| Effective Pixels | 1984(H)*1105(V) | |
| Video Frame Rate | 1080p@25fps (PAL)/1080p@30fps(NTSC) | |
| Signal System | PAL/NTSC | |
| Min. Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR | |
| Shutter Time | AUTO, 1/30s~1/50,000s | |
| Lens | 2.8-12mm Vari Focal Lens | |
| Lens Mount | Ø14 Mount | |
| Day& Night | Auto,dual IR-cut filter | |
| IR Distance | 72pcs Ø5 LEDs, up to 80m IR distance | |
| S/N Ratio | >60 dB | |
| Video Output | 1 channel, HDTVI / AHD 1920×1080P , CVBS | |
| Synchronization | Internal Synchronization | |
| Menu | Auto Gain | Low/Middle/High/Off |
| White Balance | AWB/ATW/Indoor/Outdoor/Manual | |
| D-WDR | D- WDR | |
| Noise Reduction | 2D/3D DNR | |
| Private Mask | On/Off, maximum 8 zones | |
| Motion Detection | On/Off, maximum 4 zones | |
| Language | Chinese/English/German/French/Italian/Spanish/polish/Russian/Portuguese/Turkish | |
| Function | AWB, AGC, BLC, HLC , Mirror, Motion Detection | |
| General Parameters | Power Supply | DC12V |
| Operation Temperature | -20℃ - +50℃ | |
| Operation Humidity | Less than 95%RH(no condensation) | |
| Weather Proof Rating | IP66 | |
| Installation | Equipped With Bracket | |

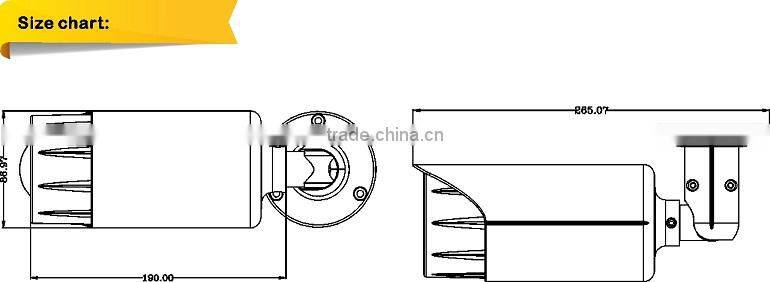

| Dimension | 295*87*87mm | |
| Weight | 0.93KG |
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small
order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
