Home > Products > TVI Camera > 1.3MP TVI Color IR Dome CCTV Camera With Progressive Scan CMOS Sensor, Easy Installation, HD Video and OSD Menu Control Over c

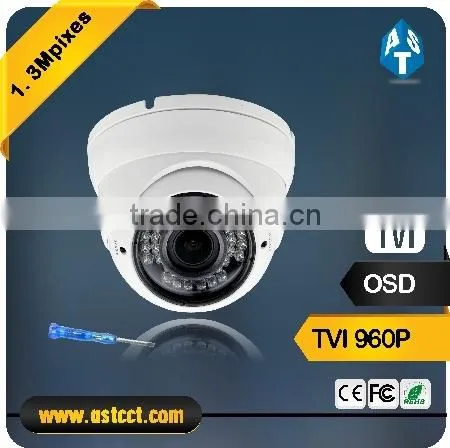

1.3MP TVI Color IR Dome CCTV Camera With Progressive Scan CMOS Sensor, Easy Installation, HD Video and OSD Menu Control Over c
- Shenzhen
- Money Gram
You May Like
-
Metal Housing Full HD 1080P Resolution Sony CMOS Sensor 2.0MP TVI Color IR Dome Cctv Camera
-
2MP Full HD TVI Camera 1080P Sony CMOS Color IR Dome CCTV Camera Quality Choice
-
2.0MP Full HD 1080P TVI Sony CMOS Sensor Color IR Dome CCTV Camera With Fisheyes 360 Degress 2.1mm Lens Support IP66
-
1.3MP TVI CMOS Sensor Color IR Dome CCTV Camera With Fisheyes 360 Degress 3.6mm Lens Support IP66, Mental Housing
-
2.0MP Full HD Tvi Camera 1080P Sony CMOS Sensor Fixed Lens TVI Color IR Bullet CCTV Camera
-
2.0MP Sony COMS Sensor 3.6mm Fixed Lens Full hd TVI Color IR Small Bullet Metal Housing CCTV Camera Quality Choice
Product Details
| Place of Origin | Guangdong, China | Brand Name | AST | |
| Model Number | ASHT36--D7-13 | Type | Digital Camera | |
| Style | Dome Camera | Sensor | CMOS | |
| Technology | Infrared | Special Features | Waterproof / Weatherproof |
Product Description

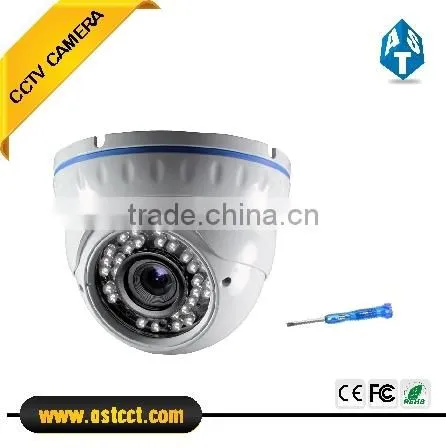

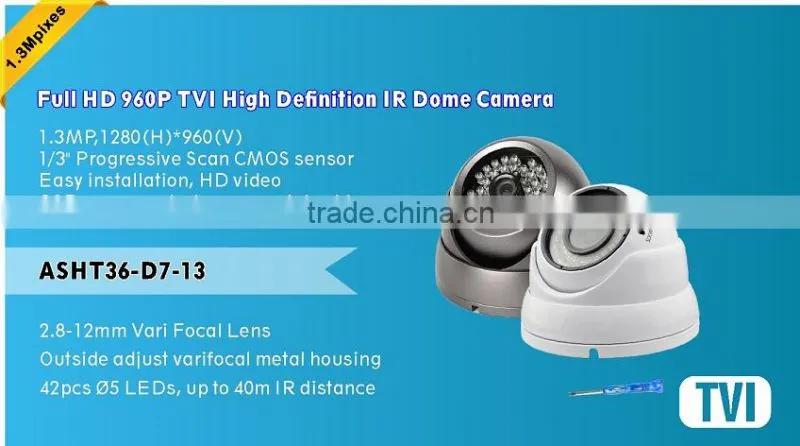

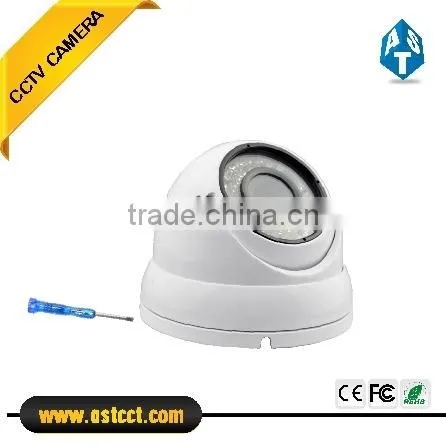

1.3MP TVI Color IR Dome CCTV Camera with Progressive Scan CMOS sensor, Easy installation, HD video and OSD menu control over coaxial cable
Camera:
1.3MP,1280(H)*960(V), 1/3" Progressive Scan CMOS sensor,Easy installation, HD video, OSD menu control over coaxial cable
Key Features:
1.Adopt Analog HD technology
2.HD 720P TVI video output
3.1/3" 1.3MP Progressive Scan CMOS
4.Min illumination color 0.01 Lux
5.Day/Night(ICR)&2DNR/3DNR&AWB&AGC&BLC
6.Support OSD (coaxial control) function
7.2.8-12mm Vari Focal Lens
8.42pcs Ø5 LEDs, up to40m IR distance
tal housing
10.Support IP66
| Mode | Name and Description | ASHT36-D7-13 1.3MP TVI Color IR Dome CCTV Camera |
| ASHT36-D7-13 | ||
| Camera | Media Processor | Aptina O130 +APTINA 8060 |
| Image Sensor | 1/3" 1.3MP Progressive Scan CMOS (Aptina AR0130) | |
| Effective Pixels | 1280(H)*960(V) | |
| Video Frame Rate | 720p@25fps/720p@30fps | |
| Signal System | PAL/NTSC | |
| Min. Illumination | 0.001 Lux @(F1.2,AGC ON), 0 Lux with IR | |
| Shutter Time | Auto/ 1/50 / (1/60) to 1/10,0000s | |
| Lens | 2.8-12mm Vari Focal Lens | |
| Lens Mount | Ø14 Mount | |
| Day& Night | Auto,dual IR-cut filter | |
| IR Distance | 40m | |
| S/N Ratio | ≥44dB(AGC OFF) | |
| Video Output | HD-TVI(720P) / CVBS(960H) | |
| Synchronization | Internal Synchronization | |
| General Parameters | Power Supply | DC12V |
| Operation Temperature | -20℃ - +50℃ | |
| Operation Humidity | Less than 95%RH(no condensation) | |
| Weather Proof Rating | IP66 | |

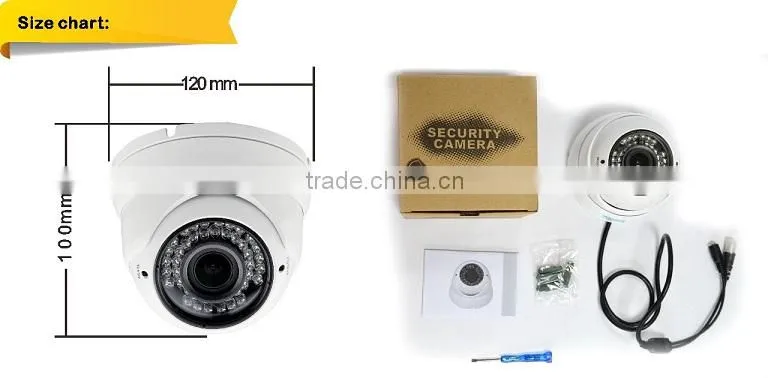

| Dimension | 120*120*100mm | |
| Weight | 0.5Kg |
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small
order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
