Rack-mounted Fiber Optical PLC Splitter

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Billioncom
Model Number	OEO6504

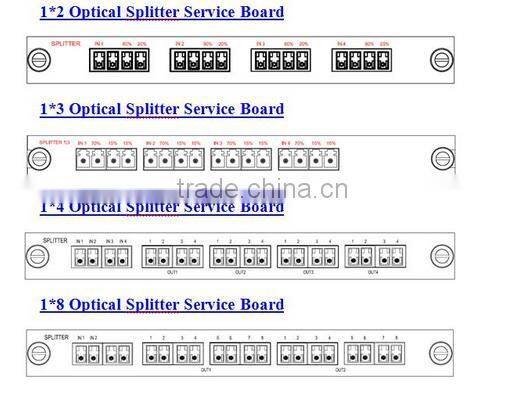

1*2 optical splitter service board provides 16 LC/UPC optical interfaces and supports a
maximum of 4 1*2 splitters;
1*3 optical splitter service board provides 16 LC/UPC optical interfaces and supports a
maximum of 4 1*3 splitters;
1*4 optical splitter service board provides 20 LC/UPC optical interfaces and supports a
maximum of 4 1*4 splitters;
1*8 optical splitter service board provides 20 LC/UPC optical interfaces and supports a
maximum of 2 1*8 splitters.

Specification

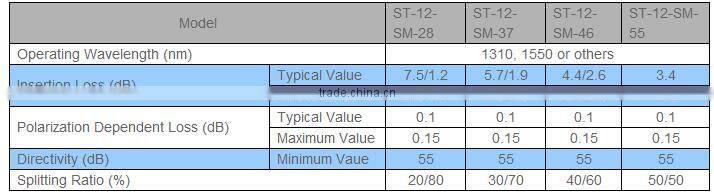

 Performance Specifications of 1*2 Single Mode FBT Splitter:

 Performance Specifications of 1*2 Multimode FBT Splitter:

 Performance Specifications of 1*4 & 1*8 Single Mode PLC Splitter:

 Performance Specifications of 1*16 & 1*32 Single Mode PLC Splitter:

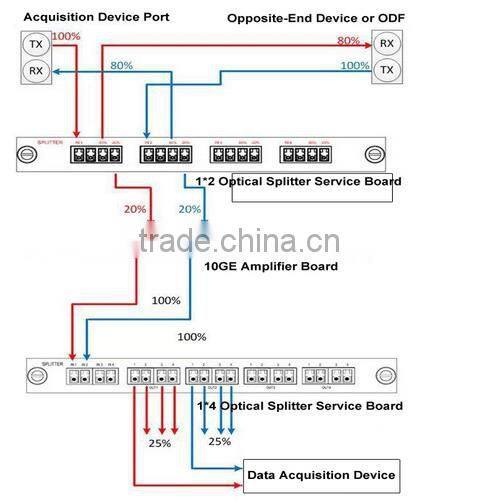

Application
