DSLAM5024V 24 Port DSLAM VDSL

Name: DSLAM5024V 24 Port DSLAM VDSL
Brand: Billioncom
SKU: 101994481
Availability: InStock

DSLAM5024V 24 Port DSLAM VDSL thumbnail-1

DSLAM5024V 24 Port DSLAM VDSL thumbnail-2

DSLAM5024V 24 Port DSLAM VDSL thumbnail-3

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

Billioncom

Model Number:

DSLAM5024V

Contact Supplier Request Quote Chat Now

Billioncom Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name Billioncom

Model Number DSLAM5024V

Product Description

Overview

DSLAM5024V is an advanced 24-port VDSL2 DSLAM, which features as a hardened, good performance network equipment which is suitable for the deployment in the broadband accessing networks. Designed as a 1U standard pizza box, DSLAM5024V is ideal to be installed in the space limited MDU or the external cabinet for the remotely access networks.
DSLAM5024V multiplexes data traffics into two 100/1000Base-T ports or 2 SFP combo optical ports for the uplinks/downlinks. It can connect to any third-party Ethernet switch, WAN router or cascaded VDSL Switch for the data transmission, while splits and forwards the voice traffic through PSTN by its built-in POTS. Its downstream speed rate is up to 100Mbps while that of the upstream is up to 50Mbps.
DSLAM5024V can provide a high-performance VDSL traffic and support a good-compatibility for the triple play as well based on the special powerful Network Processor. Since the network controlling signals and data traffic going in the separated paths, DSLAM5024V can not only provide the high bit rate services, but also support L2/L3 features including DHCP (Option-82), IGMP Snooping/Proxy,
IP/ARP Spoofing, Forced MAC Forwarding, QoS and Security/Filtering etc in either Bridged or VLAN Switched modes.

Features

VDSL2 link for downstream/upstream: 100/50 Mbps (Max)
Supporting all seven(7) VDSL2 profiles(8a/8b/8c/8d/12a/12b/17a)
Providing 2x100/1000Base-T Ethernet and 2x Gigabit Fiber uplink/downlink (combo)
Providing VLAN, Multicasting, and Priority queue, classifier and policy rule and traffic shaping
Providing 802.1x Service Authentication
Offering a rich set of advanced features such as IGMP snooping, MVR, MAC filtering, ACL
Providing SNMP management & CLI
Build-in splitter Available
Hardened design for both indoor and external cabinet

Specifications

Specifications

VDSL2 ITU-T G.993.2
Profile 8a/8b/8c/8d/12a/12b/17a
ADSL and ADSL2+ Backwards Compatible
802.1q VLAN, 802.1p VLAN Priority
VLAN Q-in-Q
Spanning Tree Protocol (IEEE 802.1d/w)
Link Aggregation (IEEE 802.3ad)
DHCP (Option 82)
RFC 4562: Forced MAC Forwarding

Protocols Supported

Web based management
SNMP-based GUI EMS
Local RS-232 CLI
Remote in-band SNMP/TELNET management
Firmware upgradeable via web, FTP or TFTP

Interfaces

2 RJ45 for Uplink
1 TELCO-50 connectors ( including 24pairs phone line) link to PSTN
1 TELCO-50 connectors ( including 24pairs phone line) link to ADSL2+ users
1 DB9 male (Null Modem) for Local Management

Physical Dimensions

44mm x 440mm x 280mm (HxWxD)

Power Supply

DC: 42V to -56V
AC: 100V - 240V (50~60Hz)

Power consumption

75 watts (nominal)
90 watts (max)

Operating Environments

Operating : -10°C to 60°C
Storage: -40°C to 80°C
Relative Humidity: Up to 95% (non-condensing)ing

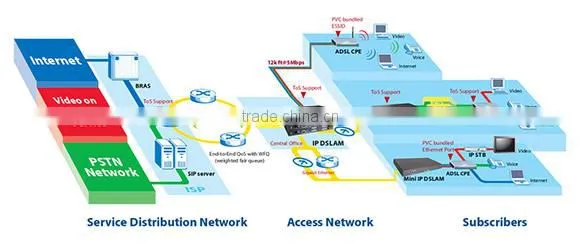

Applications

Applications

Product Category

Product Category

Factory Production

Production & Testing

Raw Materials & Finished Products Warehouse

FAQ

FAQ

1. How can I contact you?

Here is our contact information:

2. Can you do OEM for us?

Yes. If there is a certain order quantity, we can do OEM including printing, logo, customized model for you.

3. How can I place an order?

(1) Agreement is achieved on the product price and product specifications.

(2) We make proforma invoice for your confirmation.

(3) When you agree on the proforma invoice, you make the payment.

(4) We deliver the goods after we receive your payment.

4. What are your terms of payment?

Usually, we can accept T/T, Paypal and Western Union. You can select the terms of payment which is more convenient for you.

5. What about the lead time?

Usually, if there is stock of goods, we will deliver the goods within 3~5 work days after we receive the payment.

6. How about the shipping?

Usually, we will deliver the goods via International Express like Fedex, DHL, TNT, UPS and so on. Door to door delivery service will be provided.

7. What are the advantages of your products?

A. Good quality and competitive prices.

B. Strict quality control during production process.

C. Professional operations in processes of production, sales, assembling, packaging and shipping.

D. Good aftersale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods.
