Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > OSU6132 Dual 1X16 Optical Switch Unit
OSU6132 Dual 1X16 Optical Switch Unit
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Billioncom
Model Number:
OSU6132
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dual 1x8 Optical Switch Splitter Optical Selector 8 in 1 OutNegotiableMOQ: 1 Unit -
Dual 1x16 Optical Switch Splitter Optical Selector16 in 1 OutNegotiableMOQ: 1 Unit
-
OSU6116 Optical Switch UnitNegotiableMOQ: 1 Unit
-
Rack-mounted Fiber Optical PLC SplitterNegotiableMOQ: 1 Unit
-
DSLAM5024 24 Ports ADSL DSLAM IP DSLAMNegotiableMOQ: 1 Set
Place of Origin
China
Brand Name
Billioncom
Model Number
OSU6132
Overview
The optical switch unit OSU6132 is used for monitoring multiple channels of optical signals, automatic switching between LAN multiple light source and the detector, as well as optical sensing of multi-point dynamic monitoring system. Real-time monitoring of multiple optical channels by only one unit of device can be realized, so as to save the investment on devices.
Two working modes--manual routing and custom duration routing are provided for option. The insertion loss is less than 1.1dB, and the switching time between adjacent channels is less than 10ms. A variety of management modes such as heartbeat protocol management and local console are supported. Moreover, LED display and buttons are designed, which enable users to manually check the device status with easy operation and without any extra tool.
Features
It is with low insertion loss and fast switching speed.
LCD display is adopted, which can intuitively display the data and is easy for operation.
Automatic scan can be set, and the step is one second. Moreover, the starting channel and the ending channel of the scan can be set.
It supports heartbeat protocol management and local console management.
It supports 1+1 redundant power supply.

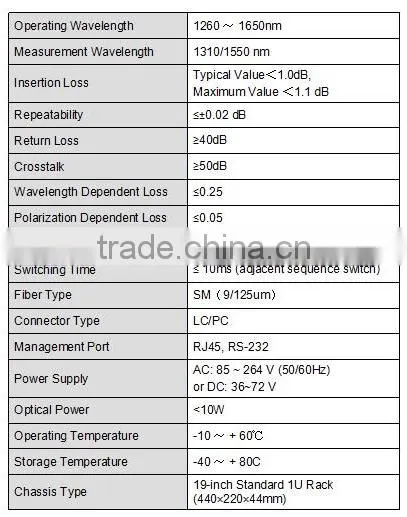

Performance Specifications
Send Inquiry to This Supplier
Business Type
Trading Company
Year Established
2011
Factory Size
Below 1,000 square meters
Total Employees
11 - 50 People
