Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > MA3000LI Portable Data Acquisition Equipment

MA3000LI Portable Data Acquisition Equipment

Name: MA3000LI Portable Data Acquisition Equipment
Brand: Billioncom
SKU: 101993835
Availability: InStock

MA3000LI Portable Data Acquisition Equipment thumbnail-1

MA3000LI Portable Data Acquisition Equipment photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

Billioncom

Model Number:

MA3000LI

Contact Supplier Request Quote Chat Now

Billioncom Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name Billioncom

Model Number MA3000LI

Product Description

Overview

MA3000LI is a portable FPGA-based multi-functional access network data acquisition equipment which was based on original data acquisition equipment, it supports EPON, GPON, ETH,ADSL optical and ETH electric three-mode access, and can access at central office or the client.

The device restore the uplink/downlink protocol data of original link to ETH message and send it to protocol analyzer platform via the mirror port, the device don’t interrupt the original link data at the same time. It supports separate mirroring for uplink/downlink user message, and also supports united mirroring. The device supports loseblockout function for uplink/downlink link data, it can realize data filtering function which is based on the target user, and it can adopt two kinds of access modes which are cascading and parallel deploy with protocol platform aim at target user.

Advantage

Advantage

Easy for installation and operation;
Compact structure which is easy to carry;
GUI management, Simple and user-friendly;
Compatible with GPON,EPON,ADSL and ETH;
A key switch between GPON and EPON;
Cascade and parallel modes are supported.

Features

Features

GPON	Compatible with ITU-T G.984.X
	Supports 256 ONU
	Supports power-off protection
	Supports the filtering for GPON
	Supports the filtering for PPPOE Username link
	Supports the data filtering for the GEM port (external VLAN)
	Supports filtering data blocking-up for uplink and downlink
	Adaptive AES encryption
	Uplink/downlink mirroring, transmit and input message statistics
EPON	Compatible with IEEE 802.3ah
	Supports 64 ONU
	Supports power-off protection
	Supports the filtering for PON MAC
	Supports data blocking for uplink/downlink
	Adaptive triple churning encryption
	Uplink/downlink mirroring, transmit and input message statistics
ADSL	Supports ADSL2+/ADSL2/ADSL
	Supports IPTV access
	Supports power-off protection
	External connection recording box, supports voice output
Ethernet	Compatible with IEEE802.3TM, IEEE802.3X
	Supports 1000/100/10 BASE-T, 1000 BASE-X
	Supports VLAN transparent transponder
	Supports double-beck VLAN (SVLAN) transparent transponder

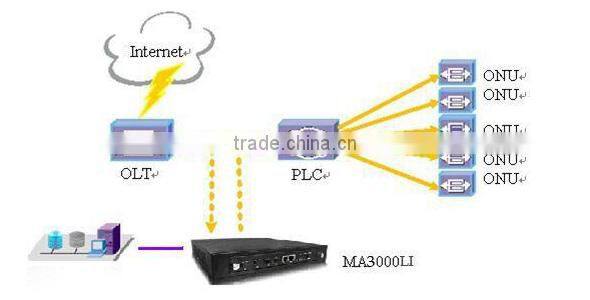

Application

Typical Application

Product Category

Product Category

Factory Production

Production & Testing

Raw Materials & Finished Products Warehouse

FAQ

FAQ

1. How can I contact you?

Here is our contact information:

2. Can you do OEM for us?

Yes. If there is a certain order quantity, we can do OEM including printing, logo, customized model for you.

3. How can I place an order?

(1) Agreement is achieved on the product price and product specifications.

(2) We make proforma invoice for your confirmation.

(3) When you agree on the proforma invoice, you make the payment.

(4) We deliver the goods after we receive your payment.

4. What are your terms of payment?

Usually, we can accept T/T, Paypal and Western Union. You can select the terms of payment which is more convenient for you.

5. What about the lead time?

Usually, if there is stock of goods, we will deliver the goods within 3~5 work days after we receive the payment.

6. How about the shipping?

Usually, we will deliver the goods via International Express like Fedex, DHL, TNT, UPS and so on. Door to door delivery service will be provided.

7. What are the advantages of your products?

A. Good quality and competitive prices.

B. Strict quality control during production process.

C. Professional operations in processes of production, sales, assembling, packaging and shipping.

D. Good aftersale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods.
