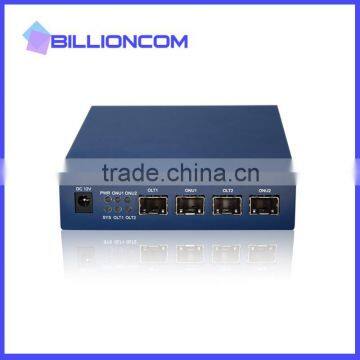

FTTH Dual Link PON Repeater GPON Extender / Amplifier

Overview

Billioncom presents the compact GPON Repeater for optical access networks. It is a physical layer device capable of working transparently with GPON optical interfaces defined in ITU-T G984.2 standard. This active repeater can extend the overall fiber length up to 60km and expand the fiber splitting ratio significantly.

GA3302 is dual link GPON OEO Repeater (GPON Amplifier) which provides 3R (i.e. re-amplification, reshaping and retiming) regeneration to signals during optical transmission, make transmission distance longer and support more users.

Principle

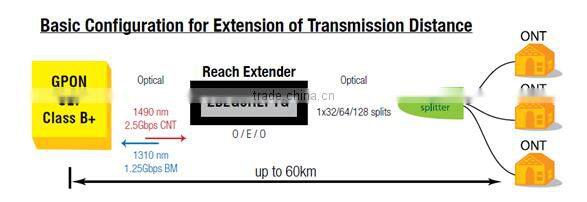

Basic Configuration for Extension of Transmission Distance

Highlight

• Fully compliant to standard GPON system operation
• Reach extension for GPON up to 60km
• Support cascading for multiple amplifier
• Increase the PON splitting ratio
• Small-instrument and easy to use
• Reduce CAPEX and OPEX in suburban and rural deployments.

Power Supply

• Power supplied by Rack chasiss
• Power supply: 12VDC
• Power Consumption: <=5 Watts

Environment Condition

Operating temperature:  -20C~+70 C

Storage temperature:   -40 C~+80 C

Relative temperature: 95% (uncondensed)

Application
