Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > ONU300E-1G One PON Port EPON ONU

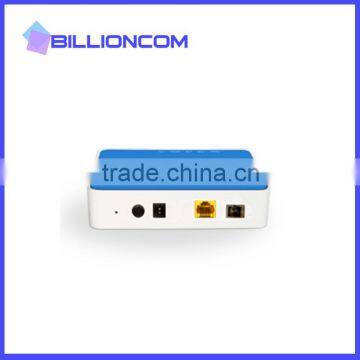

ONU300E-1G One PON Port EPON ONU

Name: ONU300E-1G One PON Port EPON ONU
Brand: Billioncom
SKU: 101993725
Availability: InStock

Billioncom Technologies Co., Ltd.

ONU300E-1G One PON Port EPON ONU thumbnail-1

ONU300E-1G One PON Port EPON ONU thumbnail-2

ONU300E-1G One PON Port EPON ONU thumbnail-3

ONU300E-1G One PON Port EPON ONU photo-1

ONU300E-1G One PON Port EPON ONU photo-2

ONU300E-1G One PON Port EPON ONU photo-3

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Billioncom

Model Number:

ONU300E-1G

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Billioncom

Model Number ONU300E-1G

Product Description

Product Overview

ONU300E-1G is an EPON-technology-based ONU designed for home and SOHO (small office and home office) users. It meets the technical requirements for access network. A variety of services such as High-speed Internet access, online video on demand, video conference and large file transfer service can be provided to users.

Features

Features

Ø Meet FTTH requirements and provide high-speed Internet access;

Ø Compliant with IEEE802.3-2005 Standard and compatible with mainstream OLT in the industry;

Ø Support DBA (Dynamic Bandwidth Assignment);

Ø Support OAM(Operations Administration and Maintenance) and extended OAM;

Ø Support uplink and downlink bidirectional FEC (Forward Error Correction);

Ø Support powerful and perfect QoS function, which makes it meet the needs of different buiness;

Ø Support 1Gbps of uplink and downlink symmetric PON transmission rate;

Ø 10M/100M/1000M rate, full/half duplex self-adaption;

Ø Support IGMP Snooping and controllable multicast;

Ø Support transparent transmission, conversion and aggregation of VLAN;

Ø Support power off alarm and data encryption;

Ø Linux-based operating system ensures stable and smooth operation;

Ø Comprehensive and detailed network management, as well as the web interface which is easy and simple

to operate;

Ø Concise and clear indicator light status enables quick and accurate fault location;

Ø Support remote firmware upgrade of the device, which allows easy maintenance;

Ø Small size and light weight makes it easy for upgrade and reconstruction of the old network.

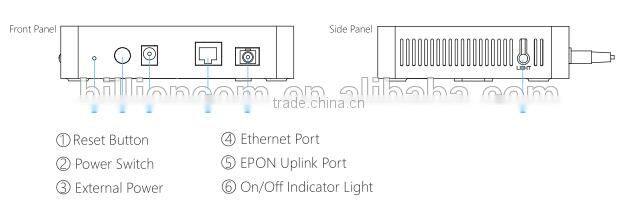

Interface Description

Specifications

Technical Specifications

Item	Description
Interface	1GE port, 1 PON port
Power Supply	DC 12V 1A
Operating Temperature	-5℃~50℃
Operating Humidity	10%~90% (non condensing)
Dimensions	13411030
Weight	<1KG

Application

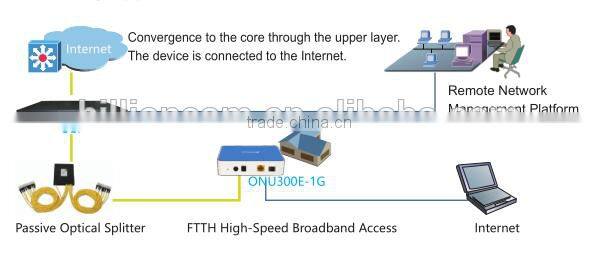

Networking Application

Product Category

Product Category

Factory Production

Production & Testing

Raw Materials & Finished Products Warehouse
