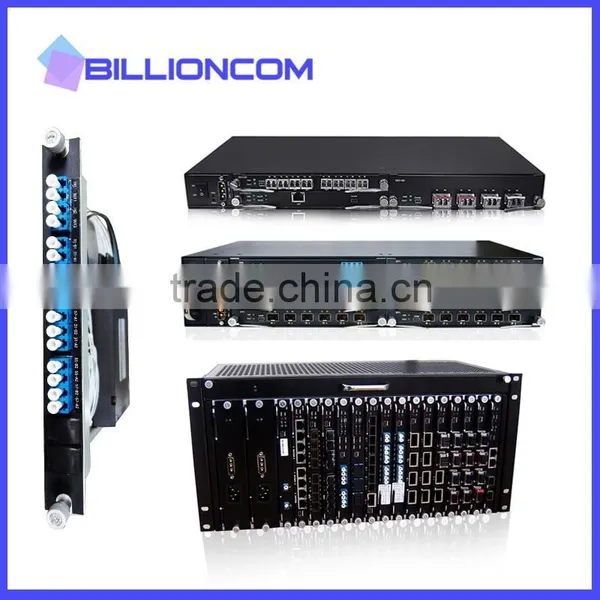

Overview:

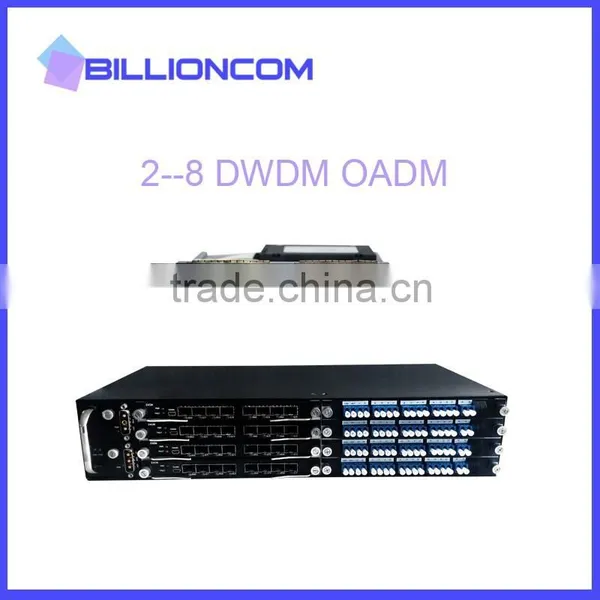

OEO6500-OADM is an optical add-drop multiplexer (OADM) is used in wavelength-division multiplexing (WDM) systems for multiplexing and routing different channels of light into or out of a single mode fiber (SMF).
The WDM OADM card is a passive optical add/drop multiplexer designed for point-to-point, ring, or bus configurations' applications that provides the ideal solution for the increasing bandwidth demand on enterprise and metro access networks and delivers dramatic cost savings to network equipment manufacturers, enabling them to develop metro access systems that are lower in cost, easier to provision and simpler to operate.

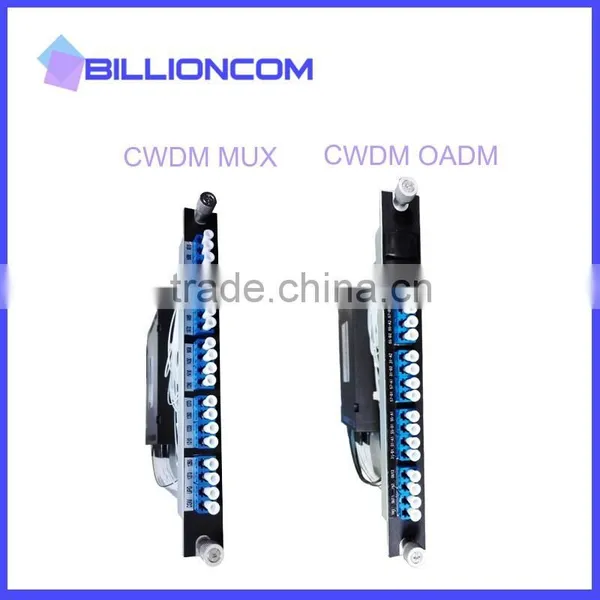

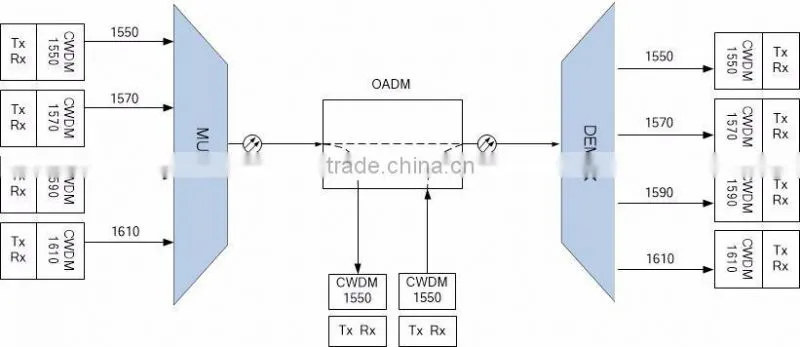

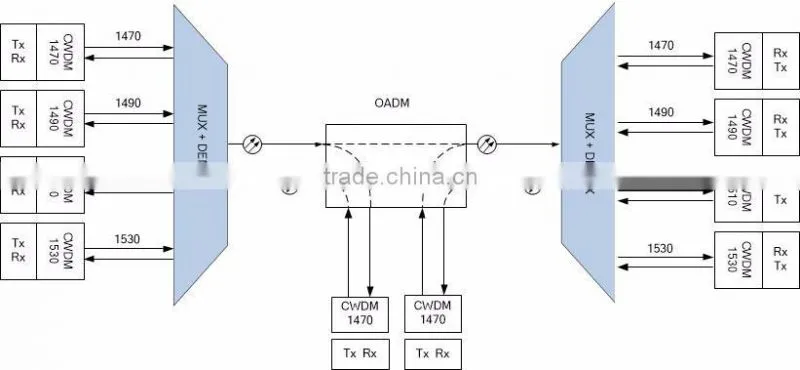

Dual Fiber Transmission 2 Channel CWDM OADM
Signal Fiber Transmission 1 Channel CWDM OADM
Singal Transmission 1 Channel DWDM OADM

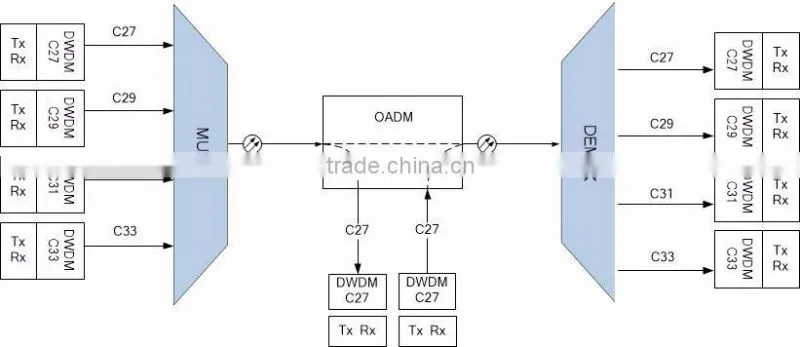

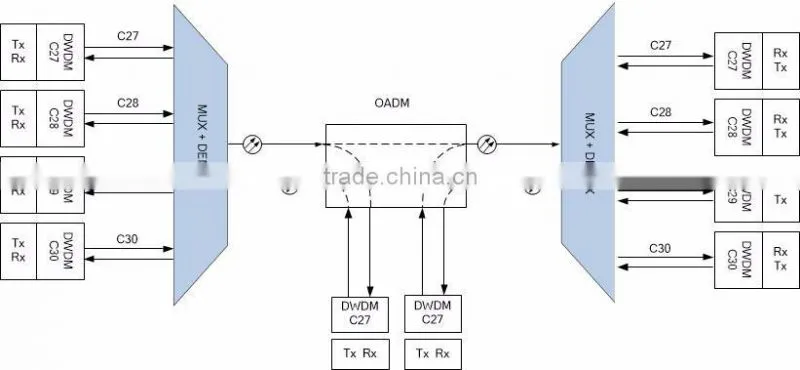

Dual Transmission 2 Channels DWDM OADM
Features:
- Low Insertion loss
- Wide Pass Band
- High Channel Isolation
- High Stability and Reliability
- Epoxy Free Optical Path
Application:
- WDM Network
- Telecommunication
- Metro Network
- Access System
Performance Specifications
Parameter |
OADM |
||
Product Code |
OEO6500-OMUX-OADM- D-C-01 |
OEO6500-OMUX-OADM-D-C-02 |
|
Operating Wavelength |
1260~1620nm |
||
Wavelength Number |
1 |
2 |
|
Center Wavelength Accuracy |
±0.5nm |
||
Bandwidth @ -0.5dB |
≥ 14 |
||
|
Insertion Loss
|
Port A1 to W1, A2 to E2 |
≤0.6dB |
|
Port E1 to D1, W2 to D2 |
≤0.6dB |
≤1.0dB |
|
Port E1 to W1, W2 to E2 |
≤0.7dB |
≤1.3dB |
|
Directivity |
≥ 50dB |
||
Return Loss |
≥ 45dB |
||
Adjacent Channel Isolation |
≥ 30dB |
||
Non-Adjacent Channel Isolation |
≥ 40dB |
||
Polarization Dependent Loss |
≤0.1 dB |
||
Temperature Dependent Loss |
≤0.15 dB |
≤0.20 dB |
|
Optical Power Handling |
≥ 300mW |
||
Operating Temperature |
0 to +65℃ |
||
Storage Temperature |
-40 to +85℃ |
||
Fiber Type/length |
SMF-28e, 1+/-0.1m |
||
Connector Type |
Customer Specify |
||
Packaging Dimension |
D-case: 120 x 80 x11.6mm O-Case: 100x80x10 mm F-Case: 80x60x12 mm L-Case: 120x80x18 mm |
||
