DWDM Rackmounted EDFA:
STEDFA-SO-t-CW40-pp/Ggg(V)-(abc)-x-y is a family of gain-flattened unidirectional EDFA. Its working wavelength is normally C-Band (1529~1561nm), special working wavelength range can be discussed with Sino-Telecom. Because of adopting optimal design of optical path, it can amplify the C-Band signal with or w/o middle stage access (MSA), at fixed gain or variable gain, which brings great flexibility for the network application. Besides, for adopting high quality GFF and reasonable design of optical path, it achieves very good gain flatness and very low noise figure. Optical supervisory channel (OSC) is optional function integrated in the rack. It can be dropped /added outside, or bypass internal, or amplified by OSC OEO module.
The EDFA has the world's top class pump laser and erbium-doped optical fiber. Perfect AGC, APC and ACC control, excellent design in ventilation and heat-dissipation ensure the long life and high reliable work of pump laser. The laser will switch off automatically if optical power is missing. RS232 and RJ45 offer serial commutation and SNMP network management port, which make the remote control available.
Features:
- Operating wavelength: 1529~1561nm (Extended band is available)
- Multi-working mode, AGC, APC, ACC
- Gain, power can be adjusted by remote control
- Transient control
- ASE compensation at small signal
- Excellent gain flatness and NF
- Middle stage access, optional function
- Output monitor port
- OSC channel, dropped /added outside, bypass, optional function
- OSC OEO amplification, optional function
- Perfect RS232 communication interface and SNMP function
- 1U, 19’’ rack mounted
- 220VAC or -48VDC dual power supply, optional.
Applications:
- DWDM Optical communication system, LH, ULH
- Network protection or upgrade
Specification
Different part number has different specification. The part number refers to the order information at ordering information. Here some examples are for reference.
Fixed gain amplifiers

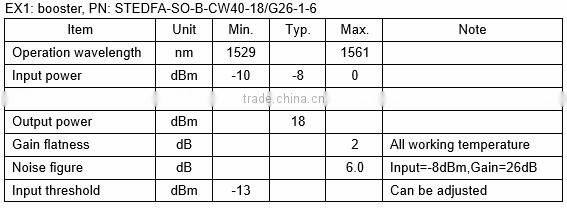

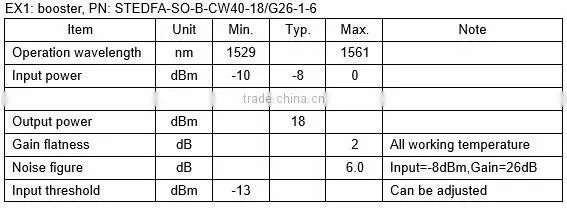

EX1: Booster Amplifier, PN: STEDFA-SO-B-CW40-18/G26-1-6

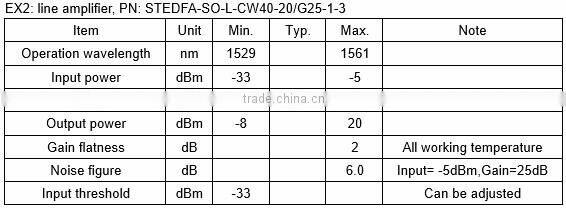

EX2: Line Amplifier, PN: STEDFA-SO-L-CW40-20/G25-1-3

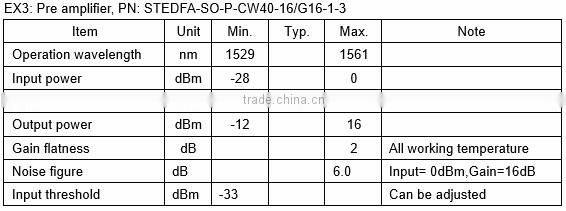

EX3: Pre Amplifier, PN: STEDFA-SO-P-CW40-16/G16-1-3
Fixed gain amplifiers with MSA

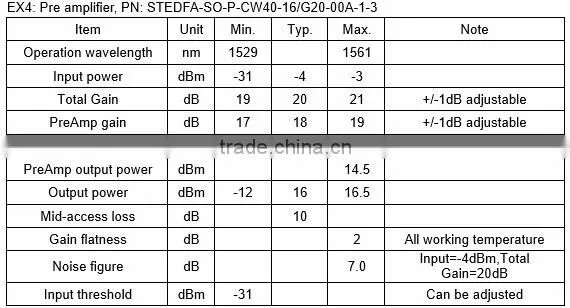

EX4: Pre Amplifier, PN: STEDFA-SO-P-CW40-16/G20-00A-1-3

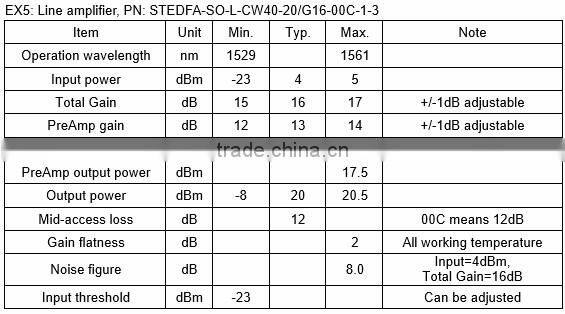

EX5: Line Amplifier, PN: STEDFA-SO-L-CW40-20/G16-00C-1-3
Variable gain amplifiers with MSA

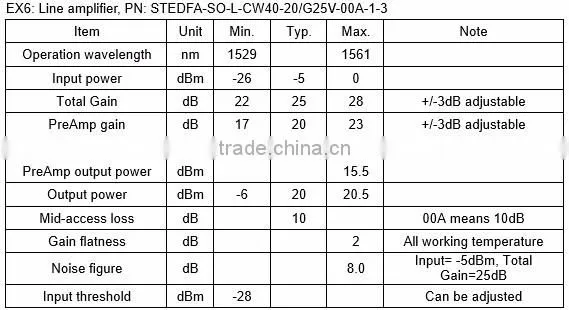

EX6: Line Amplifier, PN: STEDFA-SO-L-CW40-20/G25V-00A-1-3

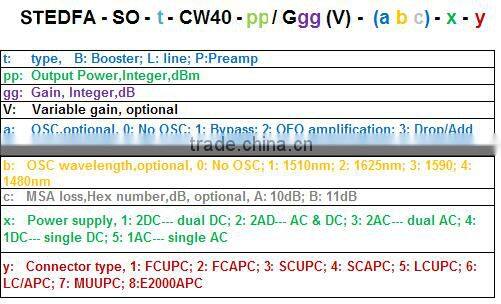

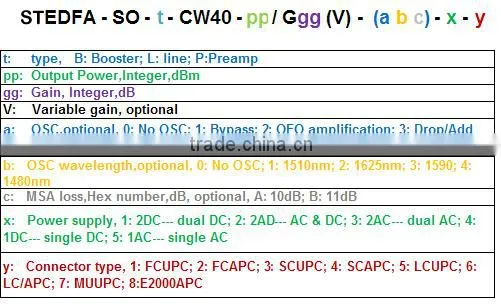

Ordering Information:
