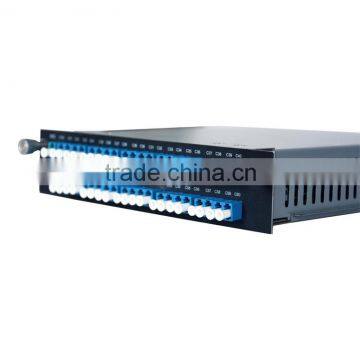

Help CenterPassive 40 Channel DWDM Mux and DeMux
Related Products
-
High Capacity DWDM / CWDM Network Optical Transport SystemNegotiableMOQ: 1 Pair -
20KM Low Insertion Loss DCM Dispersion CompensationNegotiableMOQ: 10 Units
-
C-band DWDM EDFA Pre-Amplifier Erbium Doped Fiber AmplifierNegotiableMOQ: 1 Unit
-
C-band DWDM EDFA Booster AmplifierNegotiableMOQ: 1 Unit
-
DWDM System Fiber Optical Line AmplifierNegotiableMOQ: 1 Unit
Product Overview:

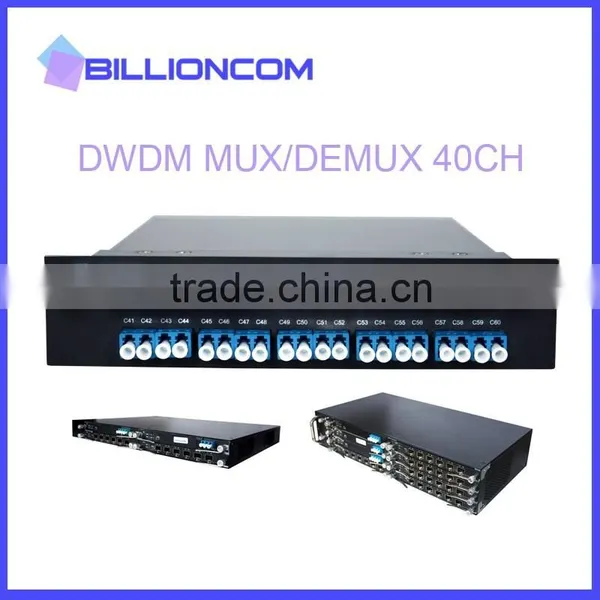

40 channels DWDM MUX and DeMux card provide excellent solution for infrastructure savings by aggregating 40 different wavelengths onto a single fiber. These products are protocol transparent and completely passive, therefore are in use also in non-powered intermediate locations in a DWDM networks. All 40 channels are in the C-band with spacing of 100 GHz between channels using high quality Arrayed Waveguide Grating (AWG) technology.
Dual Fiber Transmission 4 Channels DWDM Mux and Demux
BIDI Transmission 4 Channels DWDM Mux and Demux
Singal Fiber Transmission 4 Channels DWDM Mux and Demux
Features:
- High isolation
- Low insertion loss
- Completely passive
- Expoxy-free optical path
- Low total integrated crosstalk
- Excellent stability & reliability
- Excellent wavelength accuracy & stability
- Athermal design
Applications:
- Wavelength Routing
- Fiber Optical Amplifier
- CATV Fiber Optical System
- DWDM Metro and Long Haul Networks
- Fiber savings for Data Centers connectivity
Specifications:
Parameter |
Value |
Number of Channels |
40 |
Channel Spacing |
100Ghz |
Operating Wavelength |
C-band |
Passband Frequency |
±0.1nm |
Wavelength Accuracy |
±50pm |
Insertion Loss |
<6.0dB |
Consistency of Insertion Loss |
<1.2dB |
Insertion Loss Flatness |
<0.5dB |
0.5dB Passband |
>0.2nm |
1dB Passband |
>0.4nm |
3dB Passband |
>0.6nm |
20dB Passband |
<1.2nm |
Adjacent Channel Isolation |
≥25dB |
Non-Adjacent Channel Isolation |
≥30dB |
Total Crosstalk |
22 dB |
Return Loss |
≥40dB |
Polarization Dependent Loss |
<0.5ps |
Polarization Mode Dispersion |
<0.5ps |
Maximum Load Optical Power |
24dBm |
Monitoring Range of Optical Power |
-35dBm ~ +23dBm |
Connector Form |
LC/UPC |
Operating Temperature |
-10~+65℃ |
Relative Humidity |
95% |
