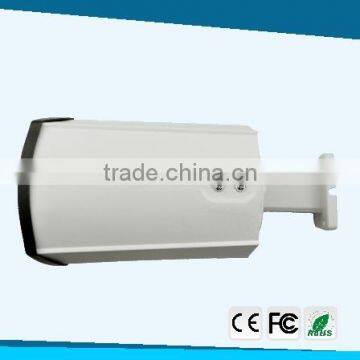

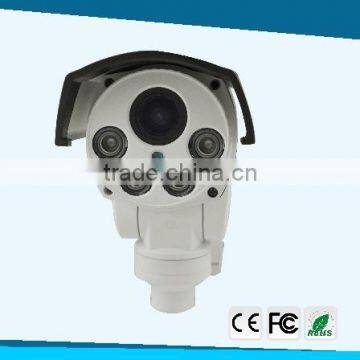

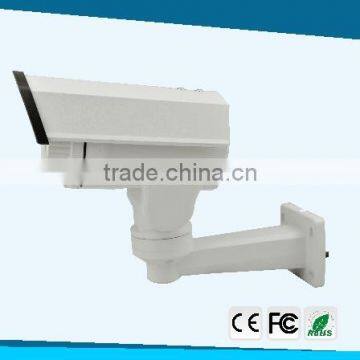

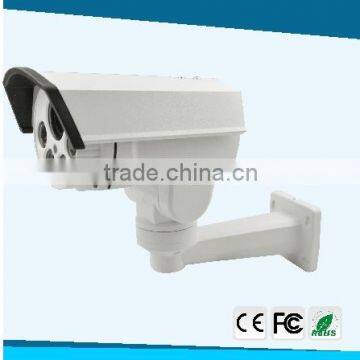

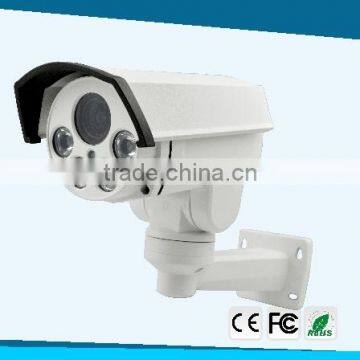

Help CenterAuto Focal Lens Star Light 4X Motorized Zoom 2.0MP Full HD 1080P AHD Color IR PTZ Bullet Camera Quality Choice
Related Products
-
Hot !New !Housing 1080P Security AHD Bullet Camera 2.0MP Mini Bullet CCTV CameraNegotiableMOQ: 50 Pieces -
New Product 2.8-12mm Vari Focal 1080P IMX322 AHD 42pcs LEDs IR 2015 CCTV Bullet CameraNegotiableMOQ: 50 Pieces
-
4X Motorized Zoom AHD Camera 2.0MP PTZ AHD Color IR Bullet Security Camera 80m IR Long DistanceNegotiableMOQ: 50 Pieces
-
Outdoor 27X Mini Speed Dome Camera DWDR Pan/Tilt/Zoom Camera AHD 1080P Quality ChoiceNegotiableMOQ: 50 Pieces
-
Manufacturer 36X Full HD 1080P AHD PTZ Camera F=4.6mm~152mm IR 120m OEM Pan/Tilt/Zoom CameraNegotiableMOQ: 50 Pieces
| Technical | ||
|

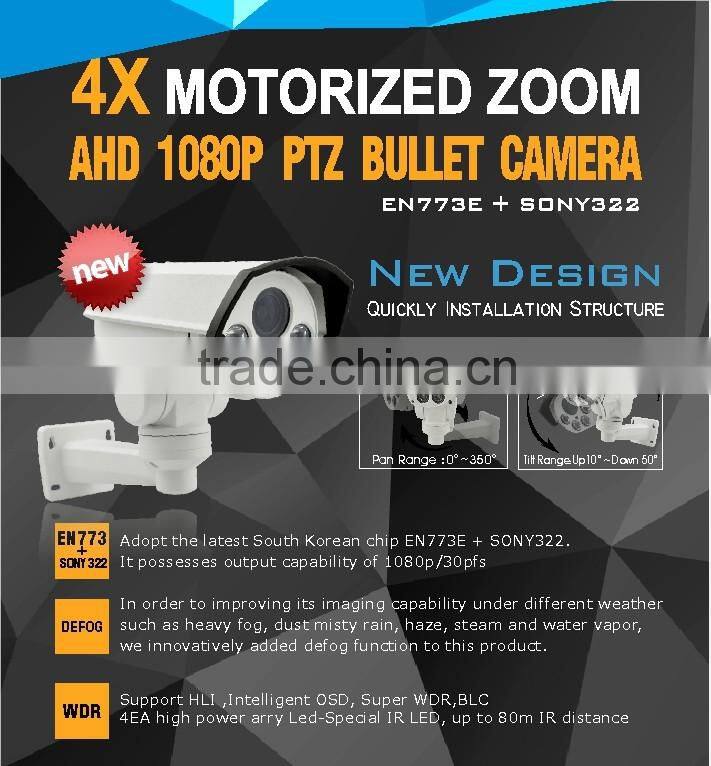

Auto Focal Lens star light 4X Motorized Zoom 2.0MP Full HD 1080P AHD Color IR PTZ Bullet Camera Camera: Adopt the latest South Korean chip EN773E + SONY322 ,It possesses output capability of 1080p/30pfs, This product owns excellent color restoration due to its high resolution and strong sensitivity, Within unique digital processing technology, It aims at improving imaging sensitivity; Reduce the imbalance and defection when dealing with optical signals. Equipped with superb low-light-level imaging capacity, It can easily distinguish the appearance and color of the target object under 0.017 lux environments. Key Features: 1.Adopt Analog HD technology 2.Full HD 1080P AHD video output 3.1/2.8" 2.1MP Progressive Scan CMOS 4.Min illumination color 0.017 Lux 5.In order to improving its imaging capability under different weather such as heavy fog, dust misty rain, haze, steam and water vapor, we innovatively added defog function to this product. 6.Support HLI ,Intelligent OSD, Super WDR,BLC 7.Support Gain Control, Motion Detection, Privacy Masking, Mirror, Flip and Sharpness etc 8.Support OSD Menu, offering convenient and simple operation 9.4X( 2.8 ~12mm) Motorized Zoom Auto Focal Lens 10.4EA high power arry Led-Special IR LED, up to 80m IR distance 11.Metal housing | ||
| Form parameters | ||
| Mode | Name and Description |
2.0MP AHD Color IR PTZ Bullet Camera |
| ASHA400-004-020 | ||
| Camera | Media Processor | EN773E + IMX322 |
| Image Sensor | 1/2.8" 2.1MP Progressive Scan CMOS (SONY IMX322) | |
| Effective Pixels | 1984(H)*1105(V) | |

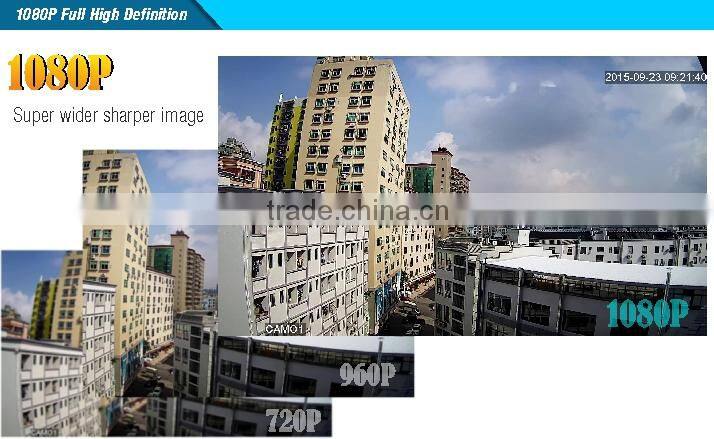

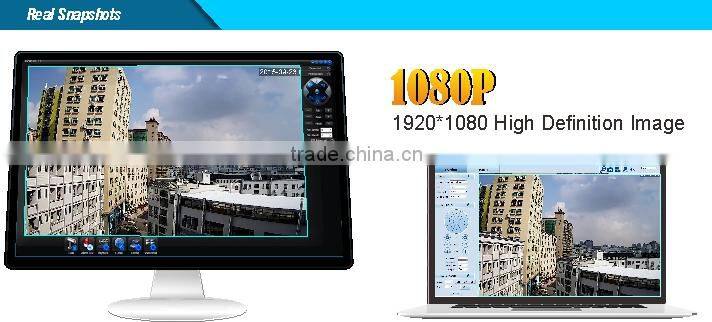

| Video Frame Rate | 1080p@ 25fps (PAL)/1080p@ 30fps(NTSC) | |
| Signal System | PAL/NTSC | |
| Min. Illumination | Color:1.0 lux, BW: 0.5 lux, Color:DSS:0.017 lux, BW DSS:0.0008 lux | |
| Shutter Time | AUTO/MANUAL(1/5060 ~ 1/30,000 sec) | |

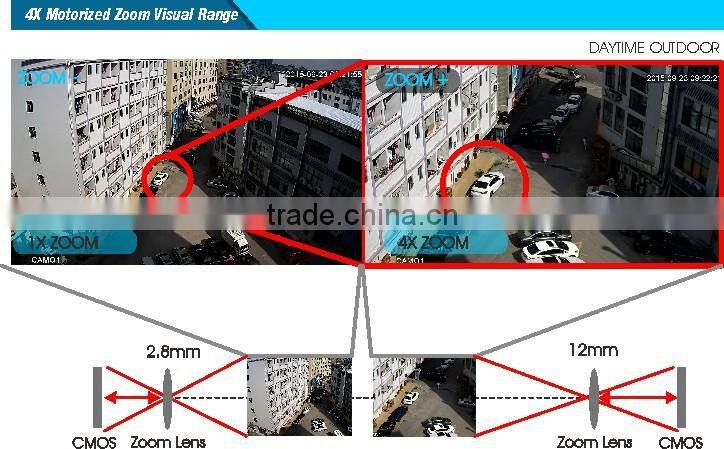

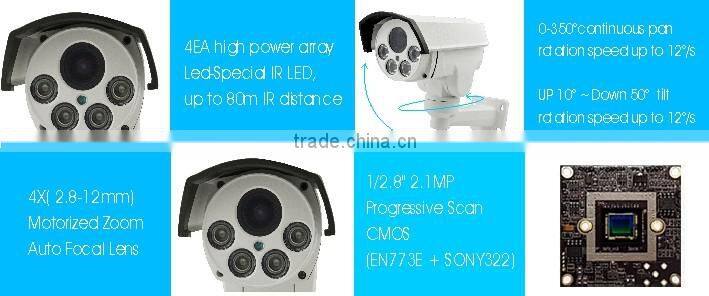

| Lens | 4X( 2.8~12mm) Motorized Zoom Auto Focal Lens | |
| Day& Night | Auto,dual IR cut filter | |
| IR Distance | 80m | |
| S/N Ratio | More than 50Db(AGC off) | |
| Video Output | AHD 1080P & CVBS 960H | |
| Synchronization | Internal Synchronization | |
| Menu | ACE/DWDR | DWDR |
| Shading | Off/On | |
| BLC | Off/BLC | |
| HLC | Off/Hlc | |
| Auto Gain | 0~20 steps | |
| White Balance | Auto/Auto ext/Preset/Manual | |
| Defog | Off/On | |
| Noise Reduction | Off/Low/Middle/High | |
| Private Mask | 16Masks | |
| Motion Detection | Off/on | |
| Language | Chinese/English/German/French/Italian/Spanish/polish/Russian/Portuguese/Turkish | |
| Function | Mirror,H -V -REV,Sharpness,Digital Zoom | |
| PTZ | CPU Type | 32 bit ARM CPU |
| Pan Range | 0° ~350° | |
| Tilt Range | UP 10° ~Down 50° | |
| Manual Control Speed | 12°/s | |
| Preset points | 256 | |
| Tour | 8 | |
| Pattern group | 8 Programmable(Pan/Tilt/Zoom ) | |
| Intelligent power off real time memory | automatic save functions setting, automatic wake up tour function | |
| Manual continued Auto Scan | Non-limited position of manual continued Auto scan | |
| General Parameters | Power Supply | DC12V |
| Operation Temperature | -20℃ - +50℃ | |
| Operation Humidity | Less than 95%RH(no condensation) | |
| Weather Proof Rating | IP66 | |
| Installation | Equipped With Bracket | |

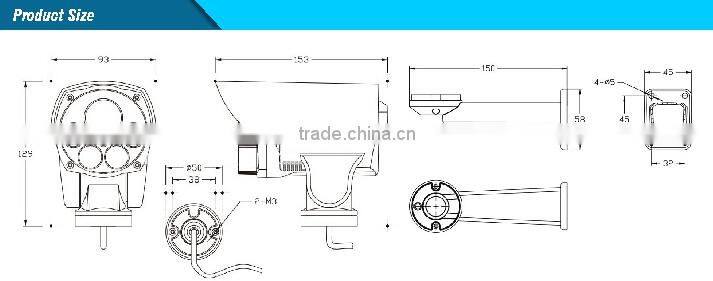

| Dimension | 153*187*93MM | |
| Weight | 1.2kg | |
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen

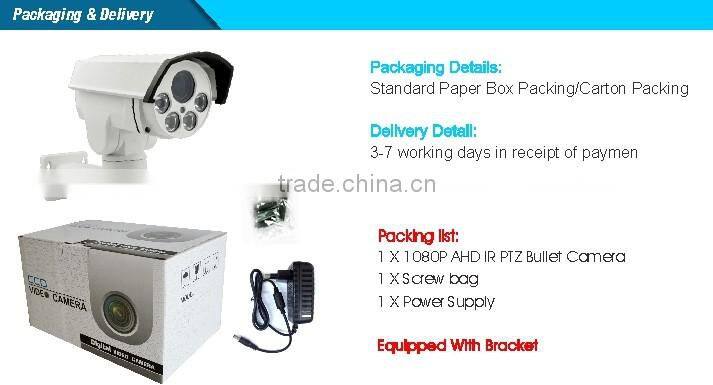

Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
