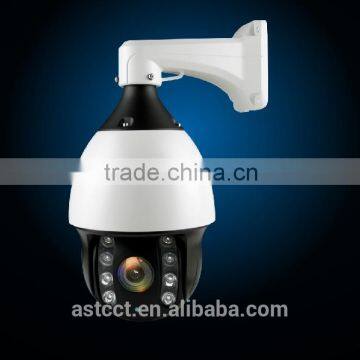

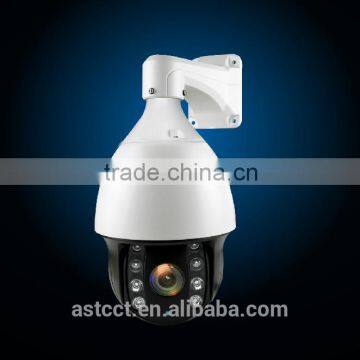

Help CenterManufacturer 36X Full HD 1080P AHD PTZ Camera F=4.6mm~152mm IR 120m OEM Pan/Tilt/Zoom Camera
Related Products
-
New Design 1080P 2MP Full HD AHD Color IR Mini Bullet CCTV CameraUS$ 20 - 28MOQ: 1 Piece -
4X Motorized Zoom 2MP IP Color IR Mini Bullet Housing PTZ Camera Quality ChoiceUS$ 65 - 83MOQ: 1 Piece
-
Fisheye Cctv Camera 2MP Panoramic 360 Degree Camera Bird View System Sony CMOS Sensor AHD Color IR Dome Camera Quality ChoiceUS$ 1 - 38MOQ: 1 Piece
-
AHD 1080P FishEye 2MP 360 Degree Fisheye Panoramic Camera AHD Color IR Dome Cctv Camera With Specifications Quality ChoiceUS$ 25 - 39MOQ: 1 Piece
-
Technical / 1080P Bullet PTZ / 10X Optical Zoom PTZ Bullet Camera / Camera 2mp BulletUS$ 99 - 199MOQ: 1 Piece
Camera
HD AHD 1080P 2.0Mpixes

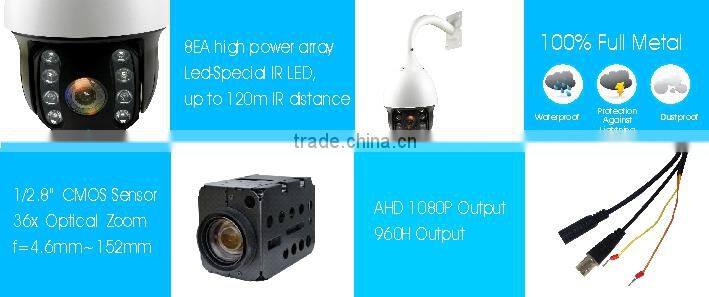

1/2.8" CMOS Sensor, 36x, f=4.6mm~152mm ±5%, D/N( ICR-Cut), DWDR , Color: 0.05lux, B/W:0.005lux.
Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Imported array IR LED, auto adjust zoom according to different distance
3. IR range 120M
4. Highest ESD protection against lightning and power surges.
5. 360 degree continued rotation, manual pan speed 0~240°/S, manual tilt speed 0~120°/S, preset speed 400°/S.
6. AHD 1080P Output
7. 8 tours, DC12V
| Form parameters | ||
| Mode | Name and Description | Full HD 1080P AHD IR High Speed Dome Camera |
| ASHA692-136-20 | ||
| Camera | Image Sensor | 1/2.8" CMOS |
| Effective Pixels | 2.0 Mpixes | |
| Horizontal Resolution | 1080P | |
| Min. Illumination | 0.05Lux :Color/0.005 Lux:B/W | |
| Zoom | 36X , f=4.6mm~152mm, D/N( ICR-Cut) | |
| Day/Night | AUTO/COLOR/BW | |
| SNR | ≥50dB(AGC OFF) | |
| WDR | DWDR | |
| White Balance | Auto/Indoor/Outdoor/Manual | |
| IR | Luminary | Array Φ20 8pcs |
| Night vision distance | 120M | |
| Lamp control | Auto, Manual, by Zoom | |
| Dome Features | CPU Type | 32 bit ARM CPU |
| Address | 0~255(soft address and hard address) | |
| Pan Range | 360° continued rotation | |
| Tilt Range | 0~90°(Auto Flip) | |
| Manual pan speed | 0~240º/S | |
| Manual tilt speed | 0~120°/S | |
| Preset speed | 400°/S | |
| Actual preset Accuracy | ±0.10° | |
| Preset points | 255 | |
| Operation OSD language | Chinese /English | |
| OSD Display | dome menu & camera menu adjustment | |
| Home position | Return to preset/scan/pattern/ if there is no command in the specified period. |
|
| Operation recall | recall operation zone | |
| Tour | 8 | |
| Communication Protocol | AHD 1080P Output | |
| Intelligent Three dimensional Scan |
Auto Pan & Tilt &Zoom /Manual | |
| Pattern group | 8 Programmable(Pan/Tilt/Zoom ) | |
| Speed adaption | Speed slows down automatically when zoom in | |
| Intelligent power off real time memory |
automatic save functions setting ,automatic wake up tour function | |
| Camera Menu operation | support the operation of camera set up | |
| Manual continued Auto Scan |
Non-limited position of manual continued Auto scan | |
| General | Work temperature | External–35℃~55℃ |
| Work Humidity | 0%~90% (Non condensing) | |
| Power | DC12V±10%; 4A | |
| Consumption | 50W | |
| Communication | RS-485 | |
| Video Output | HD-AHD | |
| Connection | BNC | |
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small
order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thank for your interest.
