Home > Products > Keyboard > 8 inch LCD 3D IP PTZ Keyboard Controller Work with RS485 Speed Dome Controller Quality Choice
8 inch LCD 3D IP PTZ Keyboard Controller Work with RS485 Speed Dome Controller Quality Choice
- 1500 Piece / Pieces per Month
- Shenzhen
- 7 inch TFT Monitor DIGITAL Wireless Farm Cctv Systems
- 7 inch TFT Monitor DIGITAL Wireless New Backup Camera Kit with 2.4GHz digital signal
- 7 inch TFT Monitor Digital Reversing Camera System with 2.4GHz digital signal
- 7 inch TFT Monitor Wireless Back Up Systems with 2.4GHz digital signal
- Car Camera Wireless Transmitter System For Bus
- 7inch digital 2.4g wireless surveillance camera system For Bus
Product Details
Place of Origin: | Guangdong, China | Brand Name: | AST | Model Number: | ASKBO8 |
Type: | Other, IP | Style: | Other, keyboard controller | Sensor: | Other, LCD |
Technology: | NetWork | Special Features: | Waterproof / Weatherproof |
Product Description
Camera:

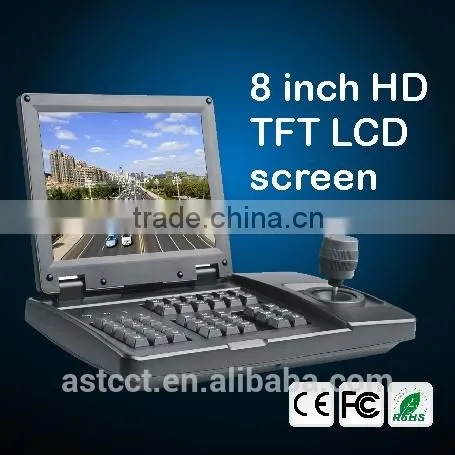

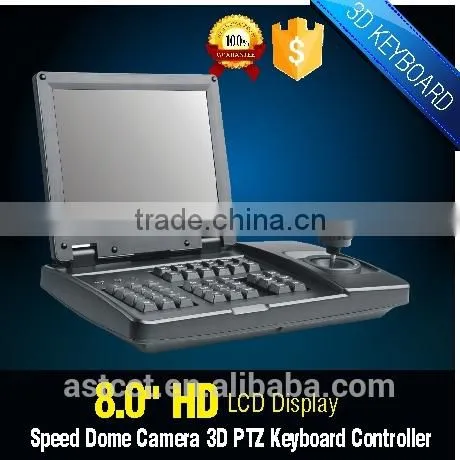

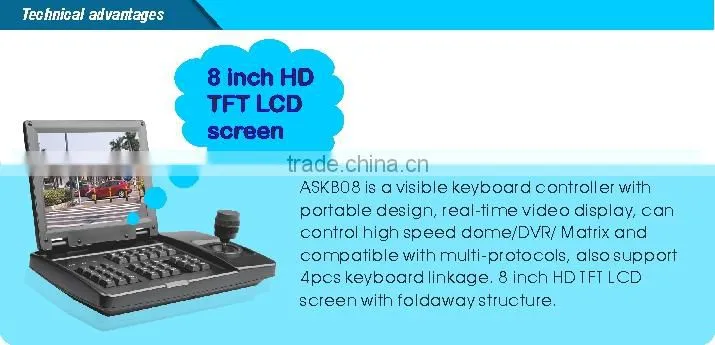

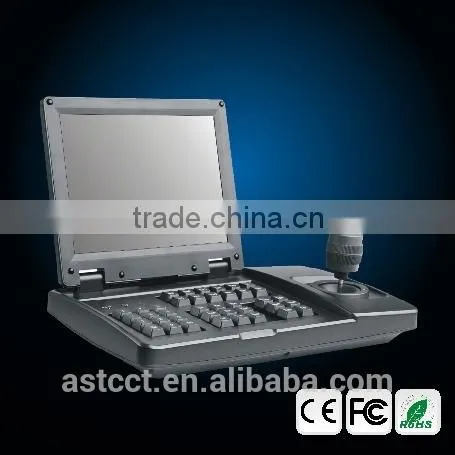

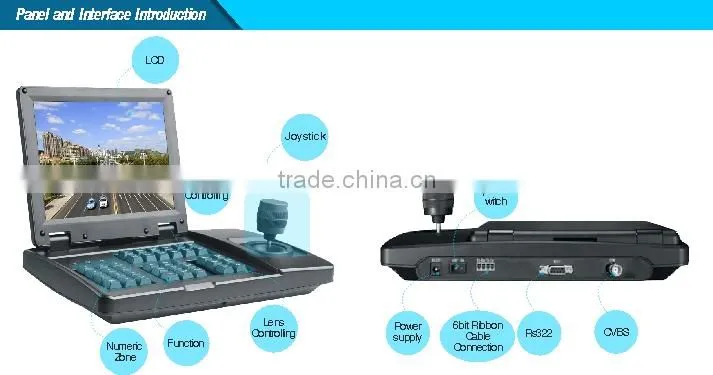

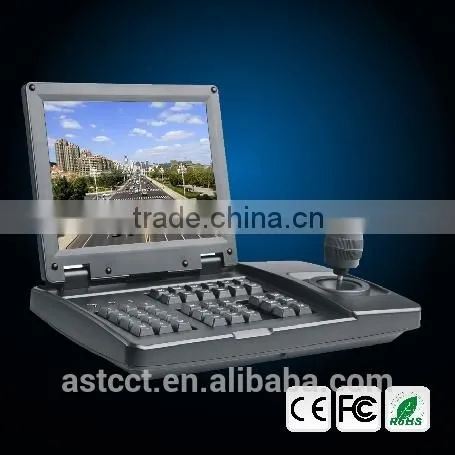

ASKB08 is a visible keyboard controller with portable design, real-time video display, can control high speed dome/DVR/ Matrix and compatible with multi-protocols, also support 4pcs keyboard linkage. 8 inch HD TFT LCD screen with foldaway structure.
Dome Features:
1.Protable Foldable HD visual Keyboard ,Show the camera pictur in the real time
2. Control the high speed dome
3.DVR,Matrix,By 3-Axis Joystick, which is compatible with Multi protocols,
4. Support the 4 pcs keyboard together in sthe same time,
5. 8 Inch High definition TFT -LCD Screen Can show the image that returns from the front-end in real time
6. Image is adjustable automatically, No Manual setting
7. OSD edible menu in Chinese and English can set the kinds of Protocols
8. Tt is easy to operate. Support ABS,VGA signal input 800*600 resolution.
9. control high speed dome from different factories and mainstream DVR and Pelco matrix
10.. Independet interface Panel and expansively, which can meet the requirement of markets
11.Extra-Low consumption, 1W for standby mode,
12. foldable structure design can show the best view screen
Form parameters | |
Model No. | ASKB08 |
LCD screen | 8" TFT-LCD |
View angle | 0°~135° |
Video input | Complex video(NTSC/PAL),VGA |
communication | RS232,RS485,RS422,USB2.0 |
Distance | Max. transmitting distance 1200m |
Baud rate | 2400bps,4800bps,9600bps,19200bps |
Protocol | PELCO P/D, VISCA,DAHUA,HAIKAN |
Power supply | DC( 9V~12V)±10% |
Electric current | 350mA |
Battery | Ni-MH 700mAh |
Power consumption | 4.2W |
Standby consumption | 1W |
Environment temperature | -20℃ ~ +50℃ |
Humidity | 0~95%(Non-condensation) |

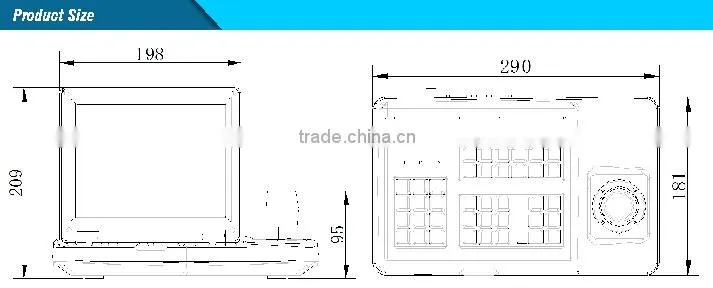

Dimension | 290(L)*181(W)*95(H)mm |
Net weight | 1.6Kg |
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small
order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thank for your interest.
