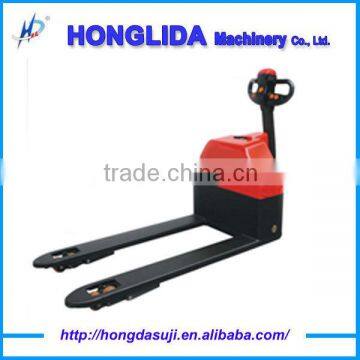

Help CenterMini Electric Forklift
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HongDa
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Shandong, China
Brand Name
HongDa
Model Number
DC1500
Type
Powered Pallet Truck
Power Souce
AC Motor
Rated Loading Capacity
1500kg
Max. Lifting Height
205mm
Min. Lifting Height
85mm
Fork Length
1150mm
Fork Width
160mm
Overall Dimensions
1700X700X1120mm
After-sales Service Provided
Overseas service center available
Product Description
| Feature | ||||
| Model | ||||
| Conflguration No | 170G | |||
| Load capacity | kg | 1500 | ||
| Load center | mm | 600 | ||
| wheel base | mm | 1380 | ||
| opreating type | Walkie | |||
| Wheels | ||||
| Wheels type | PU | |||
| Wheels quantity Driving Wheel/Balance wheel/Bearing wheel | 1/2/4 | |||
| Driving whlle size | mm | Φ252*67 | ||
| Bearing whlle size | mm | Φ80*70 | ||
| Balance whlle size | mm | Φ120*42 | ||
| Dimension | ||||
| Min.fork lowered height | mm | 85 | ||
| Max.fork lifting height | mm | 205 | ||
| Max.lifting height | mm | 120 | ||
| Overall fork width | mm | 680 | ||
| Inside width between forks | mm | 360 | ||
| Fork length | mm | 1150 | ||
| Fork width | mm | 160 | ||
| Fork thickness | mm | 50 | ||
| Overall length | mm | 1700 | ||
| Overall width | mm | 700 | ||
| Overall height(with handle) | mm | 1120 | ||
| Overall height(without handle) | mm | 700 | ||
| Min.Turning radius | mm | 1547 | ||
| Min.Aisle width for pallets 800*1200 | mm | 1920 | ||
| Min.Aisle width for pallets 1000*2000 | mm | 1953 | ||
| Performance | ||||
| Travel speed,laden/unladen | km/h | 3/3.5 | ||
| Lift speed,laden/unladen | mm/s | 56/60 | ||
| Lowering speed,laden/unladen | mm/s | 57/59 | ||
| Gradeability,laden/unladen | % | 5/7 | ||
| Electrical configuration | ||||
| Drive motor | kw | 0.75 | ||
| Lift motor | kw | 0.84 | ||
| Battery voltage/capacity | kw | 24/100 | ||
| Brake | V/AH | Electromagnetic /Regenerative | ||
| Controller | USA CURTIS | |||
| Weight | ||||
| Battery weight | KG | 48 | ||
| Service weight with battery | KG | 275 | ||
