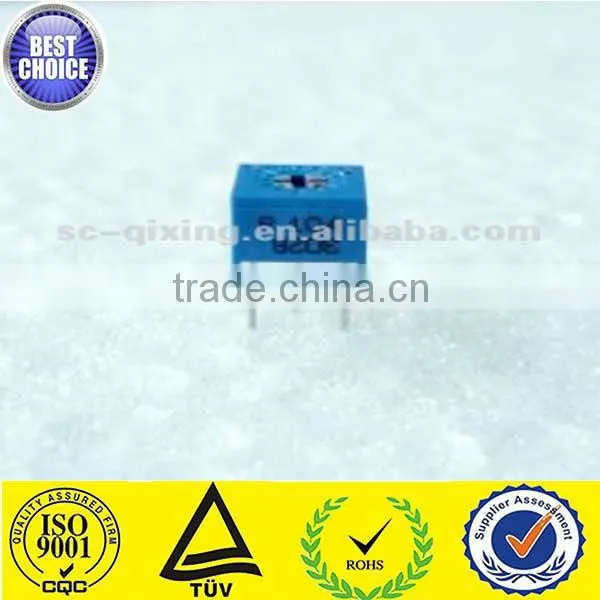

3362 BONENS 50K Ohm Trimpot Trimming Potentiometer ,single-turn,500V,0.25w,3362

3362 BONENS 50K Ohm Trimpot Trimming Potentiometer ,single-turn,500V,0.25w,3362 thumbnail-1
3362 BONENS 50K Ohm Trimpot Trimming Potentiometer ,single-turn,500V,0.25w,3362 photo-1
US$ 0.06 - 0.15 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
BONENS
Model Number:
3362R
Contact Supplier Request Quote Chat Now
Sichuan Qixing Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name BONENS
Model Number 3362R
Type Trimming Potentiometer
Technology Other, GLASS GLAZE
Resistance 10Ω~5MΩ
Resistance Tolerance ±10%
Rated Power 0.25W
Max. Operating Voltage 500V
Operating Temperature -55℃~+125℃

Specifications

1,3362 Trimmer Potentiometer,
2.variable resistance
3.Brand:BONENS
4.RoHS ISO compliant
5.OEM, design&devel

Electrical Characteristics

Range of nominal resistance: 10Ω~5MΩ

Resistance tolerance: ±10%

Terminal resistance: ≤±1%R or 2Ω

Contact resistance variation (CRV): ≤±1%R or 3Ω

Insulation resistance: ≥ 1GΩ (100V AC)

Withstand voltage: 500V (DC or AC peak value)

Effective electrical travel≥200°

Environment Characteristics

Rated power: 0.25W (70°C, 300V max)

Temperature range: -55°C~+125°C

TCR: ±250×10-6/°C

Collision (390m/S2, 4000 times): ΔR≤±1%R

Vibration (10-500HZ, 0.75mm, 6h): ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS

Temperature variation (-55°C/30min, +125°C/30min, 5 cycles): ΔR≤±2%R, ΔUab/Uac≤±2%R

Climate category (IEC68-2-2): ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Electrical endurance (70°C, 0.25W, 1000h): ΔR≤± (5%R+0.1Ω), CRV≤±3%R or 5Ω

Mechanical endurance (200 cycles): ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω

Steady damp heat (IEC68-2-3, Ca, 96h): ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Physical Characteristics

Total mechanical travel: 260°±10°

Starting torque: ≤20mN.m

Stopper torque: ≥50mN.m

Standard package: 50 pcs /tube
