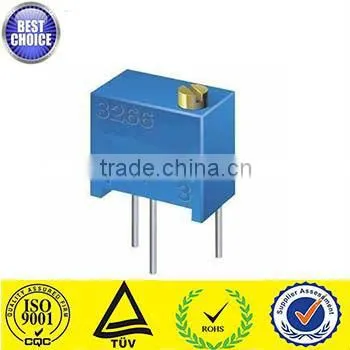

Trimmer Potentiometer,glass Glaze,multi-turns,3266W

Name: Trimmer Potentiometer,glass Glaze,multi-turns,3266W
Brand: bonens
SKU: 101982561
Availability: InStock

Sichuan Qixing Electronics Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

bonens

Model Number:

3266W

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name bonens

Model Number 3266W

Type Trimming Potentiometer

Technology Other, glass glaze

Resistance 10Ω~5M

Resistance Tolerance ±10%

Rated Power 0.25W

Max. Operating Voltage 600V

Operating Temperature -55℃~+125℃

Specifications

1.1.10ohm~5M,10%
2.600V,0.25W
3.total mechanical travel:12 laps
4.ROHS,good quanlity
5.Welcomed the trial order

Electrical Characteristics	Range of nominal resistance	10Ω~5MΩ
	Resistance tolerance	±10%
	Terminal resistance	≤±1%R or 2Ω
	Contact resistance variation (CRV)	≤±1%R or 3Ω
	Insulation resistance	≥ 1GΩ (100V AC)
	Withstand voltage	600V (DC or AC peak value)
	Effective electrical travel	≥70% of mechanical trave

Environment Characteristics	Rated power	0.25W ( 300V max)
	Temperature range	-55°C~+125°C
	TCR	±250×10-6/°C
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R
	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω),Insulation Resistance ≥100MΩ
	Electrical endurance (0.25W, 1000h)	ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
	Mechanical endurance (200 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Physical Characteristics	Total mechanical travel	22 ± 2lap
	Starting torque	≤25mN.m
	Standard package	50 pcs /tube
