PU Foam Sandwich Panel pu foam laminated fabric Sandwich panels manufacturers
Main components of chiller room, cold storage room, cold storage, cold room
Cold room wall and roof :
Cold room temperature |
Thickness of wall and roof panel |
5~15 degree |
75mm |
-15~5 degree |
100mm |
-15~-20 degree |
120mm |
-20~-30degree |
150mm |
Lower than -30degree |
200mm |

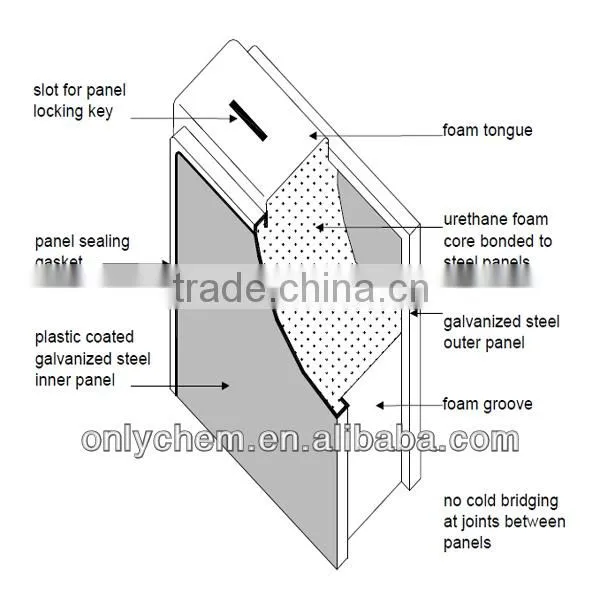

Components: Polyurethane sheet, and two surface with white pre-paint galvanized steel or stainless steel. (Sandwich panel)
Fire resistance stage: If customer need, we can provide B2 stage panel, fire extinguished after removing fire 3-5 seconds. The cost higher than normal kind.
The density of PU sheet is 38-42kg/m^3.
Cold room panel connected by cam lock.
Several different solutions for cold room cold storage, cold storage room, chiller room:
- Concrete: three layers 50mm XPS sheet put on floor Criss-cross,then cover 10-15cm concrete. Strong enough to bear forklift.

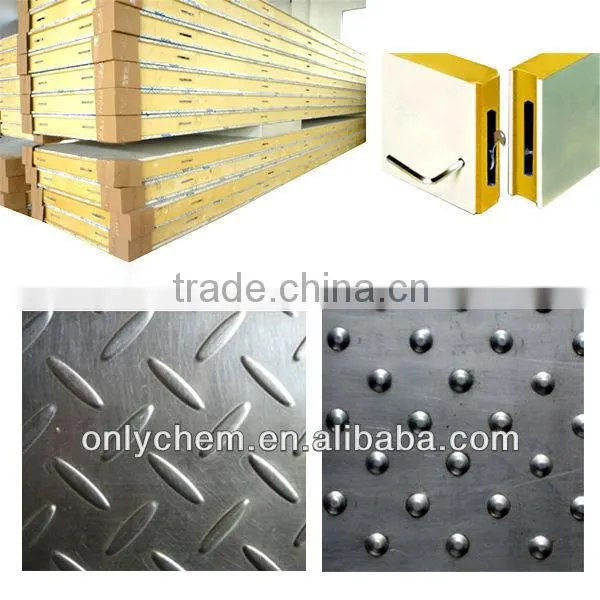

- Anti-sliding floor: put 1.5-3mm aluminum anti-sliding sheet on cold room panel. Can use small tralley in this cold room.
- Same as wall and roof panel, convenient installation.
Cold room door for cold room :
Hinged door: Full buried hinged door (Swing door, normal door) half buried hinged door
(Normal size is 0.8*1.8m, this is the size of door hole.)
Sliding door: manual door, auto electric door
Light type (Normal size is 1.5*2.0m, )
Middle type (Generally, large than 1.5*2.0m use this kind.)
Heavy type (Generally, large than 2.0*2.0m use this kind.)
Material: 100mm or 150mm PU panel, two surface is 0.5mm galvanized steel or 0.8mm stainless steel. If low temperature cold room need have heater wire in doors.
Cold room refrigeration system we use the best famous brand :
Customer visit our factory and deep talk
building a cold storage room, cold room
Onlychem Technology Co.,Ltd. is a new company which is just founded in 2009, but we are not a newcomer to refrigeration industry. We have more than 10 years working experience in refrigeration field. We are young, energetic, innovative and confident?
We offer a complete turnkey service or if your requirements are limited, we offer individual service designed around your requirement, such as panel design and installation.
To make a fast and detailed quotation for you,we would like you to answer some questions about this product as following:
1.What’s the products do you want to store in this cold room?
2.Could you provide the detailed inside dimension of this cold room?(m)
3.What’s the required temperature inside the cold room(°C)?
4.What’s the voltage/phase/frequency in your place?
Our clients
Contact with our professional saleman, offer will send you sooner.
