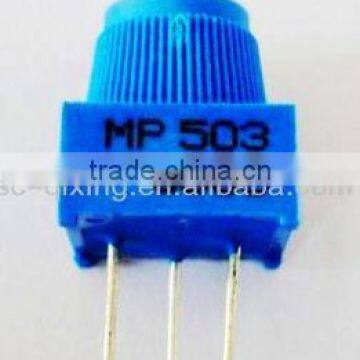

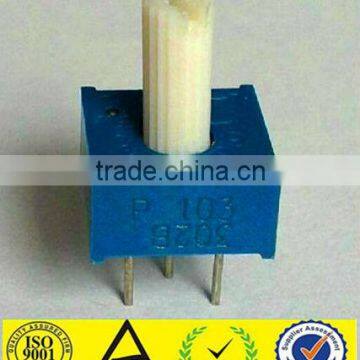

Volume Control 3386MP Potentiometer 0.5W Single Turn Trimmer Potentiometer

Name: Volume Control 3386MP Potentiometer 0.5W Single Turn Trimmer Potentiometer
Brand: BONENS
SKU: 101979805
Availability: InStock

US$ 0.05 - 0.09 MOQ: 1 Piece

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

BONENS

Model Number:

3386MP

Sichuan Qixing Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name BONENS

Model Number 3386MP

Type Other, Trimming Potentiometer, X

Technology Cermet

Resistance 10~5M

Resistance Tolerance ±10%

Rated Power 0.5W

Max. Operating Voltage 250V

Operating Temperature -55 ~ +12

Specifications

1. 3386 Cermet Trimmer Potentiometer,Single-turn
2. RoHS ISO compliant
3. free sample fast delivery
4. welcome trial order

1. 8mm Long knob potentiometers, trimming, 0.5W

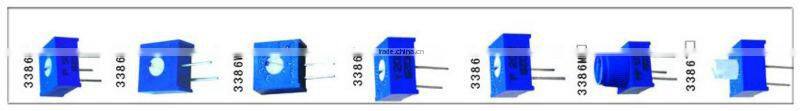

volume control 3386MP potentiometer 0.5W Single turn trimmer potentiometer

2. Specifications:

Electrical Characteristics	Range of nominal resistance	10Ω~5MΩ
	Resistance tolerance	±10%
	Terminal resistance	≤±1%R or 2Ω
	Contact resistance variation (CRV)	≤±1%R or 3Ω
	Insulation resistance	≥ 1GΩ (100V AC)
	Withstand voltage	250V (DC or AC peak value)
	Effective electrical travel	≥200°

Environment Characteristics	Rated power	0.5W ( 300V max)
	Temperature range	-55°C~+125°C
	TCR	±250×10-6/°C
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R
	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω), Insulation Resistance ≥100MΩ
	Electrical endurance (0.5W, 1000h)	ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
	Mechanical endurance (200 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Physical Characteristics	Total mechanical travel	280°±10°
	Starting torque	≤20mN.m
	Stopper torque	≤50mN.m
	Standard package	50 pcs /tube
