| 100ohm 50ohm RF power resistor 250W 400W 600W 800W 1000W flange resistor | |||

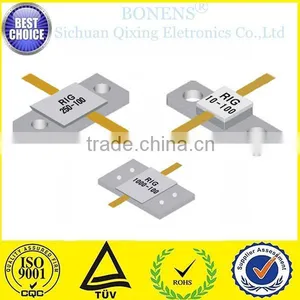

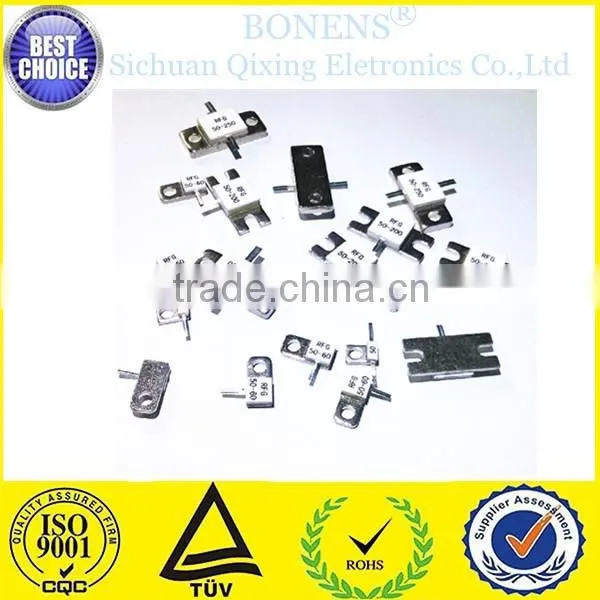

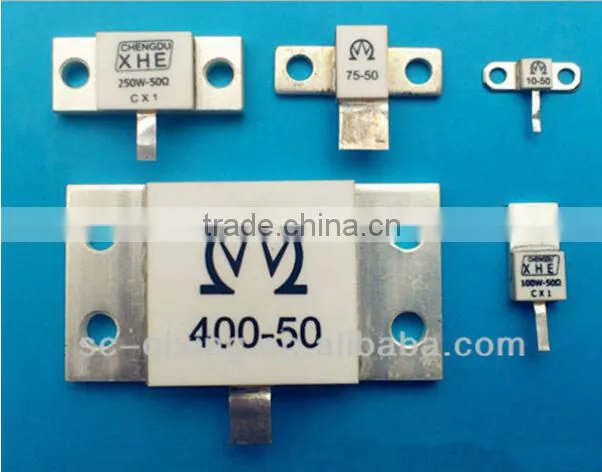

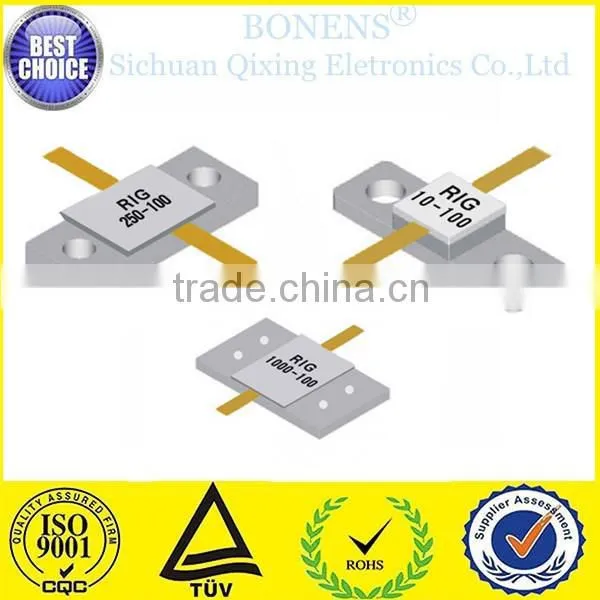

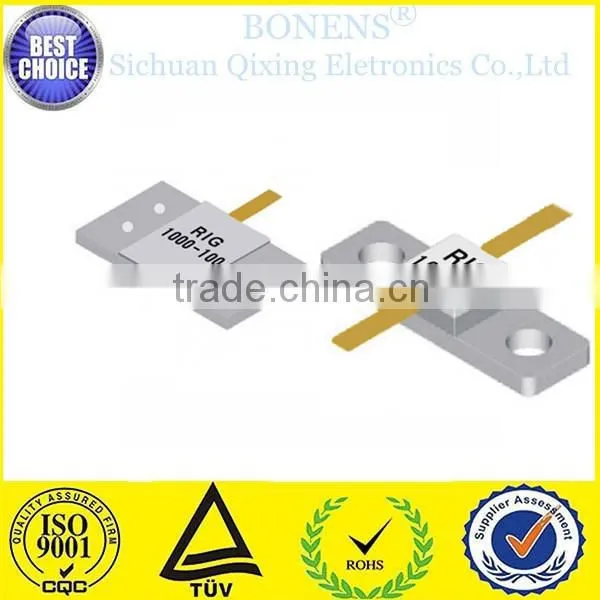

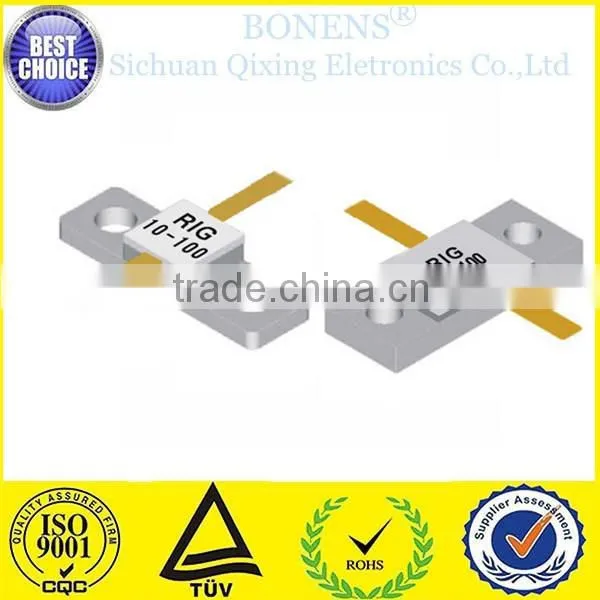

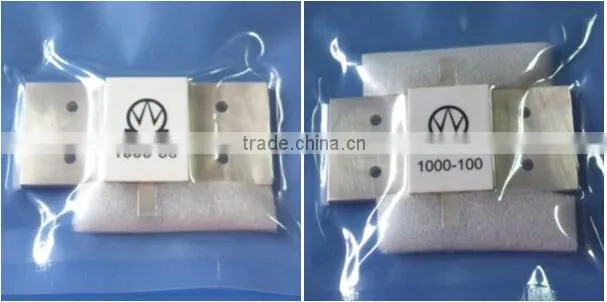

| 1.Rf resistor pictures: | |||
| |||
|
| |||
| |||
| 2.Rf specifications: | |||
| Electrical Characteristics | |||
| Range of nominal resistance | 1 ~500Ω | ||
| Resistance tolerance | ±5% | ||
| Frequency range | 0~2GHz | ||
| Standing wave ratio | 1.2~1.3 | ||
| Insulation resistance | ≥ 1GΩ | ||
| Withstand voltage | 500V/1 mm (Substrate thickness) | ||
| Environment Characteristics | |||
| Rated power | 1~1000W (70°C) | ||
| Temperature range | -55°C~+165°C | ||
| TCR | ±300×10-6/°C | ||
| Temperature shock (-55°C/+125°C, 3 times) | ΔR≤±5%R | ||
| Moisture proof (GJB306A-96-Method106) | ΔR≤±5%R | ||
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±3%R, No mechanical damage | ||
| Test at low temperature (-55°C, 24h) | ΔR≤±5%R | ||
| Load life (96) | ΔR≤±5% | ||
| Collision | ΔR≤±3%R | ||
| Physical Characteristics | |||
| Terminal strength(10N,5S) | No loose and fall off | ||
| Solderability(240℃,3s) | Tin layer covering area of 95% | ||

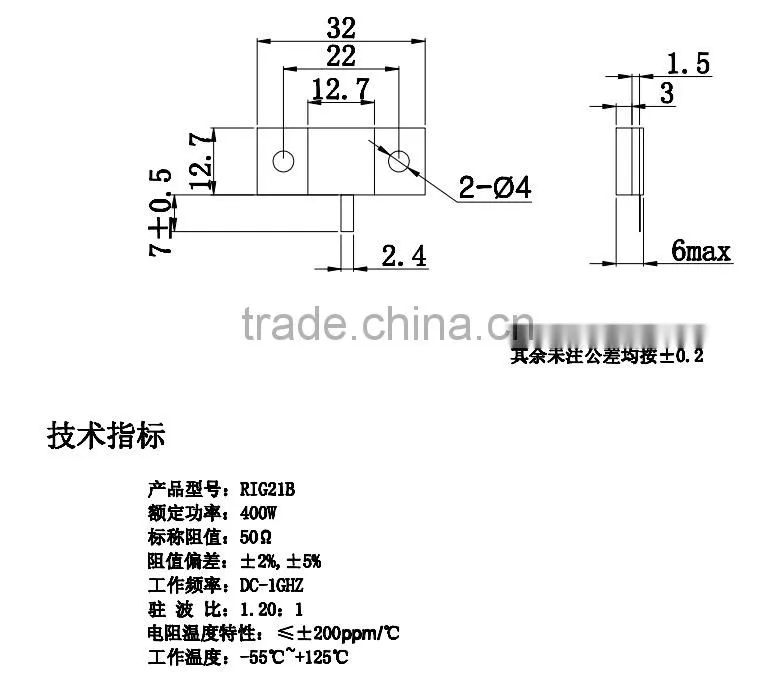

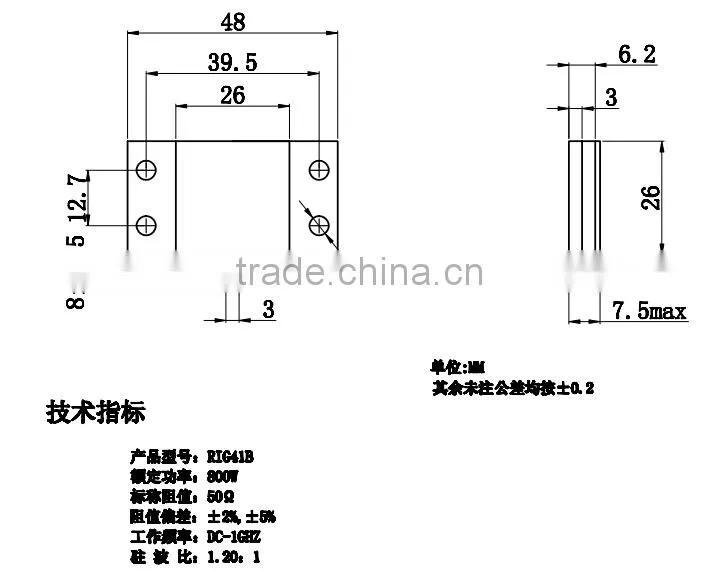

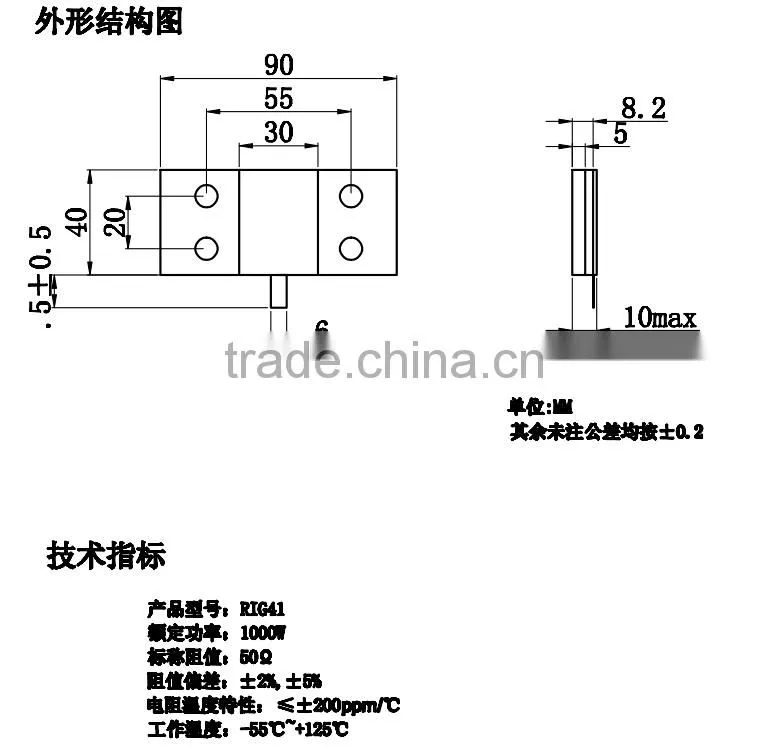

| 3.Rf resistor dimensions: | |||
| |||
| |||
| | |||
|

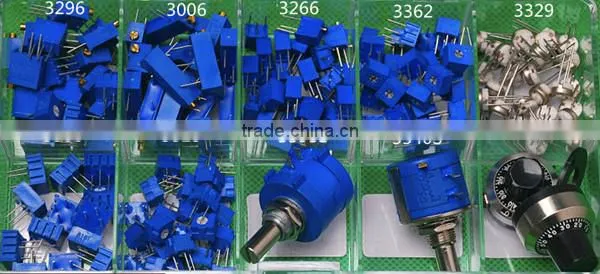

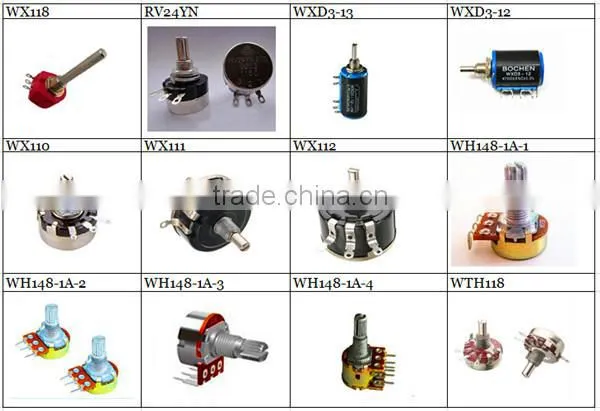

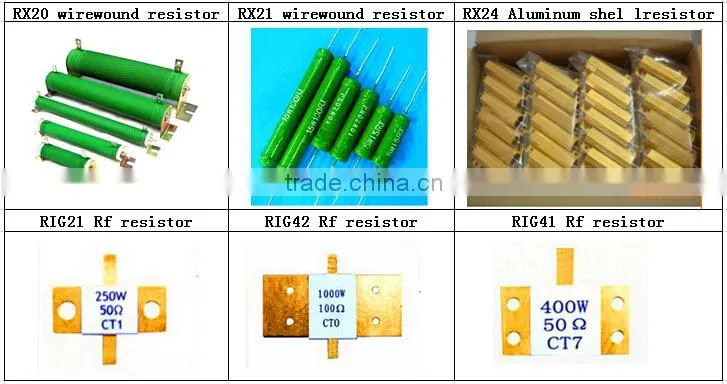

4.Some our main products:
| |||
|
| |||
|

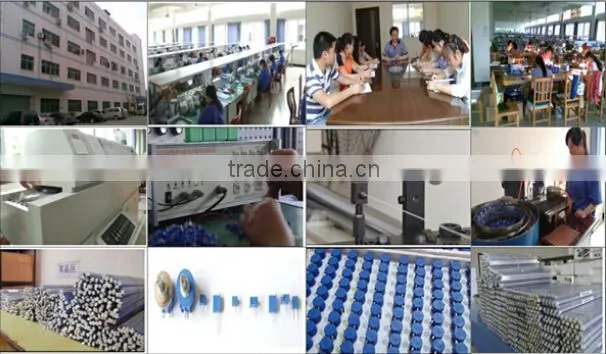

5.Our factory and Team:
| |||
| |||
| |||
| |||
|
6.Mainly shipping ways:
| |||
|
7.Mainly payment ways:
| |||
|
8.performance characteristics: (1) High power (2) Good heat dissipation (3) Wide frequency (4) Structure of the general | |||
|
9.Directions for use: (1) Products with the cooling plate must be installed on other radiators, radiator area of not less than 10 cm squared / 1 w. (2)Heating panel and radiator must combine closely, it is suggested that with cooling silicon greas When the product is working, should add the air-filled or circulating water cooling. (4) Pulse power for 20% of the rated power. (5) After receiving the product, customers should be used within a year. 10.About sample: 1.Could provide sample. 2.Samples time: Need 3-5 days to prepare the samples after payment. 3.Samples Shipping term:UPS,FEDEX,DHL,TNT,EMS. | |||
