Help Center1206 Chip Resistor
Related Products
Specifications
1.2w smd chip resistor2,1ohm--500ohms
3,RoHS compliant
4,RUV certification
5,free sample and high quality

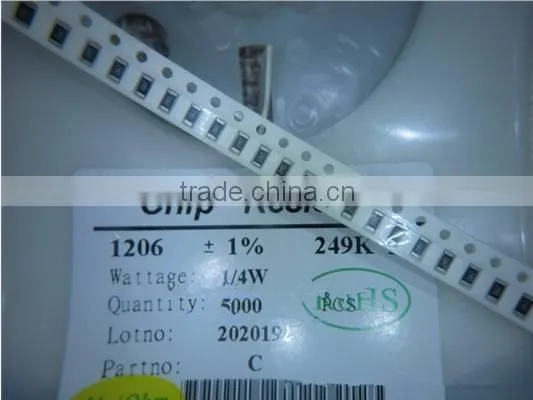

◊ Details of Pictures:
◊ Mechanical Parameter:
Electrical Characteristics
Range of nominal resistance: 1 ~500Ω
Frequency range: 0~2GHz
Insulation resistance: ≥ 1GΩ
Resistance tolerance: ±5%
Standing wave ratio: 1.2~1.3
Withstand voltage: 500V/1 mm (Substrate thickness)
Environment Characteristics
Rated power: 1~1000W (70°C)
TCR: ±300×10-6/°C
Moisture proof (GJB306A-96-Method106): ΔR≤±5%R
Test at low temperature (-55°C, 24h): ΔR≤±5%R
Collision: ΔR≤±3%R
Temperature range: -55°C~+165°C
Temperature shock (-55°C/+125°C, 3 times): ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h): ΔR≤±3%R, No mechanical damage
Load life (96): ΔR≤±5%
◊ Work Flow
◊ Packaging
◊ Certificate
For more information, pls don't hesitate to contact us!
