3296P Trimming Potentiometer 0.5W Linear Precision Potentiometers

3296P Trimming Potentiometer 0.5W Linear Precision Potentiometers thumbnail-1
3296P Trimming Potentiometer 0.5W Linear Precision Potentiometers photo-1
US$ 0.055 - 0.09 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
BONENS
Model Number:
3296P
Contact Supplier Request Quote Chat Now
Sichuan Qixing Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangdong ports
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name BONENS
Model Number 3296P
Type Trimming Potentiometer
Technology Cermet
Resistance 10 Ω~5M Ω
Resistance Tolerance ±10%
Rated Power 0.5W
Max. Operating Voltage 640V
Operating Temperature -55℃~+125℃

Specifications

1,RoHS ISO compliant
2,multi-turn cermet trimmer
3,free sample fast delivery from our factory
4.trial order welcomed

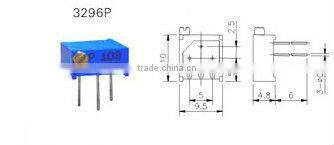

3296P trimming potentiometer 0.5W linear precision potentiometers3296P trimming potentiometer 0.5W linear precision potentiometers

Electrical Characteristics


Range of nominal resistance: 10Ω~5MΩ

Resistance tolerance: ±10%

Terminal resistance: ≤±1%R or 2Ω

Contact resistance variation (CRV): ≤±1%R or 3Ω

Insulation resistance: ≥ 1GΩ (100V AC)

Withstand voltage: 640V (DC or AC peak value)

Effective electrical travel≥70% of mechanical travel



Environment Characteristics


Rated power: 0.5W ( 300V max)

Temperature range: -55°C~+125°C

TCR: ±250×10-6/°C

Collision (390m/S2, 4000 times): ΔR≤±1%R

Vibration (10-500HZ, 0.75mm, 6h): ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS

Temperature variation (-55°C/30min, +125°C/30min, 5 cycles): ΔR≤±2%R, ΔUab/Uac≤±2%R

Climate category (IEC68-2-2): ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Electrical endurance (0.5W, 1000h): ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω

Mechanical endurance (200 cycles): ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω

Steady damp heat (IEC68-2-3, Ca, 96h): ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ



Physical Characteristics



Total mechanical travel: 28±2  laps

Starting torque: ≤20mN.m

Stopper torque:≥50mN.m

Standard package: 50 pcs /tube





QQ: 865125858

Skype:

ICQ: 622162859

 3296P trimming potentiometer 0.5W linear precision potentiometers3296P trimming potentiometer 0.5W linear precision potentiometers3296P trimming potentiometer 0.5W linear precision potentiometers
