Home > Products > Condenser/Condensor > evaporative condenser
evaporative condenser
- 5000 Set / Sets per Month
- shanghai ningbo qingdao
- T/T Credit Card
Product Details
| Place of Origin: | Shandong, China | Brand Name: | ORGREN | Model Number: | ORG-01V |
| Type: | Condenser | Application: | Refrigeration Parts | Certification: | CE |
Product Description

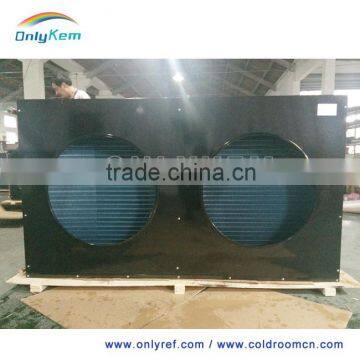

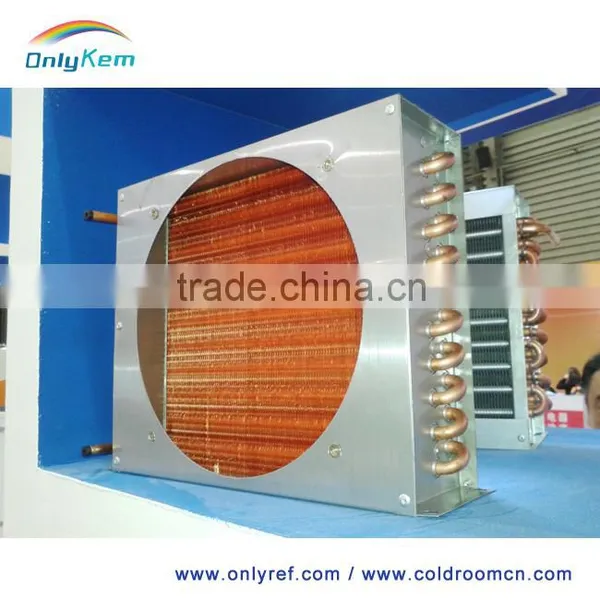

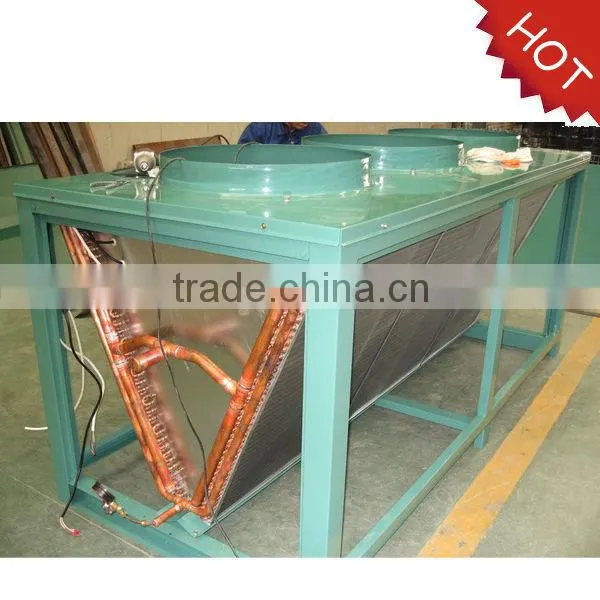

evaporative condenser
air cooled condenser
with CE
Anti-corrosion case
EC fan
Over 2.6Mpa leak test
1. Installing of condenser is not confined by area ,it only needs small area
2. Entire installation,beautiful outlook design,protect well,can avoid collision damage
3. Condensers have double arrange,avoid heat loss during the air transform
4. The units have good protect system inside,good for reducing maintance
5. Use axial fan motor,low noise,power lose and large in air flow
6. Large power of compressors driver quantity of cold
7. Well construction,convenient packing and transport
We can design bigger one against your request. we will supply our drawing for confirmation
Condenser parameter:
Model |
Area |
Row*line | Motor | Nozzle | Size | GW | |||
Dia. | Air-volume | power | in | out | L*W*H | ||||
M2 | n | Φmm | M3/h | W | Φmm | Φmm | mm | kg | |
FN1-2B | 2.1 | 2*4 | 200 | 500 | 16 | 10 | 10 | 340*120*255 | 2.5 |
FN1-3B | 3.4 | 3*4 | 200 | 500 | 16 | 10 | 10 | 340*120*255 | 3 |
FN1-4B | 4.0 | 3*5 | 250 | 800 | 40 | 10 | 10 | 400*130*300 | 3.5 |
FN1-6B | 6.0 | 3*7 | 300 | 1250 | 60 | 10 | 10 | 410*155*360 | 4 |
FN1-8B | 8 | 4*7 | 300 | 1250 | 60 | 10 | 10 | 410*195*360 | 6 |
FN1-12B | 12 | 4*8 | 350 | 1800 | 90 | 16 | 12 | 410*220*440 | 9 |
FN1-15B | 15 | 4*9 | 350 | 1800 | 90 | 16 | 12 | 470*220*500 | 11 |
FN1-18B | 18 | 4*10 | 400 | 3000 | 120 | 16 | 12 | 470*220*550 | 12 |
FN1-22B | 22 | 4*8 | 400 | 2*1800 | 2*90 | 19 | 16 | 570*230*550 | 14 |
FN2-28B | 28 | 4*8 | 350 | 2*1800 | 2*90 | 19 | 16 | 650*270*510 | 16 |
FN2-33B | 33 | 4*9 | 400 | 2*3000 | 2*120 | 19 | 16 | 880*230*600 | 22 |
FN2-41B | 41 | 4*12 | 400 | 2*3000 | 2*120 | 19 | 16 | 920*220*540 | 17 |
FN2-49B | 49 | 4*14 | 400 | 2*3000 | 2*120 | 19 | 16 | 1160*230*660 | 25 |
FN2-55B | 55 | 4*14 | 400 | 2*3000 | 2*120 | 22 | 19 | 1010*230*660 | 26 |
FN2-60B | 60 | 4*14 | 400 | 2*3000 | 2*120 | 22 | 29 | 1010*270*660 | 33 |
FN4-70B | 70 | 4*18 | 350 | 4*1800 | 4*90 | 22 | 19 | 1140*230*850 | 33 |
FN4-80B | 80 | 4*21 | 350 | 4*1800 | 4*90 | 25 | 19 | 1140*230*950 | 40 |
FN4-100B | 100 | 4*24 | 400 | 4*3000 | 4*120 | 30 | 22 | 1140*230*1150 | 49 |
FN4-120B | 120 | 4*24 | 400 | 4*3000 | 4*120 | 30 | 22 | 1140*250*1160 | 53 |
FN4-140B | 140 | 5*24 | 450 | 4*4500 | 4*250 | 30 | 22 | 1170*250*1260 | 66 |
FN4-150B | 150 | 5*24 | 450 | 4*4500 | 4*250 | 30 | 22 | 1270*270*1260 | 74 |
FN4-180B | 180 | 6*24 | 500 | 4*6000 | 4*250 | 30 | 22 | 1470*300*1260 | 87 |
