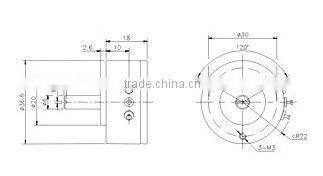

BONENS 500V 1W WX36 Precision Single-turn Wire-wound Potentiometer

Name: BONENS 500V 1W WX36 Precision Single-turn Wire-wound Potentiometer
Brand: Bonens
SKU: 101976591
Availability: InStock

Negotiable MOQ: 100 Pints (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

Bonens

Model Number:

WX36 potentiometer

Sichuan Qixing Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name Bonens

Model Number WX36 potentiometer

Type Rotary Potentiometer

Technology Metal Alloy

Resistance 100Ω~20KΩ

Resistance Tolerance ±2%, ±5%

Rated Power 1W

Max. Operating Voltage 500V

Operating Temperature -55°C~+125°C

Specifications

1,2WX36 potentiometer
2,100 ohm~20k ohm
3.reasonable price
4,RoHS compliant
5,ISO9001 certification

Electrical Characteristics	Range of nominal resistance	100Ω~20KΩ
	Resistance tolerance	±2%, ±5%


	Terminal resistance	≤±0.5%R or 10Ω

	Peak Noise	≤100Ω

	Linear accurancy	±0.3%
	Gang error	±0.6%,
	Insulation resistance	≥ 500MΩ

	Withstand voltage	500V (DC or AC peak value)

	Electrical angle	330° ± 5 °

Environment Characteristics	Rated power	1W ( 70 °C )
	Temperature range	-55°C~+125°C

	TCR	±100×10-6/°C
	Temperature shock	ΔR≤±3%R

	Collision (390m/S2, 4000 times)	ΔR≤±1%R

	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, Electrical break≤100μS

	Operation lowtemperature (-55°C,40h)	ΔR≤±3%R,starting torque≤20mN.m
	Moisture proof(GJB306A-96ways106 ,not suitable for 7a.7b)	ΔR≤±3%R,Insulation Resistance≥100MΩ
	Climate category (IEC68-2-2)
		ΔR≤± 3%R,peak noise≤500Ω,starting torque≤20mN.m
	Electrical endurance (1W, 1000h)	ΔR≤± 3%R

	Rotational life (10000 cycles)
		ΔR≤±3%R, peak noise ≤ 500Ω,starting torque≤10mN.m
	Steady damp heat (IEC68-2-3, Ca, 96h)
		ΔR≤± 3%R, Insulation Resistance≥100MΩ,starting torque ≤20mN.m
Physical Characteristics	Total mechanical travel	360° ,330°
	Strating torque	≤8mN.m
	Stopper torque	≥ 500mN.

Advantage of choosing our company and products:

Sichuan qixing electronic co. ltd. is a technical factory of mainly manufacturing and develop high power resistor,wire-wound potentiometer,metal glass glaze potentiometer,carbon film potentiometer,precision parts and AC power noise filter.
The established maxim of our company is technical innovation, keeping improvement and meet customer demands.
Rich and varied goods is your selection guide. High quality is absolutely the credibility of the guarantee. Reasonable price is your final choice.
Our products is also used in the field of the military industry .Our factory are continuing to offer a great deal of qualified goods in the field of the military industry .
