Bonens 8mm Knob Shaft Potentiometer 10K 1K 5K

Specifications

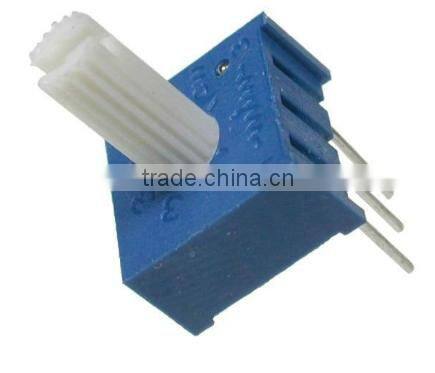

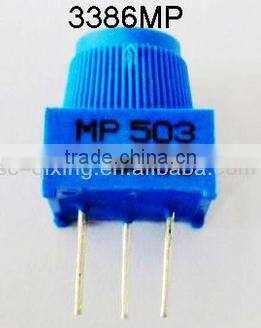

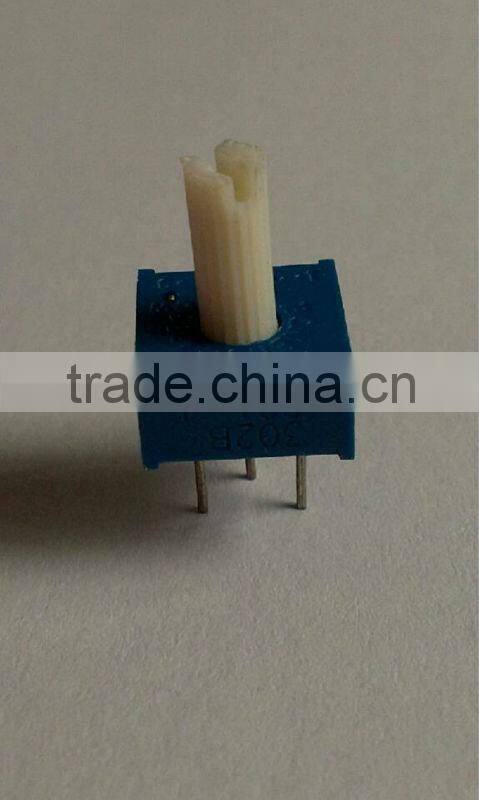

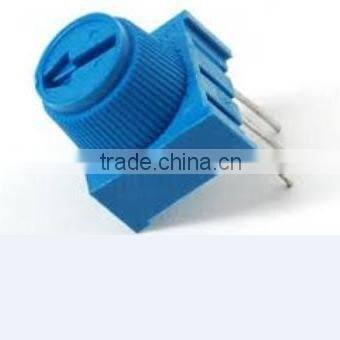

Single turn trimmer potentiometer with 8mm knob

  Single turn trimmer potentiometer with 8mm knob

Function of  Single turn trimmer potentiometer with 8mm knob :

A potentiometer is a manually adjustable electrical resistor that uses three terminals. It is a simple electro-mechanical transducer. It converts rotary or linear motion from the operator into a change of resistance, and this change is used to control the levels of output. It is sometimes known as POTS.Potentiometer is an adjustable electronic components,which plays main roles in the circuit on the following several aspects

1.As a voltage divider:Potentiometer is a continuously adjustable resistor. When potetiometer’s stem or sliding handle move on the resistor body, the output of the potentiometer can be obtained output of voltage with certain related to the potentiometer applied voltage and movable arm or travel .

2.As a variable resistor :When potentiometer is used as a rheostat, it should be taken into two end devices.Thus within the limited travel range of potentiometer,which can be gotten smooth, continuously changable resistance value.

3.As the current controller :Potentiometer is used as the current controller, one of the designate current output must be sliding contact terminal.

4.Application of potentiometers

•Linear displacement measurement

•Rotary displacement measurement

•Volume control

•Brightness control

•Liquid level measurements using floats

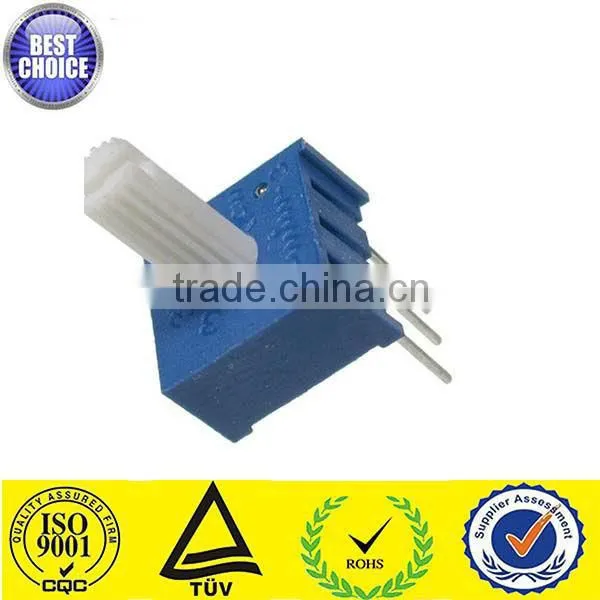

Some  of our certificates

Advantage of our company andpotentiometers:

1. Sichuan qixing electronic co. ltd. is a technical factory of mainly manufacturing and develop high power resistor,wire-wound potentiometer,metal glass glaze potentiometer,carbon film potentiometer,precision parts and AC power noise filter.
2. The established maxim of our company is technical innovation, keeping improvement and meet customer demands.
3. Rich and varied goods is your selection guide. High quality is absolutely the credibility of the guarantee. Reasonable price is your final choice.
4. Our products is also used in the field of the military industry .Our factory are continuing to offer a great deal of qualified goods in the field of the military industry .

Potentiomter applications:

The potentiometer Work Flow:
