Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > Trimmer Potentiometer 10K(103) 50K(503) Ohm

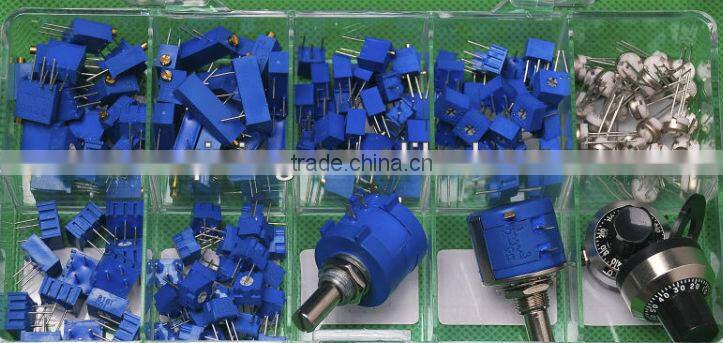

Trimmer Potentiometer 10K(103) 50K(503) Ohm
US$ 0.05 - 0.09
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
BONENS
Model Number:
3386P
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PotentiometersUS$ 0.05 - 0.1MOQ: 1 Piece -
8mm Linear Trimmer Potentiometers 3386TUS$ 1 - 1.5MOQ: 1 Piece
-
1K 5K 10K 50K Single-turn Trimmer Potentiometers 3362RUS$ 0.33 - 0.6MOQ: 1000 Pieces
-
1K(102) 5K(502) 10K(103) OHM Single-turn Trimmer Potentiometers 3362RNegotiableMOQ: 1 Piece
-
3362 Trimmer PotentiometerUS$ 0.055 - 0.075MOQ: 500 Pieces
Place of Origin
Sichuan, China
Brand Name
BONENS
Model Number
3386P
Type
Trimming Potentiometer
Technology
Cermet
Resistance
10ohm-5Mohm
Resistance Tolerance
+/-10%
Rated Power
0.5w
Max. Operating Voltage
500V
Operating Temperature
-55-+125
Specifications

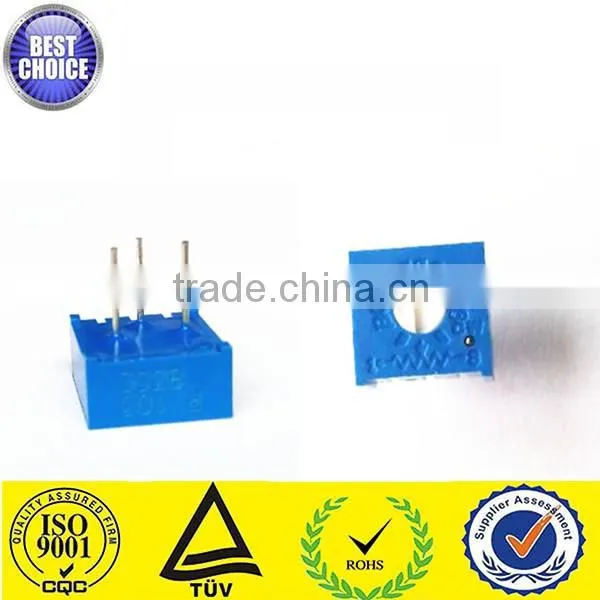

3386P Cermet Trimmer Potentiometerssingle turn
RoHS ISO compliant
fast delivery from factory of our own
welcome trial order
| |||||
| Electrical Characteristics | Range of nominal resistance | 10Ω~5MΩ | |||
| Resistance tolerance | ±10% | ||||
| Terminal resistance | ≤±1%R or 2Ω | ||||
| Contact resistance variation (CRV) | ≤±1%R or 3Ω | ||||
| Insulation resistance | ≥ 1GΩ (100V AC) | ||||
| Withstand voltage | 500V (DC or AC peak value) | ||||
| Effective electrical travel | ≥ 250 ° | ||||
| Environment Characteristics | Rated power | 0.5W ( 300V max) | |||
| Temperature range | -55°C~+125°C | ||||
| TCR | ±250×10-6/°C | ||||
| Collision (390m/S2, 4000 times) | ΔR≤±1%R | ||||
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS | ||||
| Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) | ΔR≤±2%R,ΔUab/Uac≤±2%R | ||||
| Climate category (IEC68-2-2) | ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ | ||||
| Electrical endurance (0.5W, 1000h) | ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω | ||||
| Mechanical endurance (200 cycles) | ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω | ||||
| Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ | ||||
| Physical Characteristics | Total mechanical travel | 300 ° ± 10° | |||
| Starting torque | ≤20mN.m | ||||
| Standard package | 50 pcs /tube | ||||

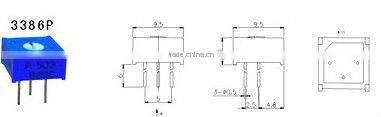

3386P Trimming Potentiometer
Please cntact me for more details:
Trademanager ID: scqx
Skype ID:
QQ: 865125858
Sichuan Qixing Electronics co.,ltd
www.sc-qixing.en.china.cn
Mobile: +86-18780289151
Tel.:+86-028-82767470
